User Manual for Draper 139044SAL Access Series E 105 x 168" Ceiling-Recessed Motorized Screen with Low Voltage Controller Click to enlarge the picture
Contents of the user manual for the Draper 139044SAL Access Series E 105
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 139044SAL Access Series E 105 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

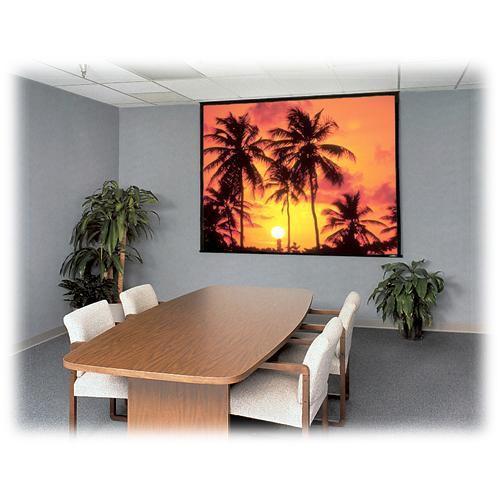

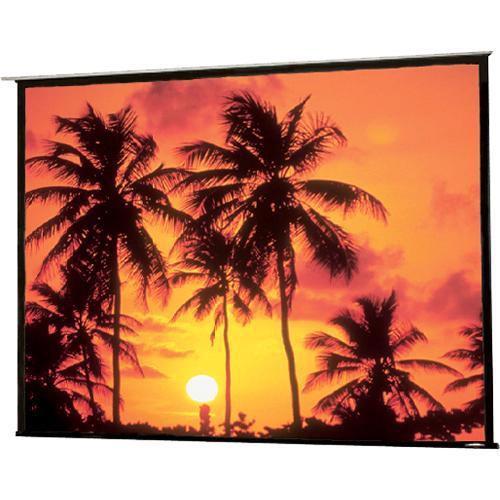

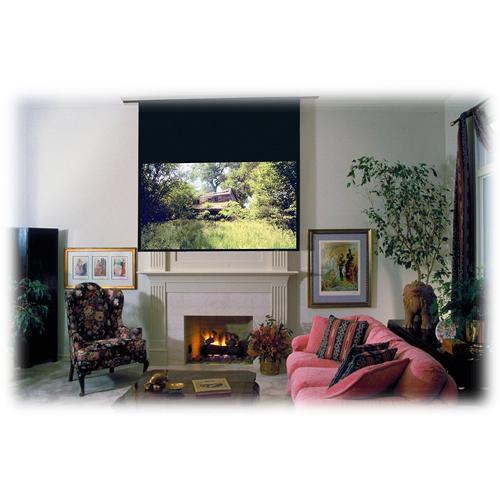

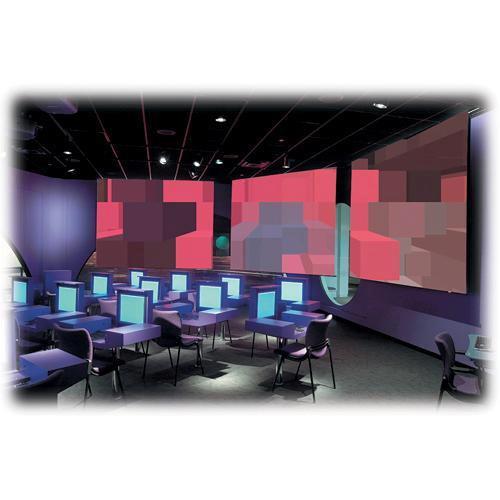

Product description The white 120V 139044SAL Access/Series E 105 x 168" Motorized Screen with Low Voltage Controller from Draper is for ceiling-recessed applications and features a UL-approved case for use in environmental air space. Additional features include ceiling trim flanges, a pre-wired junction box, and movable brackets for easy installation. The viewing surface and roller can be installed at the same time or can be added toollessly at a later date. - ClearSound White Weave XT900E Screen Surface
- Reflects uniform image over full 180° field while maintaining full acoustical transparency. Some control of ambient light is recommended. Flame and mildew resistant. Not recommended for use in sizes less than 80" wide
- Removable Bottom Closure
- The screen features a redesigned bottom closure panel with a hinge system that allows the closure panel to hang in place when opened, or it can be easily removed
- Easier Installation
- Adjustable or removable hoisting brackets are included to allow for easy lifting during installation

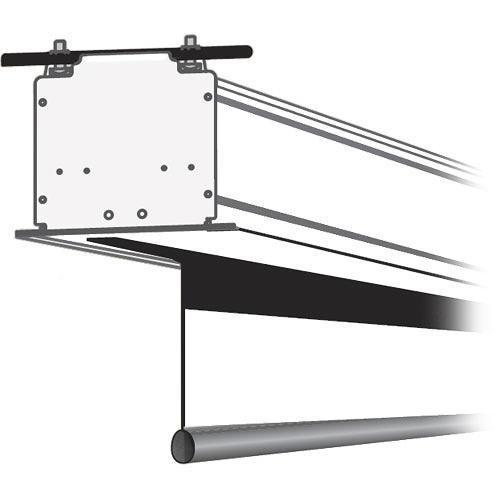

- Case Dimensions
- Features a case size of 8.1" wide by 7.2" high--plus a length of 186"--including flange and mounting brackets. Mounting brackets are adjustable to facilitate installation
- Quick Connect Wiring
- Quick connect wiring connections allows for installation of the case early and addition of the screen later
- Certifications and Rating
- Plenum rated case that is UL approved "Suitable for Use in Environmental Air Space"
- Low Voltage Controller (LVC)
- Low voltage control (LVC) enables control of the screen's motor using a third-party system, including direct connection to the projector, via a wall switch, or with integration with automation systems
In the Box Draper 139044SAL Access/Series E 105 x 168" Ceiling-Recessed Motorized Screen with Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 139044SAL Access Series E 105 x 168" Ceiling-Recessed Motorized Screen with Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 139044SAL Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Ceiling-recessed | | | | Viewing Area | 105.0 x 168.0" / 266.7 x 426.7 cm | | Diagonal | 198.0" / 502.9 cm | | | | Gain | 0.9 | | Viewing Angle | 180 degrees | | | | Motor | Standard | | Included Controls | Low voltage control |
