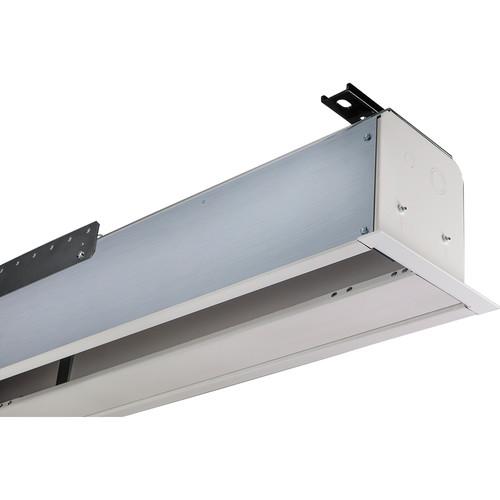

Product description The white 120V 140016L Access FIT/Series V 60 x 80" Ceiling-Recessed Motorized Screen with Low Voltage Controller from Draper repackages the features of the Access line, in housing that is less than 6" tall. With a smaller footprint, it is optimized to fit into tight openings above the ceiling where larger ceiling-recessed models won't fit. With Access FIT/Series V, you can install the case during the "dirty" phase of the construction process and keep the screen safe until you install the projector. The screen (motor-in-roller and attached viewing surface) installs quickly with preset latching roller brackets and electrical pin connectors. This eliminates job site damage.
Matt White XT1000V Screen Surface
- Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. This surface is GREENGUARD Children and Schools certified
Bottom Closure Panel
- The redesigned bottom closure panel and hinge system allows the closure panel to hang in place when opened, or it can be removed.
- Adjustable or removable hoisting brackets are included to allow for easy lifting during installation
- Designed for ceiling installation where space is limited, the case dimensions are 7.75" wide by 5.7" high--plus 107" in length--including flange and mounting brackets
Flat White Finish
- The casing's paint finish is flat to appear similar to typical ceiling grid flat colors
Quick Connect Wiring
- Quick connect wiring connections allow for installation of the case early and addition of the screen later
- UL approved as "Suitable for use in environmental air space"
In the Box Draper 140016L Access FIT/Series V 60 x 80" Ceiling-Recessed Motorized Screen with Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
- Low Voltage Controller (LVC)
- Low voltage control (LVC) enables control of the screen's motor using a third-party system, including direct connection to the projector, via a wall switch, or with integration with automation systems
Upload User Manual
Have you got an user manual for the Draper 140016L Access FIT Series V 60 x 80" Ceiling-Recessed Motorized Screen with Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Draper 140016L Specs
| Front/Rear Projection || Front |
| Aspect Ratio || 4:3 |
| Style || Ceiling-recessed |
| Viewing Area || 60.0 x 80.0" / 152.4 x 203.2 cm |
| Diagonal || 100.0" / 254.0 cm |
| Gain || 1.0 |
| Viewing Angle || 180 degrees |
| Tensioned || Yes |
| Motor || Standard |
| Included Controls || Low voltage control |
| Finish || Aluminum |
| Length || 107.0" / 271.8 cm |
