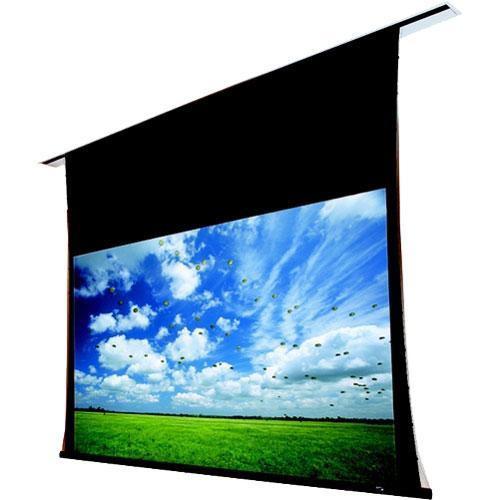

Product description The white 120V 140021SDU Access/Series V 118 x 158" Ceiling-Recessed Screen with LVC-IV Low Voltage Controller from Draper is a tab-tensioned screen for ceiling-recessed installation. It is designed to enable you to install the case during the "dirty" phase of the construction process and keep the screen safe until you install the projector. The screen (motor-in-roller and attached viewing surface) installs quickly with preset latching roller brackets and electrical pin connectors. This eliminates job site damage. - ClearSound Perf XT900V Screen Surface
- All surfaces in the ClearSound family are acoustically transparent, featuring a flexible matte white perforated surface. For this screen, reasonable control of ambient light is recommended and it is not recommended for use in sizes less than 80" wide or viewing from less than 20' from screen. For shorter viewing distances, ClearSound NanoPerf XT800V is recommended instead. The screen provides a gain of 0.9 and a 180° viewing cone

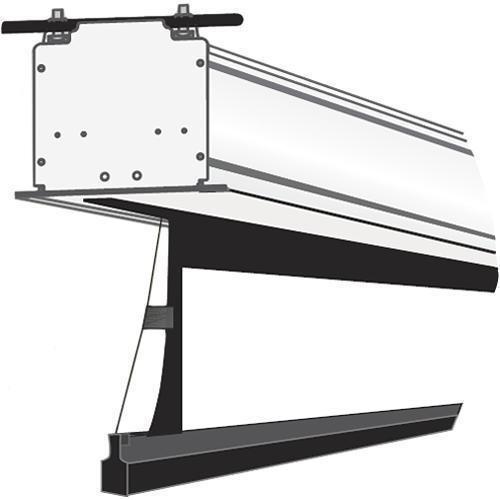

- Bottom Closure Panel
- The redesigned bottom closure panel and hinge system allows the closure panel to hang in place when opened, or it can be removed.
- Designed for Limited Space Installations
- The case features dimensions of 8.1 x 7.4", including flange and mounting brackets--plus a length of 188"--to help ensure installation, even with limited above-ceiling space
- 12" Drop Standard
- 12" of extra drop is standard, helping ensure proper viewing height even in rooms with high ceilings
- Tab Tensioning
- Draper's tab-tensioning system is cut from a single piece and RF welded
- Ease of Installation
-
- Adjustable or removable hoisting brackets are included to allow for easy lifting during installation
- Mounting brackets are adjustable to facilitate installation
- Quick connect wiring connections allows for installation of the case early and addition of the screen later
- Motor-in-Roller
- The motor-in-roller design helps assure quiet and smooth operation
- Certifications
-
- Plenum rated
- UL approved as "Suitable for use in environmental air space"
- LVC-IV Low Voltage Control Module
- The LVC-IV low voltage control is used to control the screen's motor using a third-party system in a variety of ways: with a low voltage wall switch, "dry" contact closure, RF (radio frequency), IR (infrared), serial communication (such as RS-232), or low voltage relay (3-28V). It works with the separately available LVC-S, WRT, IRT/R, SP-KSM, and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, features three compartments, and is UL Listed. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable, and a user-serviceable 3.5A fuse
In the Box Draper 140021SDU Access/Series V 118 x 158" Ceiling-Recessed Screen with LVC-IV Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 140021SDU Access Series V 118 x 158" Ceiling-Recessed Screen with LVC-IV Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 140021SDU Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 4:3 | | Style | Ceiling-recessed | | | | Viewing Area | 118.0 x 158.0" / 299.7 x 401.3 cm | | Diagonal | 200.0" / 508.0 cm | | | | Gain | 0.9 | | Viewing Angle | 180 degrees | | | | Motor | Standard | | Included Controls | Low voltage control |
