User Manual for Draper 140032SDL Access Series V 90 x 160" Ceiling-Recessed Screen with Low Voltage Controller Click to enlarge the picture
Contents of the user manual for the Draper 140032SDL Access Series V 90
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
 |
User manual for the Draper 140032SDL Access Series V 90 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

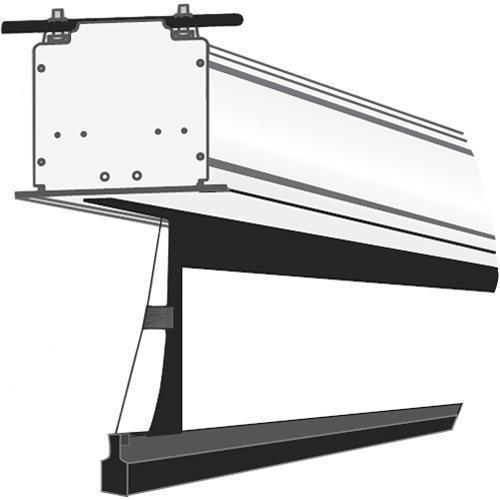

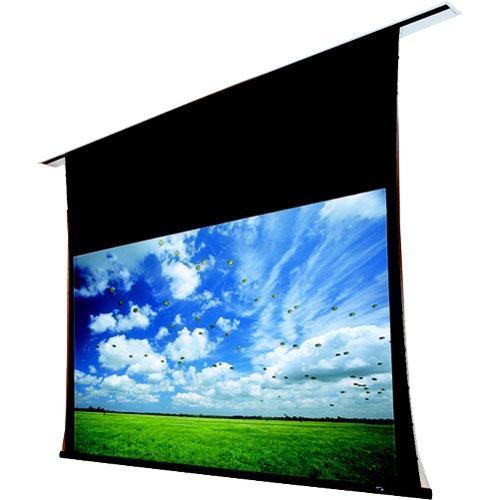

Product description The white 120V 140032SDL Access/Series V 90 x 160" Ceiling-Recessed Screen with Low Voltage Controller from Draper is a tab-tensioned screen for ceiling-recessed installation. It is designed to enable you to install the case during the "dirty" phase of the construction process and keep the screen safe until you install the projector. The screen (motor-in-roller and attached viewing surface) installs quickly with preset latching roller brackets and electrical pin connectors. This eliminates job site damage. - ClearSound Perf XT900V Screen Surface
- All surfaces in the ClearSound family are acoustically transparent, featuring a flexible matte white perforated surface. For this screen, reasonable control of ambient light is recommended and it is not recommended for use in sizes less than 80" wide or viewing from less than 20' from screen. For shorter viewing distances, ClearSound NanoPerf XT800V is recommended instead. The screen provides a gain of 0.9 and a 180° viewing cone
- Bottom Closure Panel
- The redesigned bottom closure panel and hinge system allows the closure panel to hang in place when opened, or it can be removed.
- Designed for Limited Space Installations
- The case features dimensions of 8.1 x 7.4", including flange and mounting brackets--plus a length of 187"--to help ensure installation, even with limited above ceiling space
- 12" Drop Standard
- 12" of extra drop is standard, helping ensure proper viewing height even in rooms with high ceilings
- Tab Tensioning
- Draper's tab-tensioning system is cut from a single piece and RF welded
- Ease of Installation
-
- Adjustable or removable hoisting brackets are included to allow for easy lifting during installation
- Mounting brackets are adjustable to facilitate installation
- Quick connect wiring connections allows for installation of the case early and addition of the screen later
- Motor-in-Roller
- The motor-in-roller design helps assure quiet and smooth operation
- Certifications
-
- Plenum rated
- UL approved as "Suitable for use in environmental air space"
- Low Voltage Controller (LVC)
- Low voltage control (LVC) enables control of the screen's motor using a third-party system, including direct connection to the projector, via a wall switch, or with integration with automation systems
In the Box Draper 140032SDL Access/Series V 90 x 160" Ceiling-Recessed Screen with Low Voltage Controller (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 140032SDL Access Series V 90 x 160" Ceiling-Recessed Screen with Low Voltage Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 140032SDL Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 90.0 x 160.0" / 228.6 x 406.4 cm | | Diagonal | 184.0" / 467.4 cm | | | | Gain | 0.9 | | Viewing Angle | 180 degrees | | | | Motor | Standard | | Included Controls | Low voltage control |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
