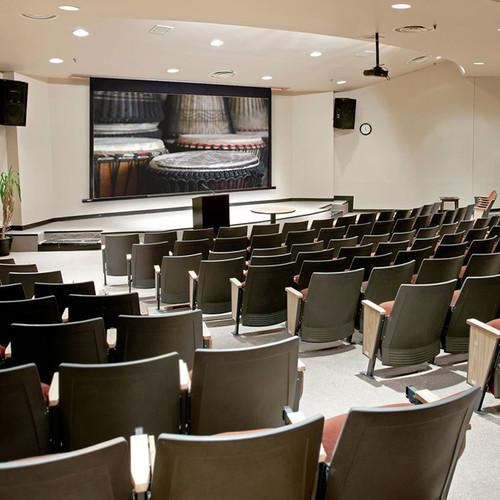

User Manual for Draper 144009 Ultimate Access XL Series V 106 x 188" Motorized Screen Click to enlarge the picture
Contents of the user manual for the Draper 144009 Ultimate Access XL Series
- Product category: Electric Screens (Wide Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Wide Formats)
|
User manual for the Draper 144009 Ultimate Access XL Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The 120V 144009 Ultimate Access XL/Series V 106 x 188" Motorized Screen from Draper is a tab-tensioned electric projection screen for ceiling-recessed installation. The series carries over improvements made to the Access case, including the same re-engineered Access bottom closure panel that is easier to attach, and has an improved overall engagement with the screen housing. An improved "T" bracket engagement allows the panel to hinge downward for service, eliminating the need to make extra trips up and down the ladder carrying the closure.
The screen features an independently motorized ceiling closure. In its closed position, the motorized closure forms a solid bottom panel giving the ceiling a clean appearance. At the touch of a switch or wireless transmitter, the door of the Ultimate Access/Series V opens into the case before the viewing surface descends into the room. Your audience will notice its precision timing and quiet, fluid movement. - Matt White XT1000E Screen Surface
- Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally, it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
Key Features - Includes removable hoisting brackets to make it easier to use block and tackle or a winch to lift the screen out of the shipping carton and into the final mounting location
- Mounting brackets are adjustable to facilitate installation
- Black borders on all four sides and 12" of black drop at top come standard
- White case is standard, black is optional upon request
- Independently motorized ceiling closure opens into the case
- Left hand motor location only
In the Box Draper 144009 Ultimate Access XL/Series V 106 x 188" Motorized Screen (120V) 3-Position Wall Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 144009 Ultimate Access XL Series V 106 x 188" Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 144009 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 106.0 x 188.0" / 269.2 x 477.5 cm | | Diagonal | 220.0" / 558.8 cm | | Overall HxW | 111.0 x 192.0" / 281.9 x 487.7 cm | | | | Gain | 1.0 | | Viewing Angle | 180 degrees | | Masking | All four sides | | | | Motor | Standard | | Included Controls | Wall switch |
