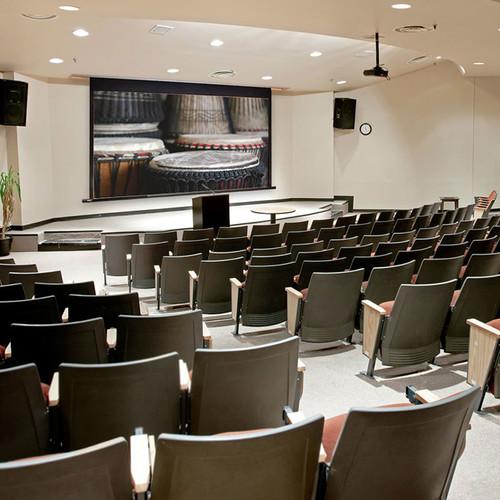

User Manual for Draper 144026EC Ultimate Access XL Series E 96 x 240" Motorized Screen Click to enlarge the picture
Contents of the user manual for the Draper 144026EC Ultimate Access XL Series
- Product category: Electric Screens (Square & 4:3 Formats) Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Electric Screens (Square & 4:3 Formats)
|
User manual for the Draper 144026EC Ultimate Access XL Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The 144026EC Ultimate Access XL/Series E 96 x 240" Motorized Screen (120V) from Draper replaces the Signature/Series E version to bring a number of improvements. These include the re-engineered Access bottom closure panel, which is easier to attach, and has an improved overall engagement with the screen housing. The screen also has an independently motorized ceiling closure. In its closed position, the motorized closure forms a solid bottom panel, giving the ceiling a clean appearance. At the touch of a switch or wireless transmitter, the door of the Ultimate Access/Series E opens into the case before the viewing surface descends into the room.
The entire closure extends down as required for screen installation or adjustment. An improved "T" bracket engagement allows the panel to hinge downward for service, eliminating the need to make extra trips up and down the ladder carrying the closure. It features removable hoisting brackets to make it easier to use block and tackle or a winch to lift the screen out of the shipping carton and into the final mounting location. - Contrast Grey XH800E Screen Surface
- A smooth grey surface designed to accommodate high resolution images and enhance contrast and black levels in the projected image. It is recommended for use with moderate and high output digital projectors, and is suitable for use where ambient light is present. It provides a 180° viewing cone. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
Key Features - Includes removable hoisting brackets to make it easier to use block and tackle or a winch to lift the screen out of the shipping carton and into the final mounting location
- Mounting brackets are adjustable to facilitate installation
- White case is standard, black is optional upon request
- Independently motorized ceiling closure opens into the case
- Left hand motor location only
In the Box Draper 144026EC Ultimate Access XL/Series E 96 x 240" Motorized Screen (120V) Wall Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 144026EC Ultimate Access XL Series E 96 x 240" Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 144026EC Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 2.35:1 | | Style | Ceiling-recessed | | | | Viewing Area | 96.0 x 240.0" / 243.8 x 609.6 cm | | Diagonal | 258.5" / 656.6 cm | | Overall HxW | 216.0 x 216.0" / 548.6 x 548.6 cm | | | | Gain | 0.8 | | Viewing Angle | 180 degrees | | Masking | All four sides | | | | Motor | Standard | | Included Controls | Wall switch |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
