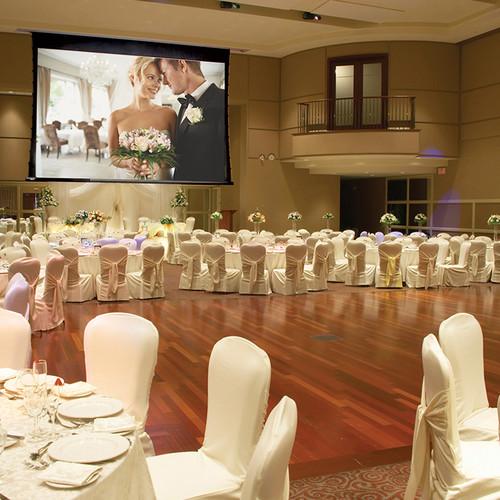

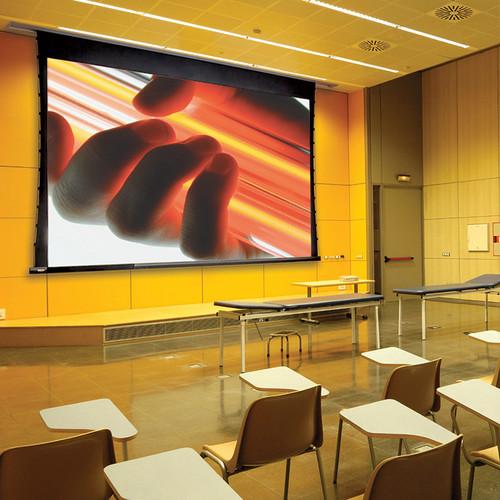

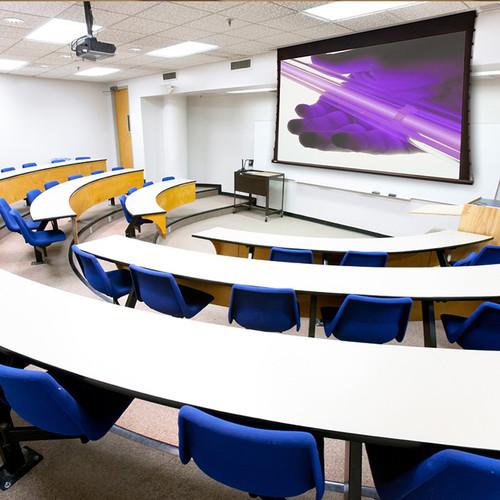

Product description The 120V 145010FN Ultimate Access XL/Series V 108 x 192" Motorized Screen from Draper is a tab-tensioned electric projection screen for ceiling-recessed installation. The series carries over improvements made to the Access case, including the same re-engineered Access bottom closure panel that is easier to attach, and has an improved overall engagement with the screen housing. An improved "T" bracket engagement allows the panel to hinge downward for service, eliminating the need to make extra trips up and down the ladder carrying the closure.
The screen features an independently motorized ceiling closure. In its closed position, the motorized closure forms a solid bottom panel giving the ceiling a clean appearance. At the touch of a switch or wireless transmitter, the door of the Ultimate Access/Series V opens into the case before the viewing surface descends into the room. Your audience will notice its precision timing and quiet, fluid movement. - Pure White XT1300V Screen Surface
- Draper Pure White offers a 30% boost in brightness over a traditional matte white surface while still maintaining 180° viewing (90° half angle). Color does not shift when viewed from any angle, and the surface provides very good white field uniformity
Key Features - Includes removable hoisting brackets to make it easier to use block and tackle or a winch to lift the screen out of the shipping carton and into the final mounting location
- Mounting brackets are adjustable to facilitate installation
- Black borders on all four sides and 12" of black drop at top come standard
- White case is standard, black is optional upon request
- Independently motorized ceiling closure opens into the case
- Left hand motor location only
In the Box Draper 145010FN Ultimate Access XL/Series V 108 x 192" Motorized Screen (120V) 3-Position Wall Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 145010FN Ultimate Access XL Series V 108 x 192" Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 145010FN Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 108.0 x 192.0" / 274.3 x 487.7 cm | | Diagonal | 220.0" / 558.8 cm | | | | Gain | 1.3 | | Viewing Angle | 180 degrees | | Masking | All four sides | | | | Motor | Standard | | Included Controls | Wall switch |
