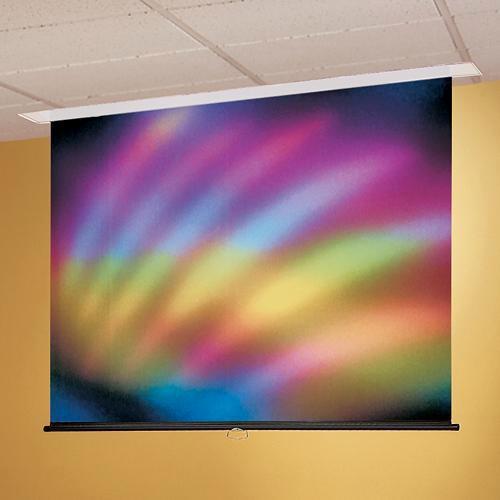

User Manual for Draper 197011 Access Series M 108 x 144" Ceiling-Recessed Manual Screen Click to enlarge the picture
Contents of the user manual for the Draper 197011 Access Series M 108
- Product category: Manual Screens Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Manual Screens
|
User manual for the Draper 197011 Access Series M 108 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The white 197011 Access/Series M 108 x 144" Ceiling-Recessed Manual Screen from Draper is designed to accommodate larger screen sizes, compared to the Access FIT/Series M. You can install the case during the "dirty" phase of the construction process and keep the screen safe until you install the projector. The screen (spring-roller and attached viewing surface) installs quickly with preset latching roller brackets. This eliminates job site damage. - Matt White XT1000E Screen Surface
- Considered the most versatile, a matt white surface diffuses projected light in all directions, so the image can be seen from any angle. Additionally, it is designed to provide an accurate color rendition due to its smooth, non-embossed surface. It features unity gain with a panoramic 180° cone, ideal for controlled lighting environments. Black backing on the other side of the viewing surface helps prevent light penetration from behind the screen. This surface is GREENGUARD Children and Schools certified
- Bottom Closure Panel
- The redesigned bottom closure panel and hinge system allows the closure panel to hang in place when opened, or it can be removed. Adjustable or removable hoisting brackets are included to allow for easy lifting during installation
- Case Dimensions
- The case dimensions are 8.1" wide by 7.2" high--plus 150" in length--including flange and mounting brackets
In the Box Draper 197011 Access/Series M 108 x 144" Ceiling-Recessed Manual Screen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 197011 Access Series M 108 x 144" Ceiling-Recessed Manual Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 197011 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 4:3 | | Style | Ceiling-recessed | | | | Viewing Area | 108 x 144" / 274.3 x 365.8 cm | | Diagonal | 180" / 457.2 cm | | | | Gain | 1.0 | | Viewing Angle | 180° | | Screen Surface | Matt White XT1000E | | | | Length | 150" / 381 cm | | Finish | Steel | | | | Box Dimensions (LxWxH) | 160.0 x 12.0 x 11.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
