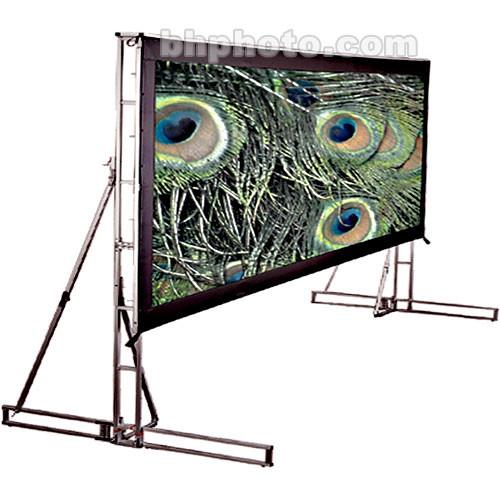

User Manual for Draper 221050 Truss-Style Cinefold Manual Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 221050 Truss-Style Cinefold Manual Projection
- Product category: Folding Screens Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Folding Screens
|
User manual for the Draper 221050 Truss-Style Cinefold Manual Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The Draper 10 x 18' Truss-Style Cinefold Manual Projection Screen makes Point-of-Purchase displays a breeze. This is an easy-to-use system that sets up and breaks down in no time - and with a minimum of effort. Complete with a wheeled case, this screen is a perfect choice for anyone who travels and needs a durable, rugged, and simple screen for all kinds of presentations. This modular screen features an extremely rigid frame that contains 1" square hard-alloy aluminum tubing. The tubing is arc welded and forms a very sturdy 6" wide truss. The piano hinges used to secure the system are all 6" wide and reinforced by two hinge latches as well as Draper's exclusive Handy Cranks. The coating is scratch-resistant and will provide years of clean, reliable service.The Cinefold comes with anti-sway bars to reinforce its already stable frame. The screen is also supplied with stiffeners that keep the screen firm on its horizontal axis. The tubular aluminum frame provides strength as well as being easy to work with. It is available with either a Matte White (front), Cineflex (rear) and Uniflex (front or rear) projection surface. The optional Dress Kit gives you even more flexibility by providing a way to finish the professional appearance of your presentation. It is also a good way to hid your case, cables and anything else you do not wish your audience to view. Dress Kits also help your audience focus on the screen and not be distracted by any ambient light. Note: All Truss-Style Cinefolds include heavy-duty legs and anti-sway stabilizers - Extra rigid truss-style frame
- Frames and legs constructed of parallel sections of 1" square anodized aluminum tubing, arc welded to form a 6" wide truss
- Special frame stiffener is attached at every horizontal hinge
- Furnished with 6" wide black borders to completely conceal truss frame.
- Assembly is quick and easy with handy cranks
- Includes truss frame and legs, snap-on-surface with protective soft case, heavy-duty leg stabilizers and frame stiffeners
- Formats available for NTSC or HDTV video or general Square (Audio-Visual) use
- Includes rugged, molded polyethylene carrying cases with wheels
UPC: 641092142027 In the Box Draper 221050 Truss-Style Cinefold Manual Projection Screen (10 x 18') Frame Screen Surface Anti-Sway Stabilizers Frame Stiffeners Wheeled Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 221050 Truss-Style Cinefold Manual Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 221050 Specs | | | Style | Cinefold | | Front/Rear Projection | Front | | Mount | Free Standing | | Finish | Matte White | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 11' x 19' (3.4 x 5.8 m) | | Image Size | 10 x 18' (3.0 x 5.5 m) | | Diagonal | 20'5" (6.2 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Optional Dress Kit | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Silver powder coat | | Material | Aluminum tubing; steel parts are cadmium plated | | Length | Not Applicable | | | | Shipping Weight | 240 lb (109kg) | | | | Package Weight | 240.0 lb | | Box Dimensions (LxWxH) | 85.0 x 45.0 x 16.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
