User Manual for Draper 252181 Clarion Fixed Frame Projection Screen with Black Vel-Tex Frame Click to enlarge the picture
Contents of the user manual for the Draper 252181 Clarion Fixed Frame Projection
- Product category: Fixed Frame Screens Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Fixed Frame Screens
 |
User manual for the Draper 252181 Clarion Fixed Frame Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

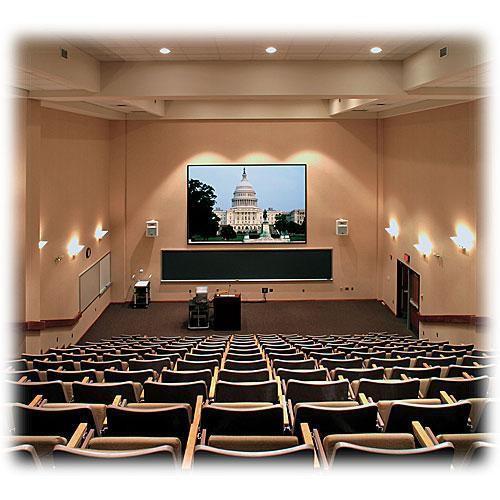

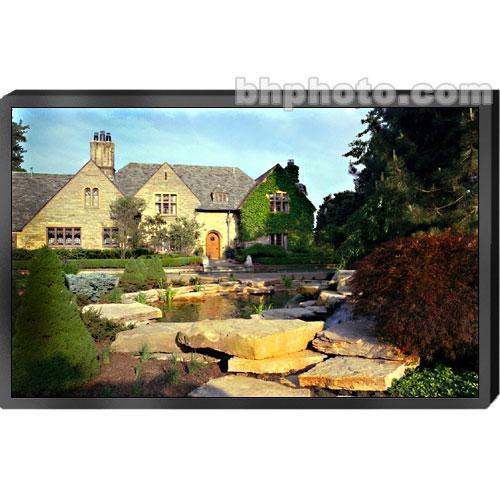

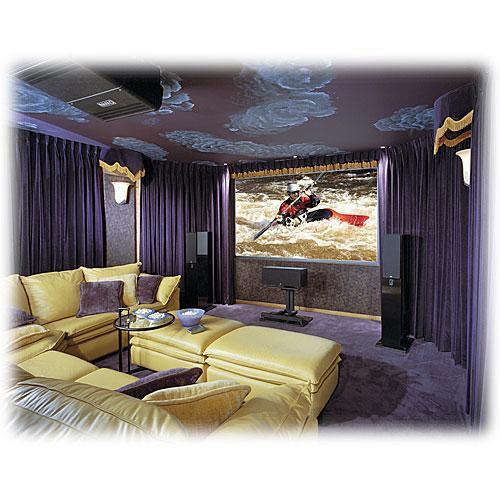

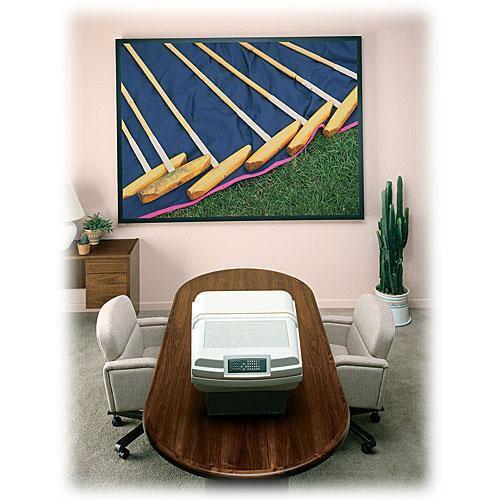

Product description Improve your image with a Draper 65 x 153" Clarion Fixed Frame Projection Screen with Black Vel-Tex Frame. The Clarion features a perfectly flat viewing surface which translates into perfect picture quality. The Clarion's viewing surface is stretched tightly over a self-concealing aluminum frame, which also forms an attractive border, for a clean, theater-like appearance. The corners of the screen are mitered for a stylish and more professional appearance. It also provides for a stronger and easier to assemble frame.The Clarion is good for corporate or educational needs, and will give you many years of even illumination - edge to edge brightness and sharpness. The included mounting brackets make it easy to mount to your wall. And, with the optional Eclipse Masking System, the Clarion can easily switch between two projection formats - saving you the trouble of having to buy two separate screen systems. The Vel-Tex fabric that surrounds the screen is a velvet-like material that absorbs much of the ambient light that may fall on the surface. This helps keep your audience focused on the image. - Viewing surface is flat, and that means perfect picture quality

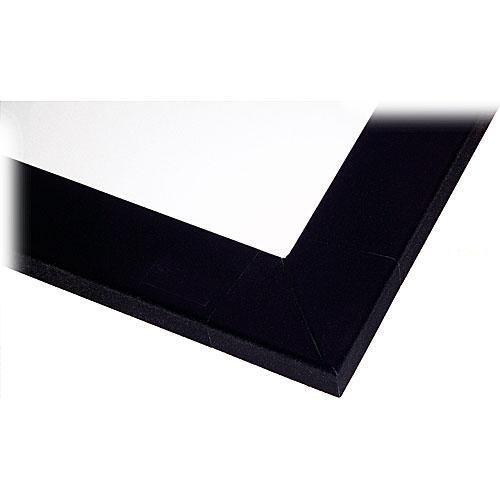

- Mitered corners for a better appearance and stronger frame
- Viewing surface is stretched tightly over a structural aluminum frame, which is concealed by an attractive black trim frame, for a clean, theatre-like appearance
- Switch instantly between two projection formats with the optional Eclipse Masking System
- Z-Clip wall mounting brackets included, to simplify installation
- Standard black frame covered with velvety black Vel-Tex, which virtually eliminates all reflections on the frame
- Depending on surface, available in sizes through 10 x 10', 108 x 144", or 15' NTSC
In the Box Draper 252181 Clarion Fixed Frame Projection Screen with Black Vel-Tex Frame (65 x 153") Wall Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 252181 Clarion Fixed Frame Projection Screen with Black Vel-Tex Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 252181 Specs | | | Style | Clarion with black Vel-Tex frame | | Front/Rear Projection | Front | | Mount | Wall | | Finish | Hi Def Grey; Surface attaches to extruded frame using extruded plastic strip, eliminating pulling and puckering inherent to fabric attachment utilizing snaps | | Tension Control | Permanently tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 69 x 156.75" (1.8 x 4.0 m) | | Image Size | 65 x 153" (1.7 x 3.9 m) | | Diagonal | 166" (4.2 m) | | Format | CinemaScope | | Aspect Ratio | 2.32:1 | | Masking Options | Optional Eclipse Masking system - A motorized masking system that mounts to the wall (Eliminates the need to buy two projection screens) Optional controls: Single Station Control (SS-1R)
Multiple Station Controls (MS-3R/MS-4R)
Low Voltage Switch (LVC-S)
Infrared Remote Control (IRT/R)
Radio Frequency Remote Control (WRT/R) | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Black | | Material | Extruded aluminum frame with injection molded corners forms 2" border | | Length | Not Specified by Manufacturer | | | | Shipping Weight | 63 lbs (28.6 kg) | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 165.0 x 9.0 x 9.0" |
