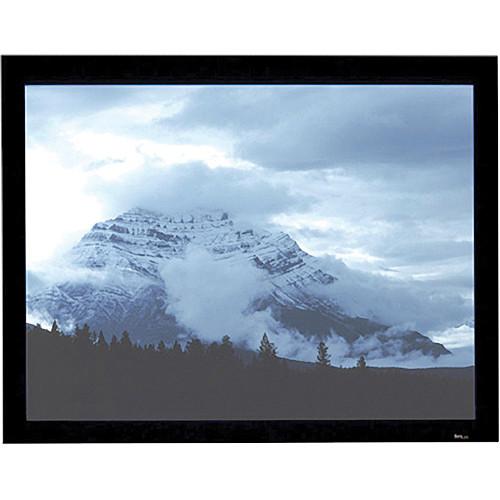

User Manual for Draper 253316 Onyx Fixed Frame Projection Screen Click to enlarge the picture
Contents of the user manual for the Draper 253316 Onyx Fixed Frame Projection
- Product category: Fixed Frame Screens Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Fixed Frame Screens
 |
User manual for the Draper 253316 Onyx Fixed Frame Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

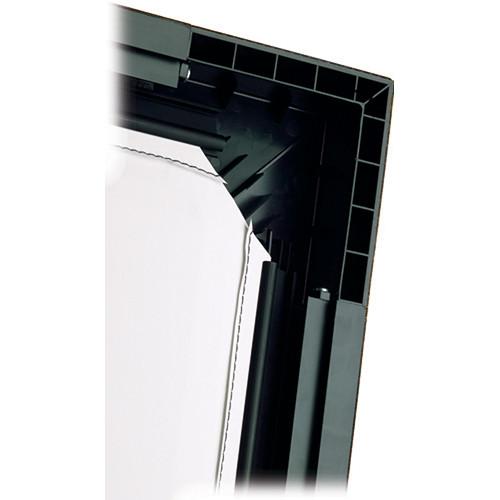

Product description The Onyx 84 x 84" Fixed Frame Projection Screen fits together with a minimum of effort in just a few minutes. The aluminum frame slips together into the injection molded corners making a tight and tensioned fit. The frame is made from rugged extruded aluminum and assembles with simple to use tools supplied by Draper. The frame features a healthy 4" bevel on all sides that makes for a handsome border. Mitered edges give it an additional touch of class. Tension on the screen is equal all around producing a perfectly flat projection surface and is adjustable up to 1.5". The corners of the screen are mitered for a stylish and more professional appearance. It also provides for a stronger and easier to assemble frame.
Draper is your first choice when it comes to projection equipment. It's a name you can trust with a reputation unmatched in audio-visual equipment. - Mitered corners for a better appearance and stronger frame
- Assembles in about 10 minutes
- Front or rear projection surfaces available

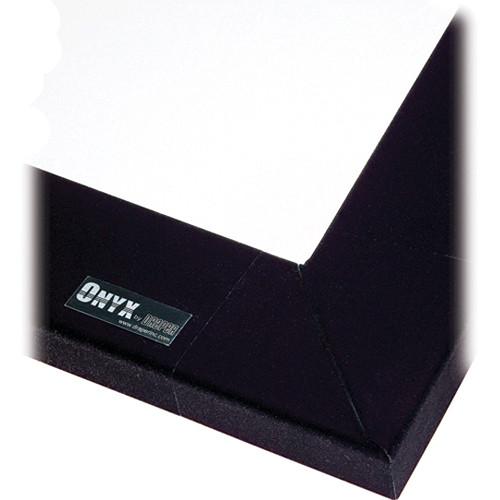

- The 4" wide beveled, extruded aluminum frame interconnects on site with one simple hand tool that Draper provides
- Each side piece slips and fits tightly into injection molded plastic corners, forming perfectly mitered edges
- A radical new approach to fabric attachment will amaze even the toughest of critics
- There are no snaps. Uniform tension is applied to the entire surface area, so the surface is perfectly flat
- Unique fabric retention system enables you to adjust the surface tension up to 1.5", both vertically and horizontally in increments of approximately 3/8" in just seconds, without tools
- Frame Finishes: Black aluminum is standard. Add optional velvety black textile, Vel-Tex, to eliminate reflections.
- Depending on surface, available in sizes through 20 x 20'
In the Box Draper 253316 Onyx Fixed Frame Projection Screen (84 x 84") Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper 253316 Onyx Fixed Frame Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 253316 Specs | | | Style | Onyx | | Front/Rear Projection | Rear | | Mount | Fixed Frame Wall | | Finish | Cineflex | | Tension Control | Permanently Tensioned | | Keystone Control | None | | | | Overall Size | 92 x 92" (2.3 x 2.3 m) | | Image Size | 84 x 84" (2.1 x 2.1 m) | | Diagonal | 119" (3 m) | | Format | Square/Audio-Visual | | Aspect Ratio | 1:1 | | Masking Options | Optional velvety black Vel-Tex to eliminate reflections | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Black | | Material | Extruded aluminum | | Length | Not Specified by Manufacturer | | | | Shipping Weight | 52 lb (23.5kg) | | | | Package Weight | 57.0 lb | | Box Dimensions (LxWxH) | 111.0 x 9.0 x 9.0" |
