Draper 77.5 x 138.5" 16:9 Ultimate

Search your instruction manual in PDF to download

User Manual for Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Surface

Click to enlarge the picture
Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Surface Contents of the user manual for the Draper 77.5 x 138.5" 16:9 Ultimate
  • Product category: Folding Screens Draper
  • Brand: Draper
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Draper Folding Screens

Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Surface Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Surface Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Surface
User manual for the Draper 77.5 x 138.5" 16:9 Ultimate contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Draper product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!



Product description

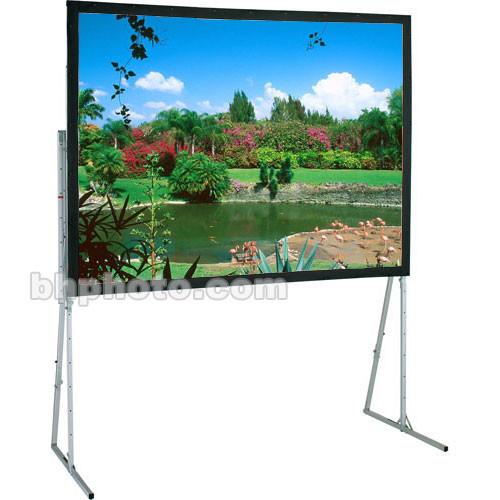

The Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Projection Surface is manufactured with CNC machined components. The screen itself features a CineFlex CH1200V finish which means it has a controlled viewing cone (half brightness @ approx. 30-60°), high contrast for environments with reasonable levels of ambient light, and a gain of 1.2. The Ultimate Screen is a useful addition to a school or business that requires a reliable and easy-to-use screen without a permanent installation. The heavy duty wheeled case is made from polyethylene and can be used for travel.The system is easy to use, implementing Draper's locking latches which make set up and break down simple. These latches hold the fabric firmly in place and give the screen its rigidity. In addition, the latches are internal and designed to fill the entire tube giving them additional protection.
  • The screen is manufactured with CNC components.
  • The frame is comprised of anodized 1.25" x .070 wall aluminum tubing.

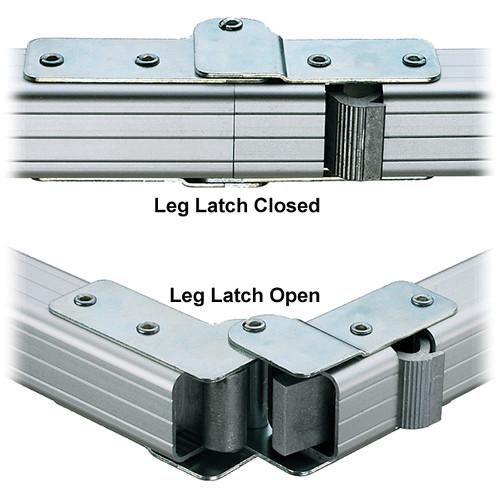

  • Draper's latches are designed for ease of operation and long life. The locking mortise latches bite down when the surface is attached, increasing the rigidity of the frame.
  • Latch parts are internal for better protection and they completely fill the tube for improved strength. The resilient latch retention spring is captured and constantly flexed so that it cannot be dislodged.
  • Both front and rear surfaces have square corners.
  • The Ultimate Folding Screen comes packed in Draper's heavy duty, molded polyethylene wheeled carrying case.
  • Dress Kits are optionally available.
  • Borders are electronically welded using PVC material that provides straighter, cleaner edges.
  • Standard Legs support the Ultimate Folding Screen in a vertical position.
  • Draper's Ultimate Folding Screen with Heavy Duty Legs offers keystone control.
In the Box Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Surface
  • Polyethylene Wheeled Carrying Case
  • Limited 1-Year Warranty
  • Quick-Start Guide PDF 203kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Draper 77.5 x 138.5" 16:9 Ultimate Folding Screen with CineFlex CH1200V Surface in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Draper 241184 Specs

    Style Folding screen
    Front/Rear Projection Rear
    Mount Free standing
    Finish CineFlex CH1200V
    Tension Control Tensioned
    Keystone Control No
    Overall Size 83 x 144" / 2.1 x 3.7 m
    Image Size 77.5 x 138.5" / 2.0 x 3.5 m
    Diagonal 161" / 4.1 m
    Aspect Ratio 16:9
    Masking 2.75" black masking borders
    Voltage Not Applicable
    Integrated Control Not Applicable
    Control Options Not Applicable
    Color Chrome
    Material Anodized aluminum
    Length Not Applicable
    Shipping Weight 92 lb / 41.7kg
    Package Weight 78.0 lb
    Box Dimensions (LxWxH) 53.0 x 18.0 x 17.0"

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5
