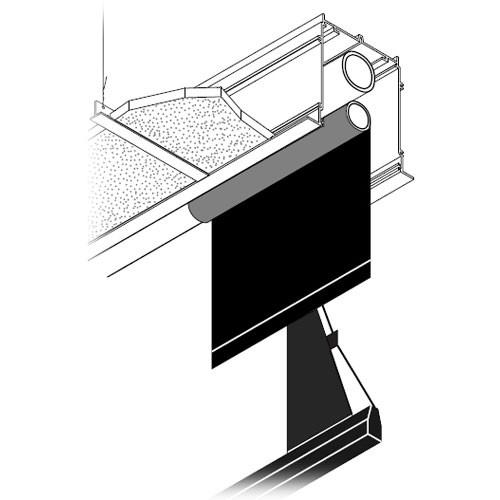

Product description The Draper 52 x 122" Access Multiview/Series V Motorized Masking Projection Screen: Ceiling Recessed - Tab-Tensioned - 132" Diagonal - Cinemascope Format (2.35:1 Aspect Ratio) (HD Grey) - This is a motorized projection screen with an independently motorized masking system installed in the same case for dual format projection. A flat black mask on the second motor-in-roller converts the screen to a 4:3 NTSC format by masking the right and left sides of the viewing surface. The height of the viewing surface remains constant. Both screen and masking system are independently controlled, each using any standard or optional control. Two SS-1Rs are standard. Or, select AMV-C, a low voltage control that allows both motors to be controlled by independent 3-button switches in a single box. Depending on the surface, it is available in sizes through 133" diagonal HDTV format or 136" diagonal WideScreen format. - One projection screen, two formats - Video & HDTV
- Electric, tab-tensioned front projection screen with independently motorized masking system installed in the same case for dual format projection
- Ceiling-recessed; hidden when not in use
- Flat black mask on second motor-in-roller converts the projection screen to a 4:3 NTSC format by masking the right and left sides of the viewing surface
- Height of viewing surface remains constant
- Both projection screen and masking system are independently controlled, each using any standard or optional control
- Depending on surface, available in sizes through 133" diagonal HDTV format or 136" diagonal WideScreen format
In the Box Draper Access Multiview/Series V Motorized Masking Projection Screen (52 x 122") 2 x SS-1R Controls Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper Access Multiview Series V Motorized Masking Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 105059 Specs | | | Style | Access Multiview/Series V | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | HD Grey; flame and mildew resistant | | Tension Control | Tab-tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 52 x 122" (132 x 310cm) | | Image Size | Not Specified by Manufacturer | | Diagonal | 132" (335.3cm) | | Format | Cinemascope | | Aspect Ratio | 2.35:1 | | Masking Options | Extra drop above image area: 12" black standard Extra drop on a Series V may also increase case length | | | | Voltage | 110-120VAC, 60 Hz, 3-wire motor, 1.1 amp draw | | Integrated Control | Two 110-120 volt, 3-position wall switches included, one per motor
Instantly reversible, lifetime lubricated, with thermal overload protector and electric brake
Preset, accessible limit switches
Switches furnished with cover plates | | Control Options | Single Station Control (SS-1R)
Multiple Station Controls (MS-3R / MS-4R)
Low Voltage Switch (LVC-S)
Key Operated 3-Position Switch (KS3 / SP-KSM)
Key Operated Power Supply Switch (KS-1)
Locking Switch Cover Plate (SP-KPS-I)
VIC Override Switch (VIC-OS)
Radio Frequency Remote Control (WRT/R)
Infrared Remote Control (IRT/R)
Low Voltage Control Module (LVC-III)
MC1 Motor Control Board
Video Interface Control | | | | Color | White | | Material | Extruded aluminum | | Length | 149" (378.5cm) | | | | Shipping Weight | 160 lbs (72.3 kg) | | | | Package Weight | 155.0 lb | | Box Dimensions (LxWxH) | 162.0 x 13.0 x 11.0" |
