User Manual for Draper First Surface Mirror with Frame Click to enlarge the picture
Contents of the user manual for the Draper First Surface Mirror with Frame
- Product category: Rear Projection Components Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Rear Projection Components
|
User manual for the Draper First Surface Mirror with Frame contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

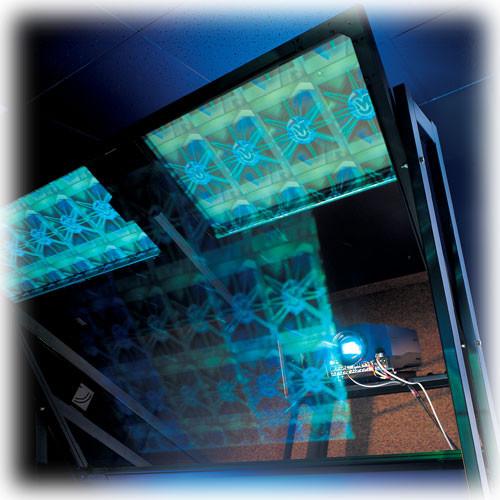

Product description The Draper 43 x 72" First Surface Mirror with Frame for Rear Projection is frequently used in rear projection systems design to fold the light from the projector, reducing the required depth of the projection area behind the rear screen. Conventional mirrors are not satisfactory for this purpose, because the reflective coating is on the backside of the glass. Under projection, the majority of light is reflected by the reflective coating, and a minority is reflected by the first surface of the mirror, resulting in an objectionable double image.It should be mentioned that Draper also makes MiroClear, a superior quality, optionally available cleaning and restoration kit designed specifically for all first surface glass mirrors. MiroClear improves image quality, maintains new mirrors to the highest standards, brings new life to older mirrors, and restores reflectivity loss caused by dust, dirt, fingerprints and grimy build-up that accumulates and robs mirror of critical reflectivity. Benefits - Draper provides optical grade first surface mirrors - .25" optical glass, 94% reflective
- Mirrors consist of a 94% reflective optical grade vacuum coating on a 6mm thick glass substrate; 3, 5, and 10mm thickness optionally available
- Nine standard sizes ranging from 25 x 40" through 74 x 100"
- Sold separately, or with rear screen systems
- Available with or without factory installed protective frame
Mirror Stiffening System - Draper also offers a unique and highly effective stiffening system for mirrors with structural and composite reinforcement. Mirror flatness is larger with cut down sizes available - increasingly important due to increased resolution and brightness in today's projectors
- Only Draper has developed a stiffening method to assure the flattest large-size glass mirror
- This system ensures flatness and eliminates pin cushion effect, double imaging and dead spots, resulting in a significantly improved image
In the Box Draper First Surface Mirror with Frame (43 x 72") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper First Surface Mirror with Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 254013 Specs | | | Style | First Surface Mirror | | Front/Rear Projection | Rear | | Mount | with Frame | | | | Overall Size | 43 x 72" (109.2 x 188cm) | | Image Size | Not Applicable | | Diagonal | Not Applicable | | Format | Not Applicable | | Aspect Ratio | Not Applicable | | Masking Options | Not Applicable | | | | Color | Black anodized finish | | Material | If purchased with frame - frame is 6063-T5 alloy, extruded aluminum with rubber compression gasket to prevent distortion Purchase of mirror complete with frame simplifies installation | | Length | Shipping Dimensions: 84 x 31 x 52" (213.4 x 78.7 x 132.1cm) | | | | Shipping Weight | Mirror Only: 225 lb (102 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
