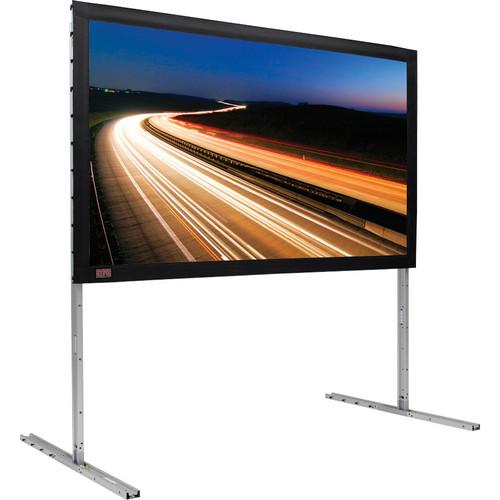

Product description The FocalPoint 220” Portable Projection Screen from Draper Inc. comes with a Matt White XT1000VB projection surface, black anodized frame, and aluminum legs. The screen is designed according to 16:9 HDTV format, and is suitable for standard and small venues, such as meeting or breakout rooms. The projection screen features modular frame construction.

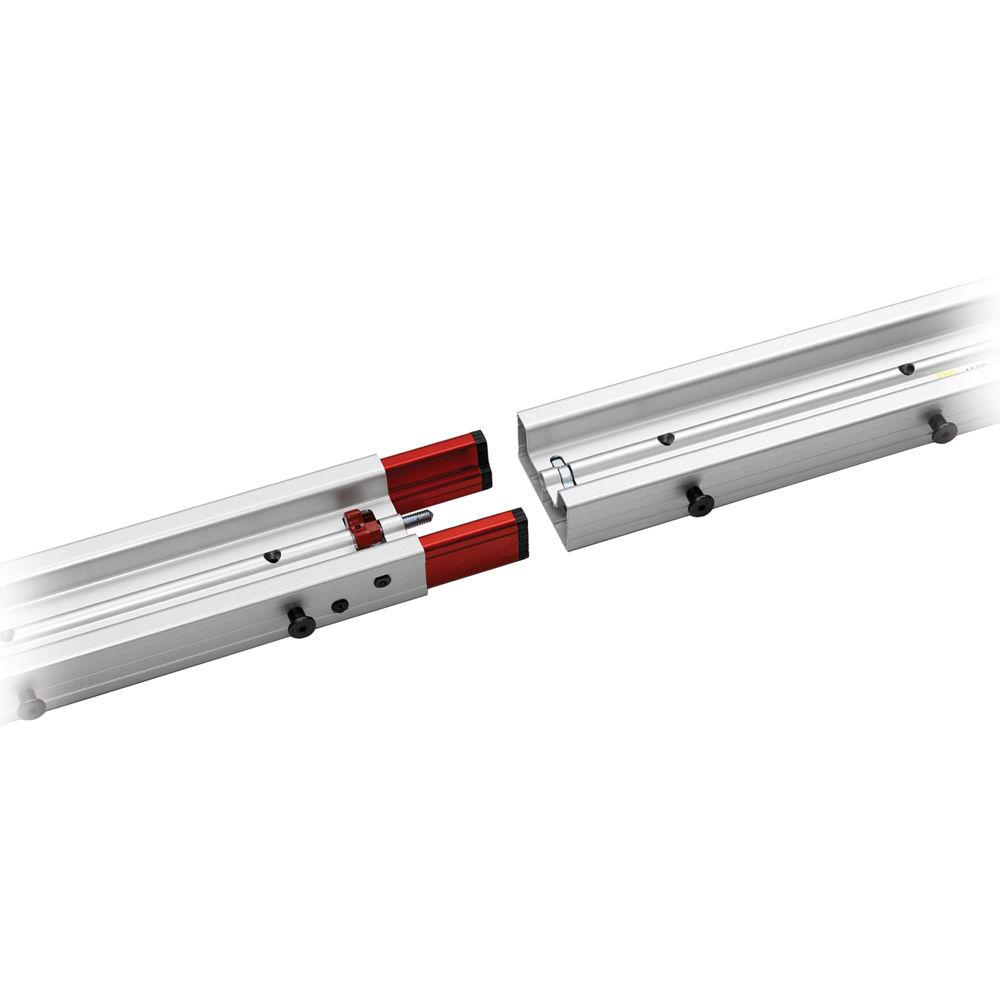

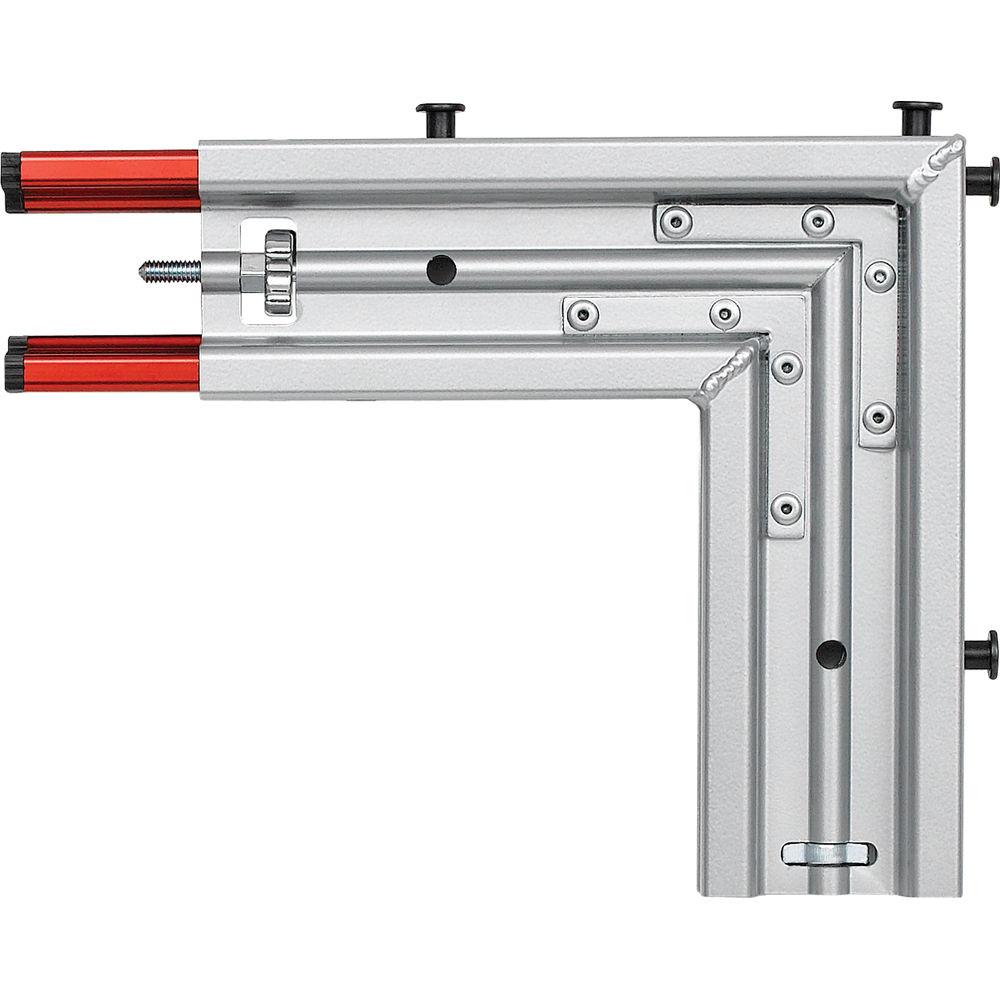

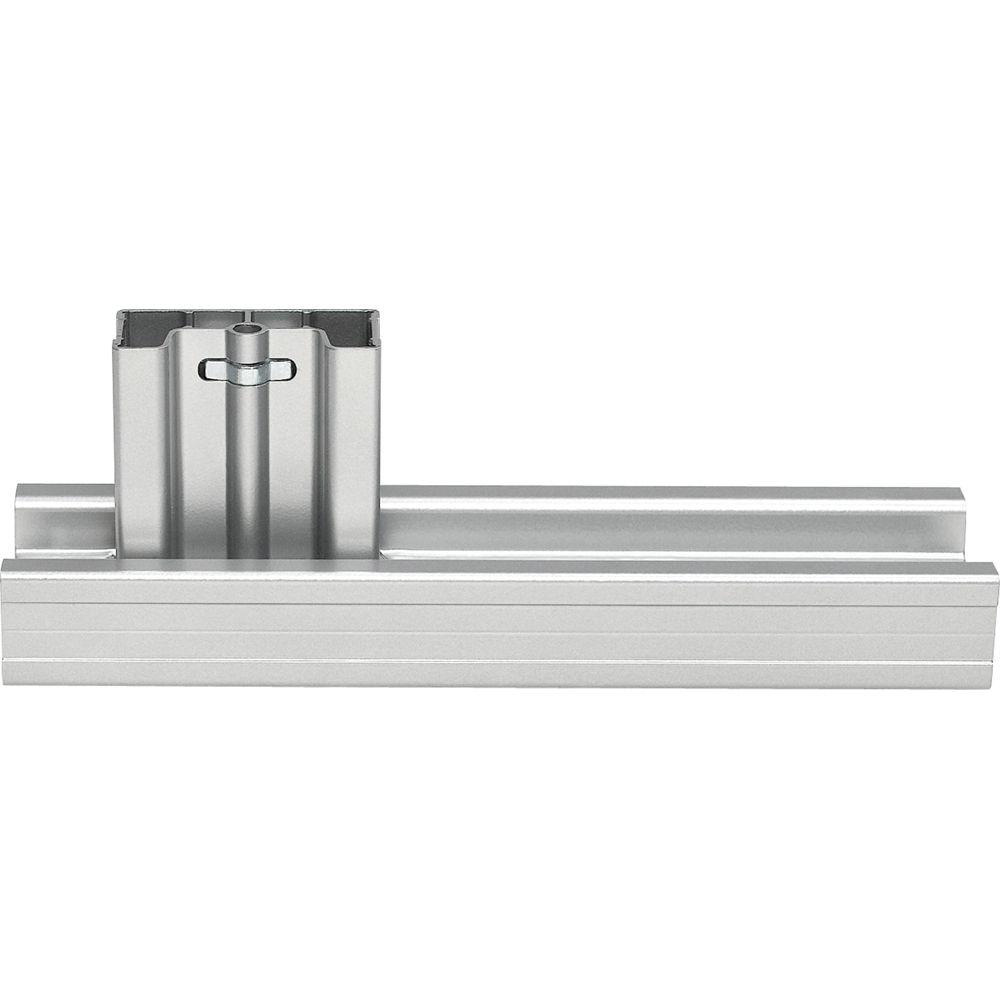

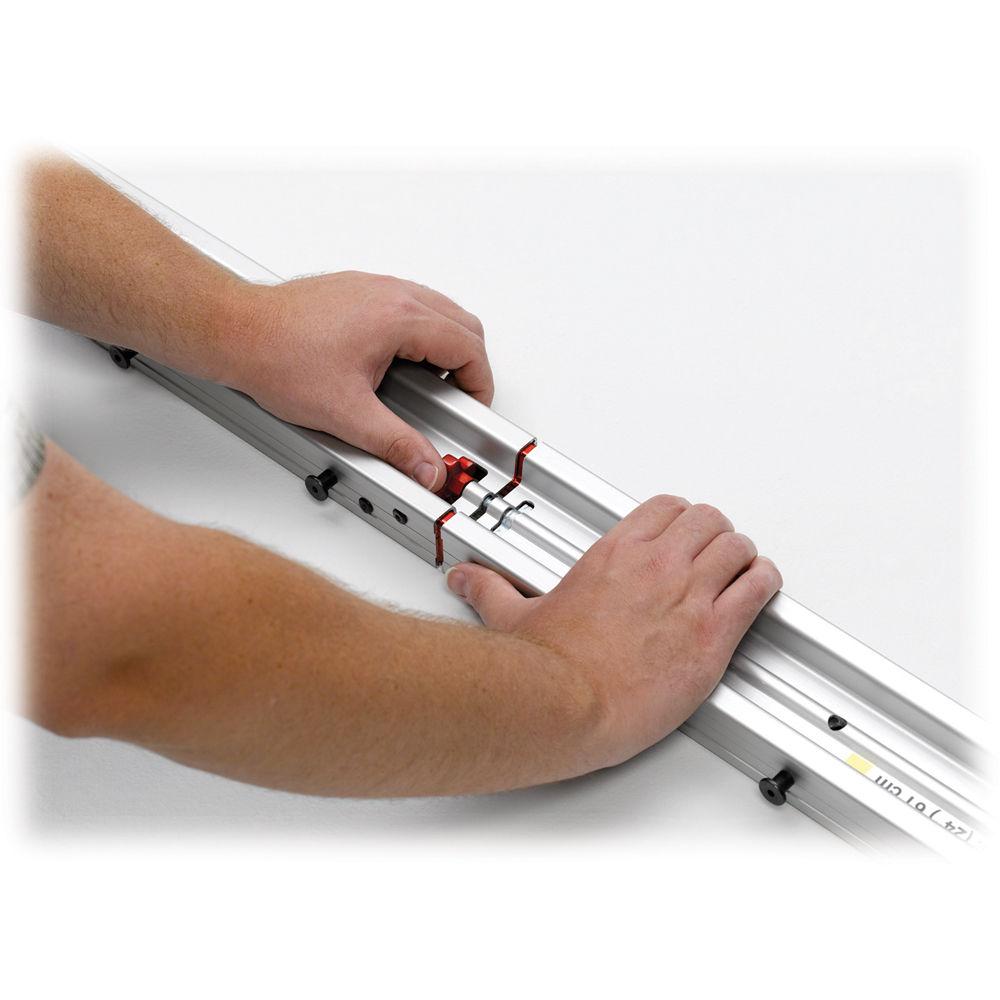

The projection screen is built from combinations of frame segments and corner pieces. The frame’s rigid, durable segments are made of sturdy, extruded aluminum and are lightweight. The frame segments are color coded for easy identification and the unit ships with clearly marked assembly instructions and easy-to-follow assembly maps. The projection screen assembly features no hinges. The legs of the projection screen are constructed using the same frame segments and one leg base.

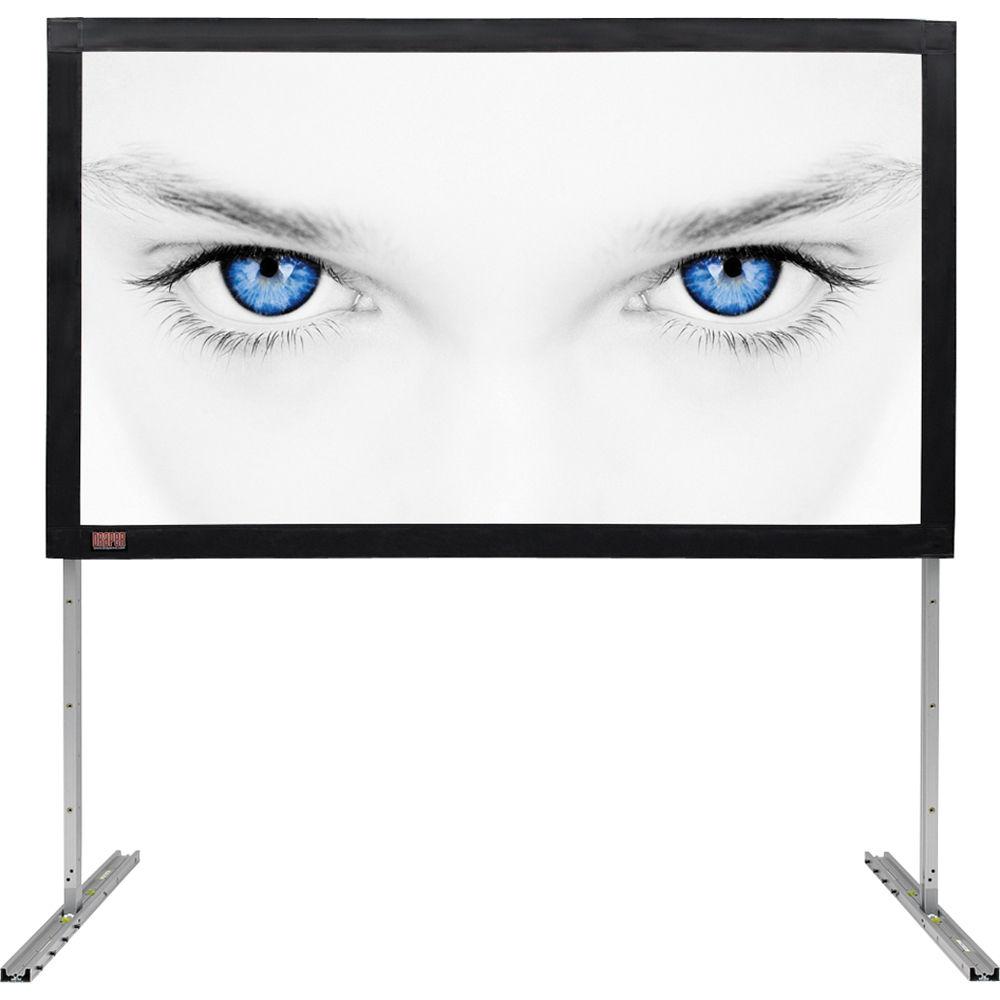

The OptiFlex Matt White XT1000VB viewing surface with black backing is suitable for tensioning, and provides a flat front projection viewing surface. The screen’s matt white surface diffuses the projected light in all directions and reflects a uniformly bright image over complete 180° viewing cone with precise resolution and accurate color balance. The screen is suitable for use with all types of projectors provided the ambient light in the room can be reasonably controlled. The screen is GREENGUARD Children and Schools certified.
The viewing surface attaches with Draper’s DuraLoop bungees and convenient nylon pull-tabs (included). The result is a perfectly flat self-centering viewing surface that attaches quickly and easily and with no snaps. In addition, the viewing surface includes a black border that extends past the edge of the frame for a finished appearance. Note: Use mild soap and water to clean the screen. Screen - Viewing surface includes a black border that extends past the edge of the frame, neatly hiding the DuraLoops and frame posts
- Viewing surface attaches with Draper's DuraLoop bungees and convenient nylon pull-tabs for a flat self-centering viewing surface that attaches quickly and easily and with no snaps
- Suitable for 16:9 HDTV format
- GREENGUARD Children and Schools certified
Frame - Sturdy, lightweight extruded aluminum construction
In the Box Draper FocalPoint 220" Portable Projection Screen Matt White XT1000VB Viewing Surface (Black Backed) DuraLoop Bungee Attachment and Nylon Pull-Tabs 14 x 4' (122cm) Frame Segment 6 x 3' (91.4cm) Frame Segment 4 x 2' (60.96cm) Frame Segment 4 x Corner 2 x Leg Base Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper FocalPoint 220" Portable Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 385108 Specs | | | Thickness | 0.01" (0.26 mm) | | Composition | Flexible PVC | | Gain | On-Axis/0°: 1.0 Individual test results may vary. Results based on a representative sample in the Draper inventory. | | Maximum Height | Without Seams: 144.00" (365.76 cm) | | Dimensions | Diagonal: 220.0" (558.8 cm)
Image Area (H x W): 108 x 192" (274 x 488 cm)
Overall Size (H x W): 116.00 x 200.00" (294.64 x 508.00 cm) | | Weight | 432 g/m2 | | | | Package Weight | 253.0 lb | | Box Dimensions (LxWxH) | 62.0 x 36.0 x 23.0" |
