User Manual for Draper FocalPoint 81 x 144" Foldable HDTV 16:9 Projection Screen with M1300 Matt White Surface Click to enlarge the picture
Contents of the user manual for the Draper FocalPoint 81 x 144" Foldable
- Product category: Folding Screens Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Folding Screens
 |
User manual for the Draper FocalPoint 81 x 144" Foldable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|

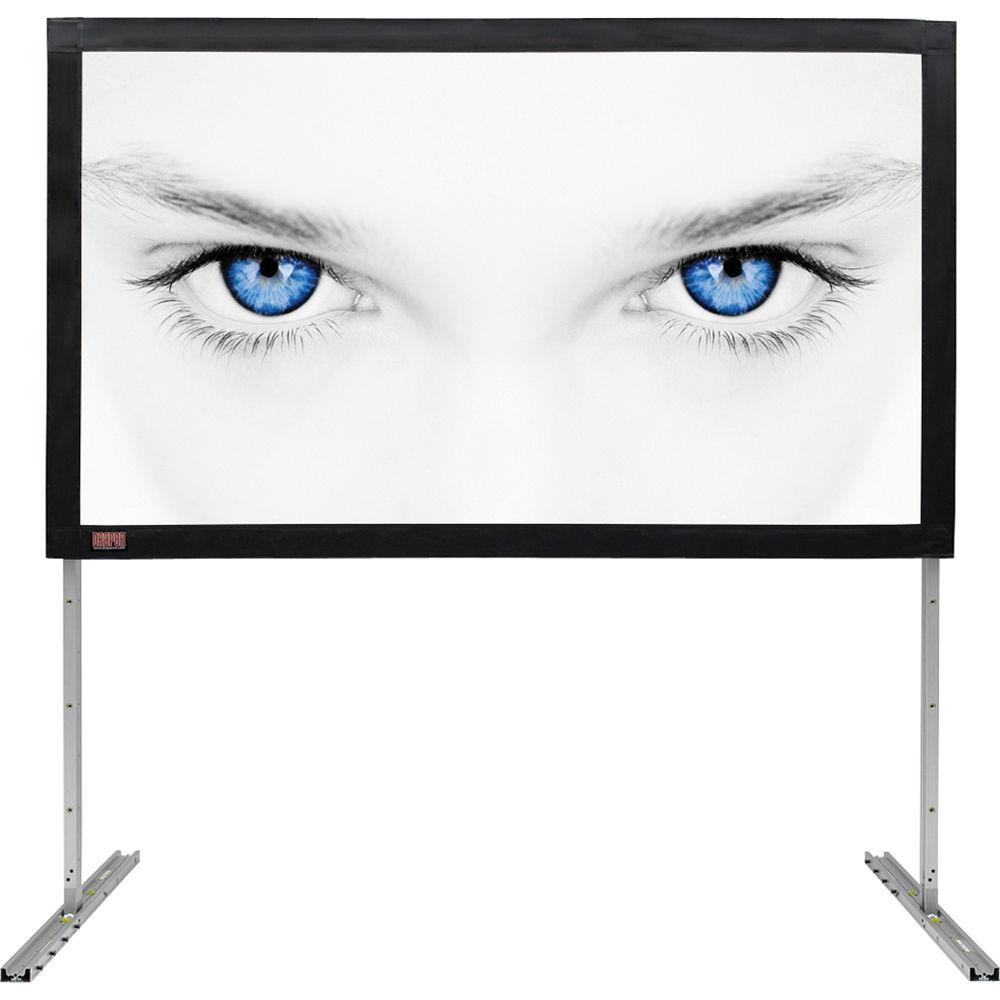

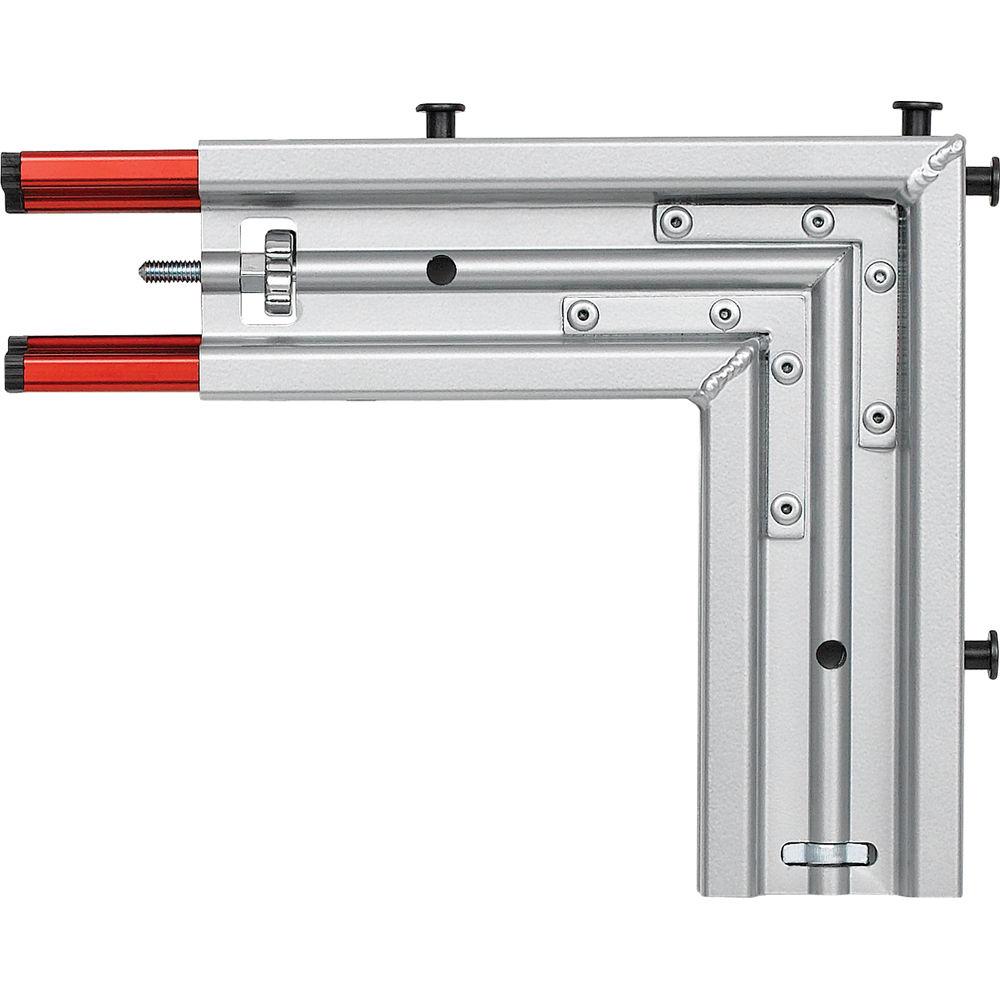

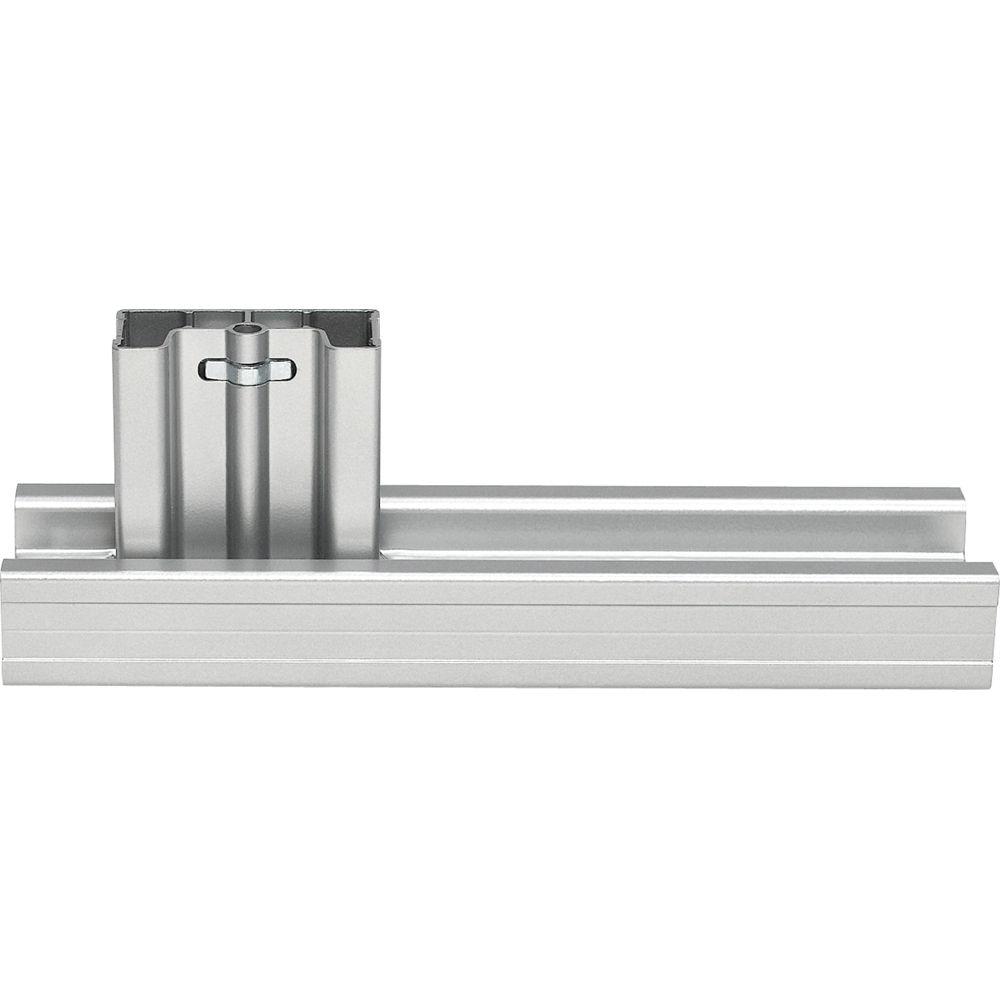

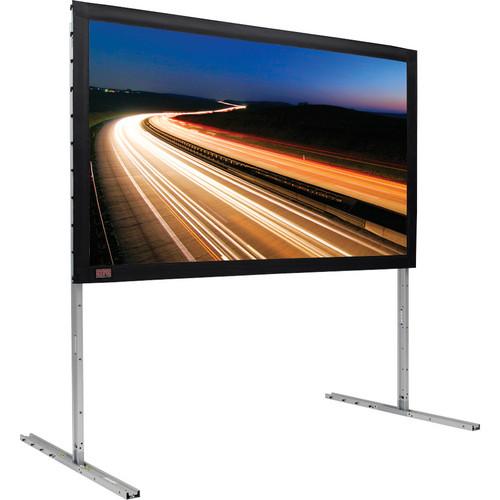

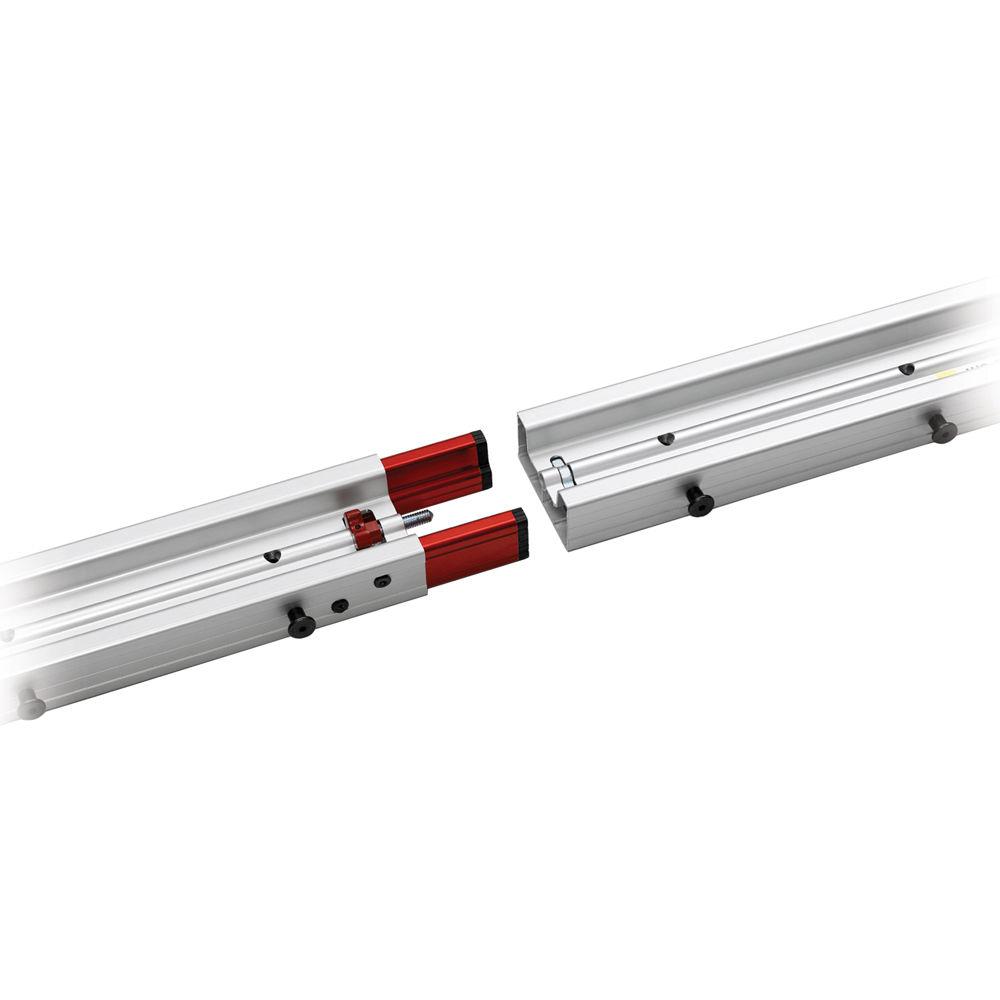

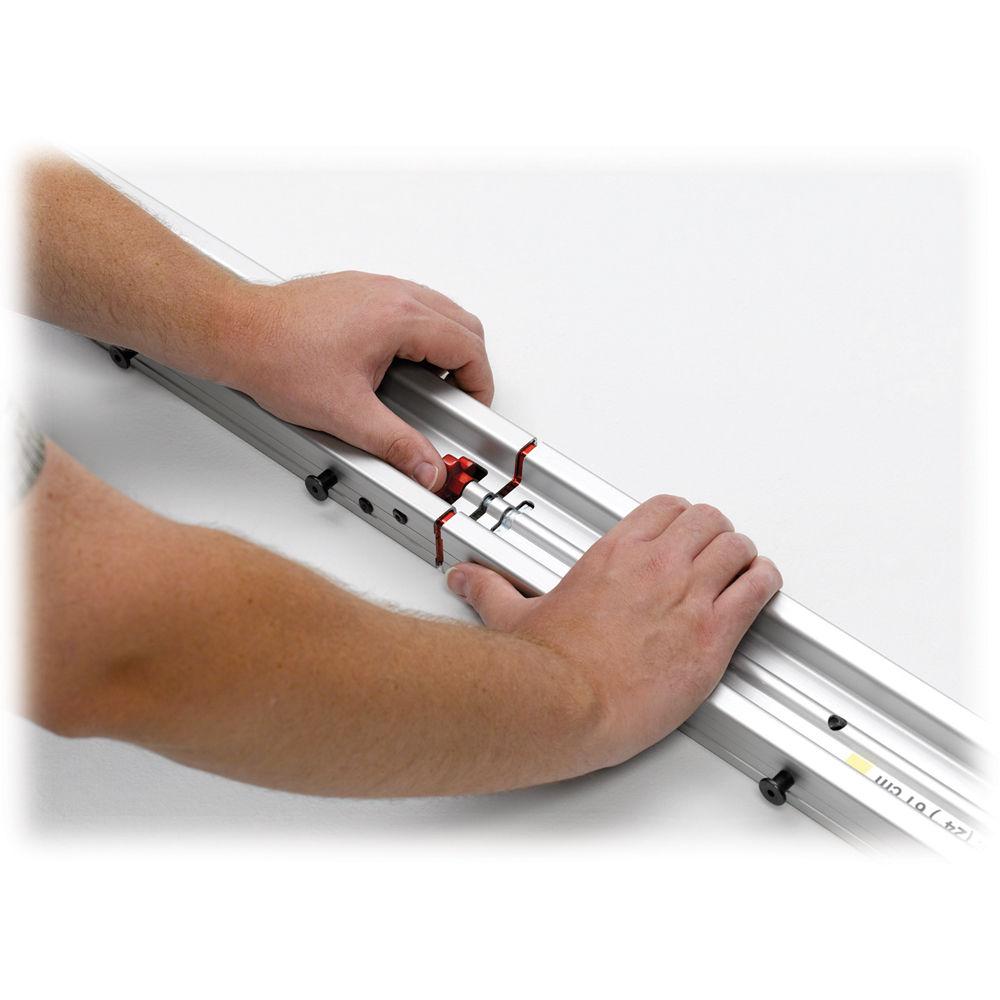

Product description The silver framed FocalPoint 81 x 144" Foldable HDTV 16:9 Projection Screen from Draper is designed for standard and small venues such as meeting rooms or breakout rooms. It features a modular frame construction and comes with a black-backed M1300 Matt White Surface. The FocalPoint screen kit ships complete with legs, frame, surface, carrying case, and tarp. The Leg Kit C includes small profile frame segments made of sturdy extruded aluminum. This makes the FocalPoint projection screen extremely rigid and durable, while remaining lightweight. The frame assembly features no hinges, and yet it is strong and features quick and easy assembly. The Matt White XT1000VB M1300 viewing surface has a peak gain of 1.0 and features black backing for situations where ambient light behind the screen is a concern. This diffusing surface is recommended for use with all types of projectors, provided the ambient light can be reasonably controlled. It reflects a uniformly bright image over the complete 180° viewing cone with precise resolution and accurate color balance. - Viewing surface attaches with innovative DuraLoop bungees and convenient nylon pull-tabs. The result is a perfectly flat self-centering viewing surface that attaches quickly and easily with no snaps.
- Viewing surface includes a black border that extends past the edge of the frame, neatly hiding the DuraLoops and frame posts.
- Matt White XT1000VB M1300 viewing surface incorporates black backing for situations where ambient light behind the screen is a concern.
- Recommended for use with all types of projectors provided the ambient light can be reasonably controlled
- Included Leg Kit C comes with 2 legs for the screen with 5 cranks per leg for a total of 10 cranks
- Comes with a carrying case and tarp
In the Box Draper FocalPoint 81 x 144" Foldable HDTV 16:9 Projection Screen (Silver) with M1300 Matt White Surface FocalPoint Projection Screen Matt White XT1000VB Viewing Surface Leg Kit C Carrying Case Tarp Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper FocalPoint 81 x 144" Foldable HDTV 16:9 Projection Screen with M1300 Matt White Surface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 385050 Specs | | | Material | Matt White XT1000VB | | Image Format | 16:9 HDTV | | Diagonal Size | 165.0" (419.1 cm) | | Viewable Area | 81.00 x 144.00" (205.74 x 365.76 cm) | | Overall Size | 92.00 x 152.00" (233.68 x 386.08 cm) | | Weight | 130.00 lb (58.96 kg) | | | | Maximum Height | 144.00" (365.76 mm) | | Thickness | 0.01" (0.26 mm) | | Care & Cleaning | Mild soap and water | | Flame Retardant | NFPA-701 | | Composition | Flexible PVC | | Gain | 1 | | Angle | Half Gain Angle: Uniform diffuser; no half-gain angle | | Weight | 15.23 oz (432.00 g) | | | | Package Weight | 161.0 lb | | Box Dimensions (LxWxH) | 62.0 x 18.0 x 18.0" |
