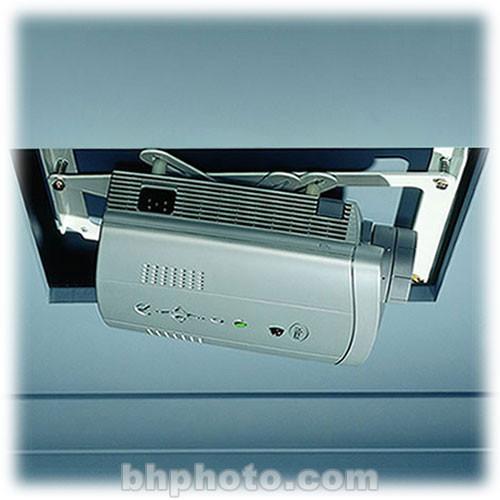

User Manual for Draper Orbiter Projector Lift - Model B 300351 Click to enlarge the picture
Contents of the user manual for the Draper Orbiter Projector Lift - Model
- Product category: Projector Lifts Draper
- Brand: Draper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Draper Projector Lifts
|
User manual for the Draper Orbiter Projector Lift - Model contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Draper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Draper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Draper product will considerably shorten its lifespan!
|
Product description The Draper Orbiter Projector Lift - Model B is a unique projector left that allows mounting on even the most difficult ceilings. The Orbiter is designed to fit in small ceiling cavities and in angled ceilings - making it versatile enough for all environments. The lift conceals the projector above the ceiling and rotates it into the "show" position with the touch of a button or wireless transmitter.
The Orbiter is also supplied with a universal-style bracket that allows for easy attachment of a variety of projector models. In addition, this lift can be used for video conferencing cameras, speakers, and many other media tools. - Remote Control
- Operated by optional IR or RF remote control, standard wall switch, or integrated into your control system, Orbiter will add a touch of class and sophistication to any room.
- Versatility
- The Orbiter - Model B can fit any projector that is within 9-1/2" of height and 20-3/4" of width.
- Power
- The Orbiter motor is a DC-low voltage motor, 12v, which allows for easier control and wiring of the lift.
- Load Capacity
- With a load capacity of 26 lb., the Orbiter fits most standard projectors.
In the Box Draper Orbiter Projector Lift - Model B 300351 Projector Lift Power Cord Owner's Guide One-year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper Orbiter Projector Lift - Model B 300351 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 300351 Specs | | | Lift Type | LCD/Speaker/Camera | | Depth From Mounting Source | 16" (41 cm) | | Mounting Source Opening (WxD) | 23-9/16 x 21-9/16" (59-9/10 x 54-4/5 cm) | | Closure Panel Dimension (WxD) | 23-9/16 x 21-9/16" (59-9/10 x 54-4/5 cm) | | Max Equipment Size | 9-1/2 x 20-3/4" (24-1/10 x 52-3/4 cm) | | Travel Distance | Not specified by manufacturer | | Travel Speed | Not specified by manufacturer | | Adjustments | None | | | | Control Option | IR or RF Remote | | Integrated Control | 12V Wall Switch | | Low Voltage | Dry Voltage - 0V AC | | | | Construction | Steel/Aluminum | | Power Requirements | 110-120V, 60 Hz | | Maximum Current Draw | Not specified by manufacturer | | Dimensions | 27 x 29-1/2 x 16" (68-3/5 x 74-9/10 x 41 cm) | | Weight Capacity | 26 lb (12 kg) | | Weight | 38 lb (17-1/4 kg) | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 35.0 x 33.0 x 7.0" |
