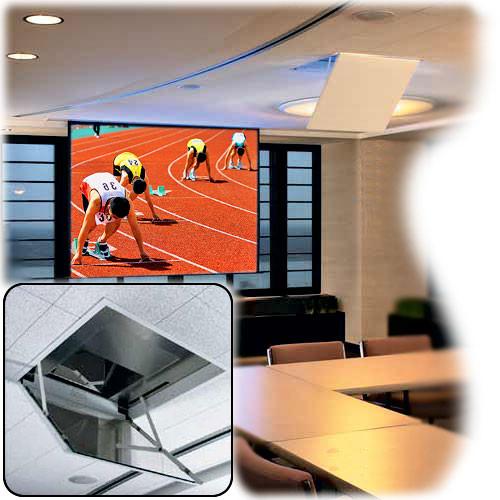

Product description The Draper Revelation B Ceiling Projector Mount w/Plenum is totally different from traditional projector lifts and mounts. The Revelation permanently conceals the projector and its noise above the ceiling at all times. While other products typically lower the projector into the room from the ceiling, or bring into view from a tabletop hide-away, the Revelation remains unseen and unheard at all times. The only visible component of the mount is a discreet hinged door in the ceiling. The Revelation only requires 14" of space above the ceiling for installation, and can be installed in both to match a 2 x 2' ceiling grid spacing, or used with reveal-style grid. A dual optical mirror system of 94% reflectiveness works to give you a high quality image on your chosen surface. This system also includes a built cooling system to protect your valuable devices from damage due to overheating - Silent Operation
- Any and all noise from your projector setup will be confined to the overhead storage space of you Draper Ceiling Mount
- Invisible Installation
- Your projector will be completely hidden from sight during operation and storage. Only a hinged white door in the ceiling is visible from the floor.
- Dual First Surface mirrors
- Dual first surface optical grade 10 mm glass mirrors (94% reflective) work together to provide seamless image projection onto the screen of your choice
- Included Cooling Enclosure
- Aluminum enclosure includes intake and exhaust fan system with couplers for connection to ventilation ducts.
In the Box Draper REVELATION-B CEILING PROJ MT w/PLENUM 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Draper REVELATION-B CEILING PROJ MT w PLENUM in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDraper 300023 Specs | | | Depth From Mounting Source | 17" (43 cm) | | Max Equipment Size | 100 lbs. (45 kgs) | | Adjustments | Vertical Adjustment: 17" (43 cm) | | | | Construction | Aluminum | | Dimensions | 38 x 34 x 13" (96 x 86 x 33 cm) | | Weight Capacity | 100 lbs (45 kgs) | | Weight | 90 lbs (44 kgs) | | | | Package Weight | 209.0 lb | | Box Dimensions (LxWxH) | 49.0 x 40.0 x 26.0" |
