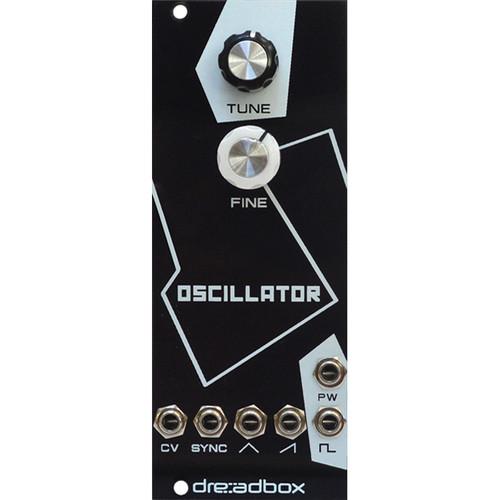

Product description The 10 HP Dreadbox White Line Series Oscillator is a standard Dreadbox oscillator in Eurorack format. The saw-core-based oscillator features tune and fine controls, allowing for precisely dialing in the pitch with a wide frequency response of 0.15 Hz to 5 kHz (without CV). The CV input allows the oscillator to track at 1V/oct with a dedicated hard sync CV input. Three individual waveform outputs are available simultaneously and feature triangle, saw (ramp up), and pulse with a dedicated PW CV input. The Dreadbox Oscillator includes a power ribbon cable. -
- Standard Dreadbox oscillator
- Saw core based
- 3 individual wave outputs (triangle, saw (ramp up), and pulse (with PW CV input)
- Tuned at 1V/oct
- Hard sync input
- Wide frequency range (0.15 Hz to 5 kHz without CV)
In the Box Dreadbox Oscillator - White Line Series Eurorack Module (10 HP) Ribbon Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dreadbox Oscillator - White Line Series Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDreadbox DBX-WL-OSC Specs | Circuit Design | Saw Core Oscillator | | Compatible With | Audio and CV Signals | | Controls | Tune: Coarse Pitch Tuning Knob
Fine: Fine Pitch Tuning Knob | | Waveform Type | Triangle, Saw (Ramp Up), Pulse (with Pulse Width Modulation CV Control) | | Output Level | Wave Outputs: ±5 V | | Frequency Range | CV: Unlimited
Without CV: 0.15 Hz to 5 kHz | | Sync | Hard Sync Input: Expects ±5 V Square Wave | | Connectors | CV In: 1/8" / 3.5 mm TS
Sync: 1/8" / 3.5 mm TS
Triangle Out: 1/8" / 3.5 mm TS
Saw Out: 1/8" / 3.5 mm TS
Pulse Out: 1/8" / 3.5 mm TS
PW: 1/8" / 3.5 mm TS | | Current Draw | +12 V: 25 mA
-12 V: 20 mA | | Horizontal Pitch | 10 HP | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
