User Manual for Dremel 3D Digilab 3D45 Printer Click to enlarge the picture
Contents of the user manual for the Dremel 3D Digilab 3D45 Printer
- Product category: 3D Printers Dremel 3D
- Brand: Dremel 3D
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dremel 3D 3D Printers
 |
User manual for the Dremel 3D Digilab 3D45 Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dremel 3D product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dremel 3D user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dremel 3D product will considerably shorten its lifespan!
|

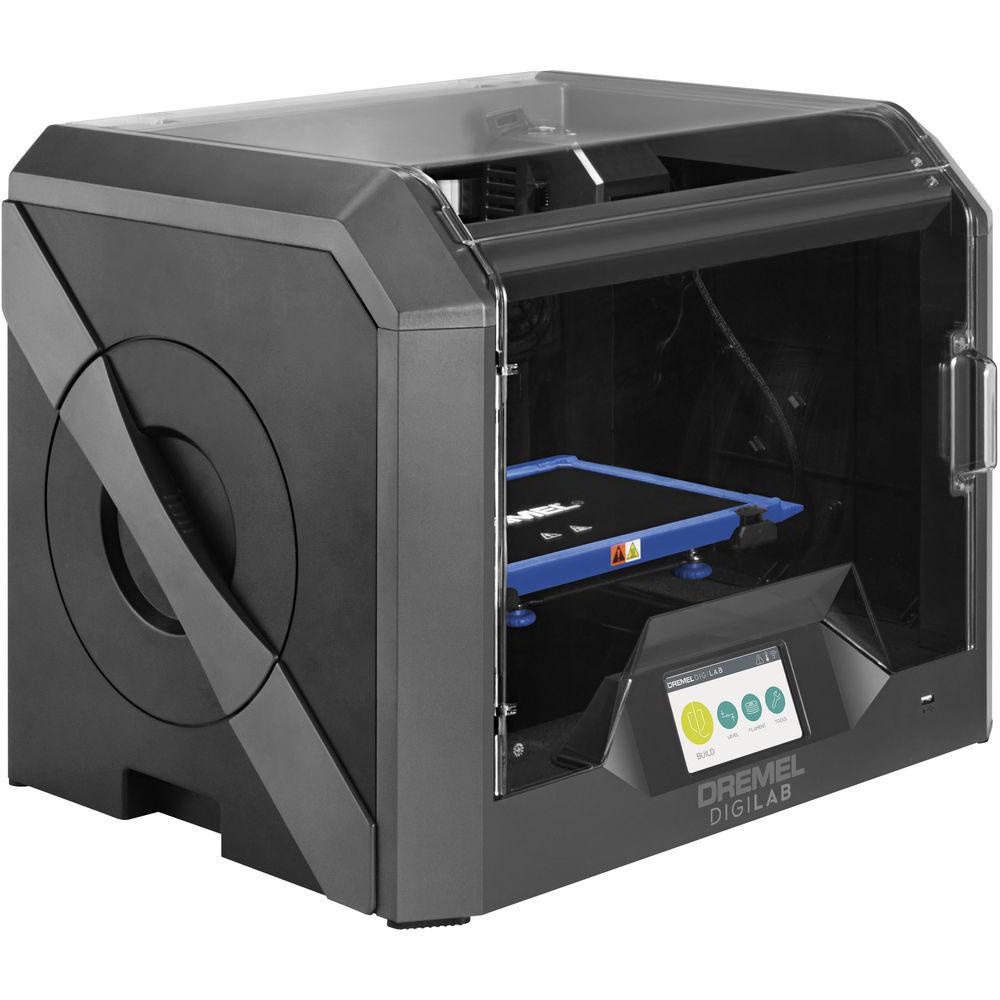

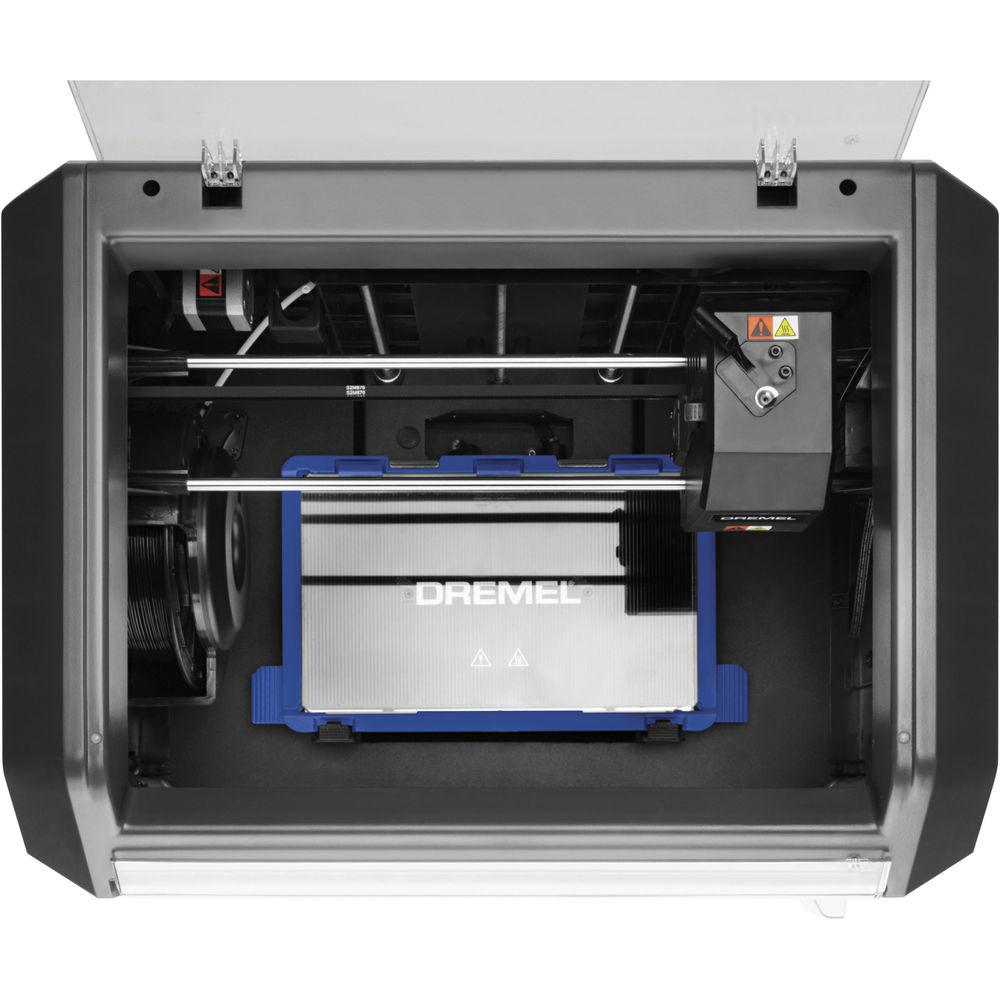

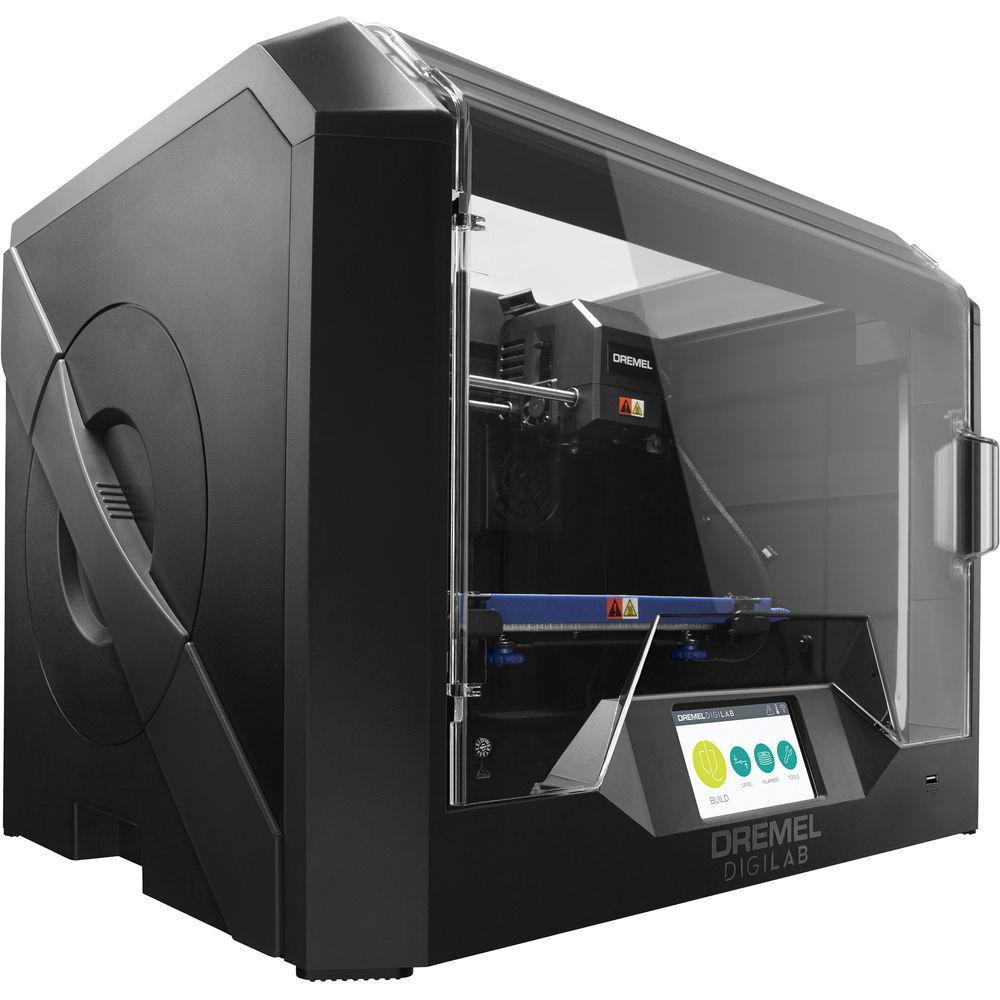

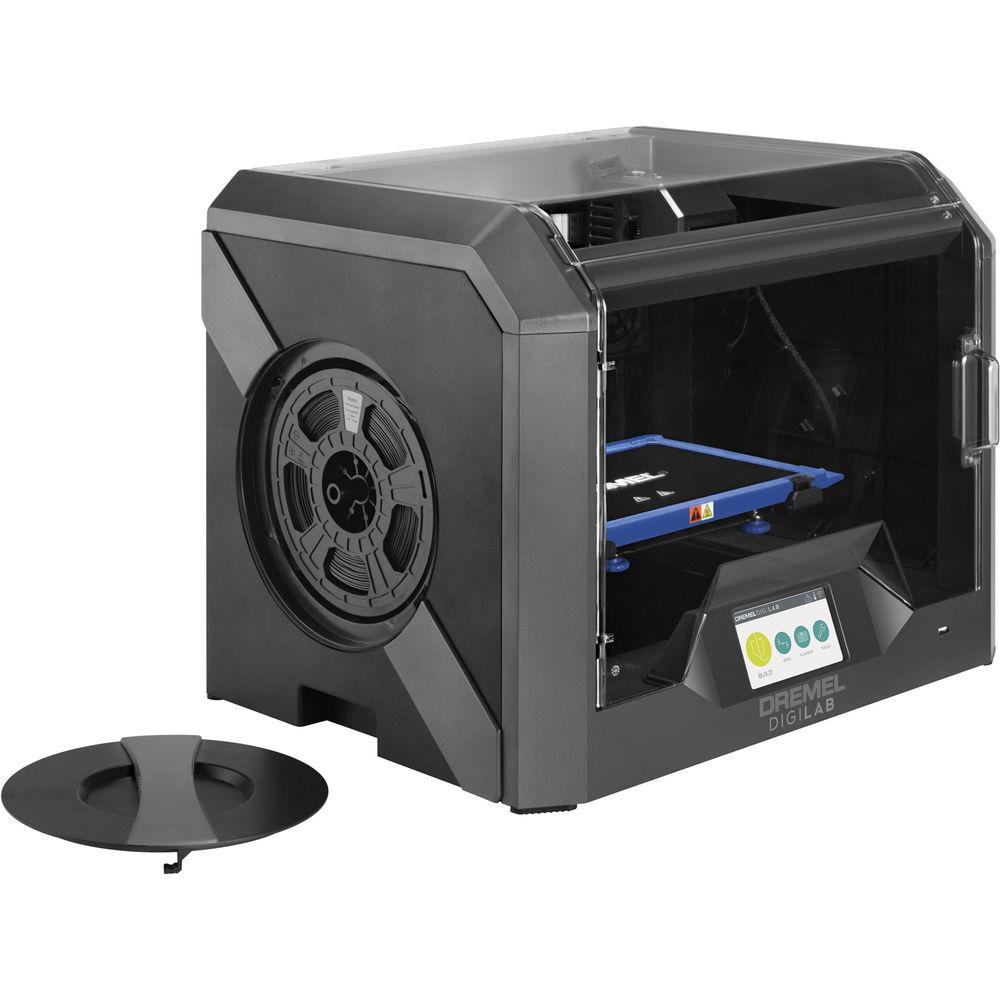

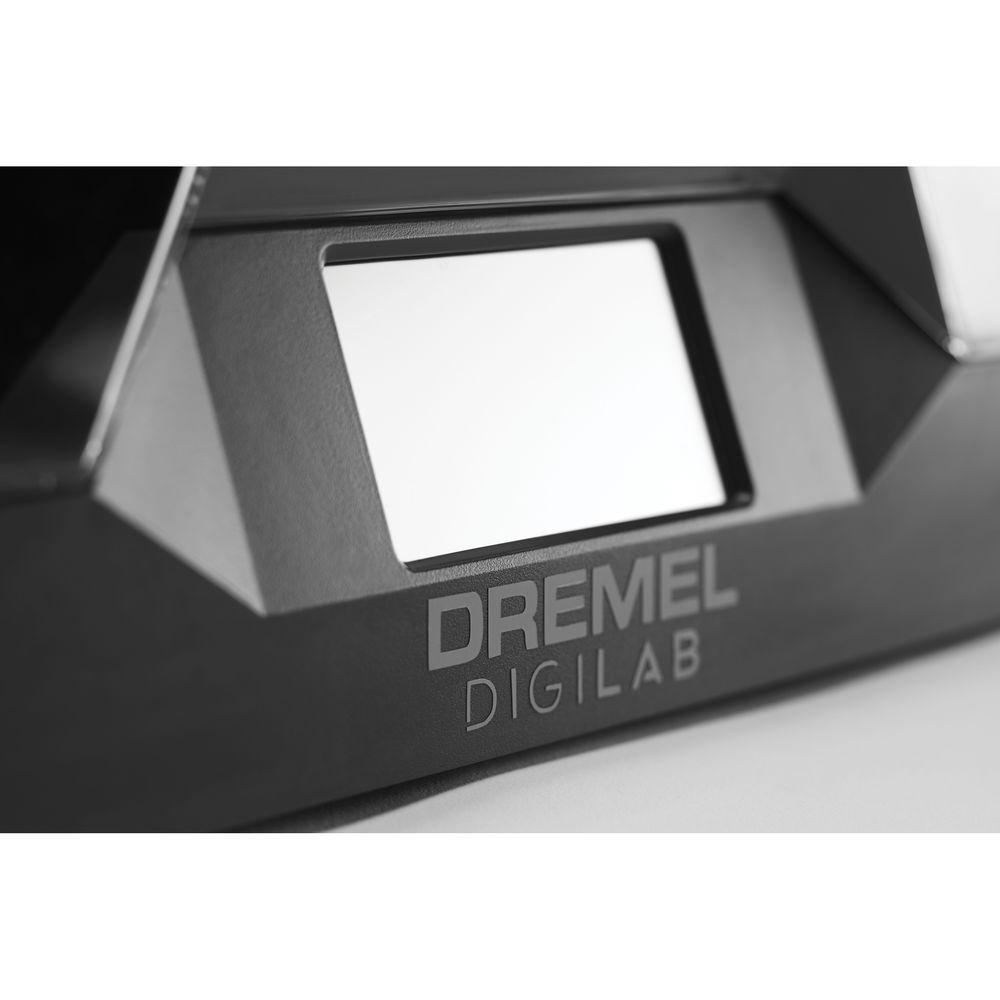

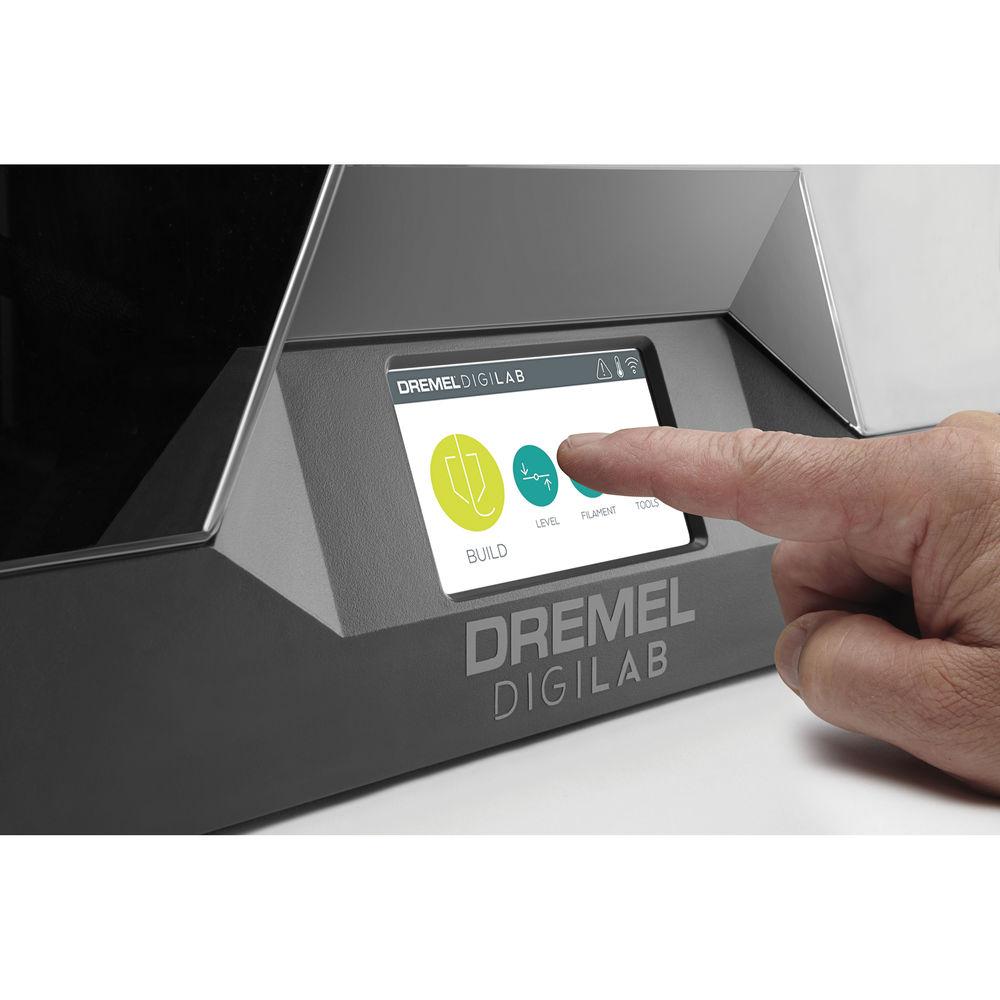

Product description Start printing right out of the box with the Dremel Digilab 3D45 3D Printer. With a single extruder and a built-in self-leveling print bed, you'll be able to print your first 3D model via Ethernet, Wi-Fi, or USB.The enclosed print area supports a build volume of 10 x 6 x 6.7". With a 50-300-micron layer resolution, the 3D45 can print using 1.75mm filaments of nylon, ECO-ABS, or PLA. The filament recognition system automatically changes the temperature to match the material. If your 3D print will take a long time, you can monitor and capture time-lapse videos of it using the built-in HD camera. The printer comes with a built-in LCD screen. There is even an active carbon filter that help reduce exposure to potentially harmful volatile organic compounds (VOCs). - Unlock Applications
- Generate prints for a vast range of applications with a wide range of supported filaments.
- Reliability
- The redesigned all-metal, hot end extruder has gone through thousands of hours of testing to ensure clog resistance.
- Networking
- Get your printer on the Internet with proxy and static IP configuration options. Allow others to easily use your printer with the Dremel Print Cloud software.
- Customize and Optimize
- Optimize your prints for your specific needs by tweaking print settings directly from the printer.
- Easy Setup

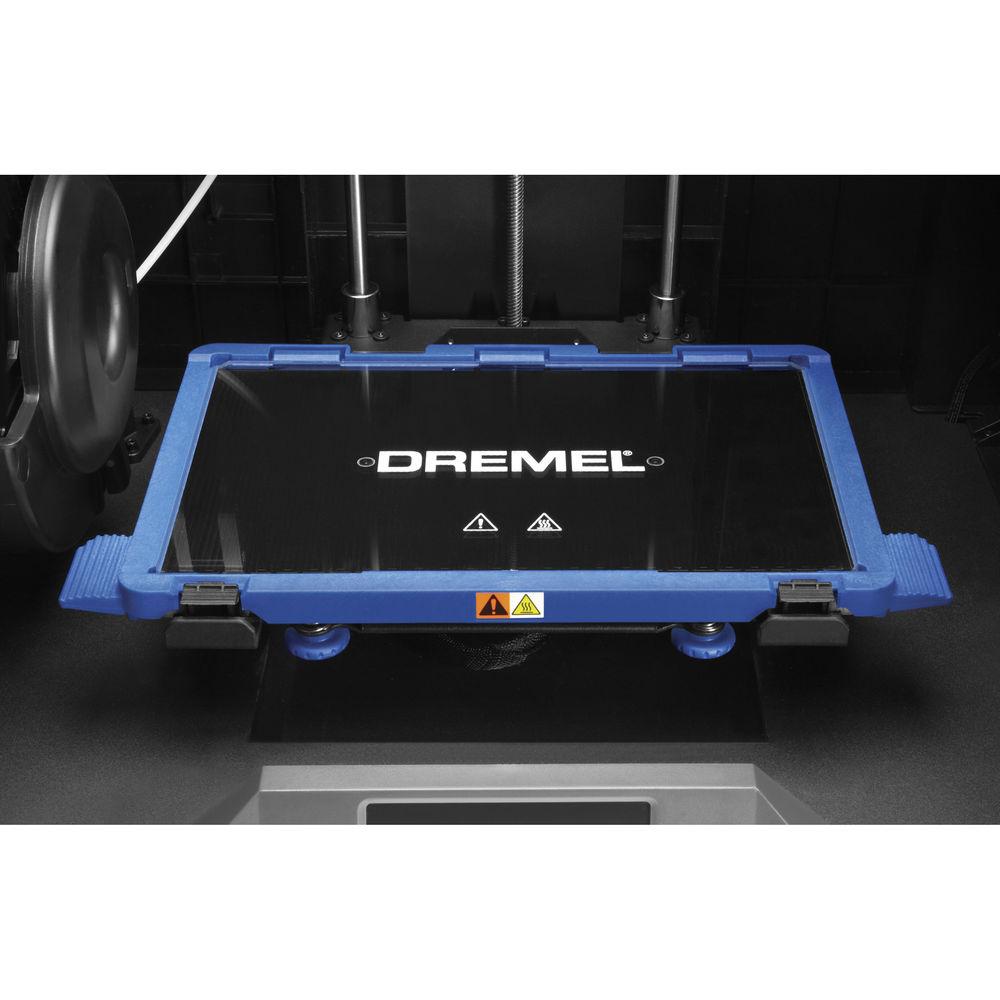

- The built-in self-leveling print bed takes away the guesswork when 3D printing.
- Material Management
- The built-in filament recognition system detects the type of filament you're using to adjust the temperature appropriately.
- Customer Service
- Free lifetime customer support from the Dremel 3D team based out of Racine, Wisconsin.
- Flexible Software
- Use the included desktop and cloud-based software for Mac and Windows computers.

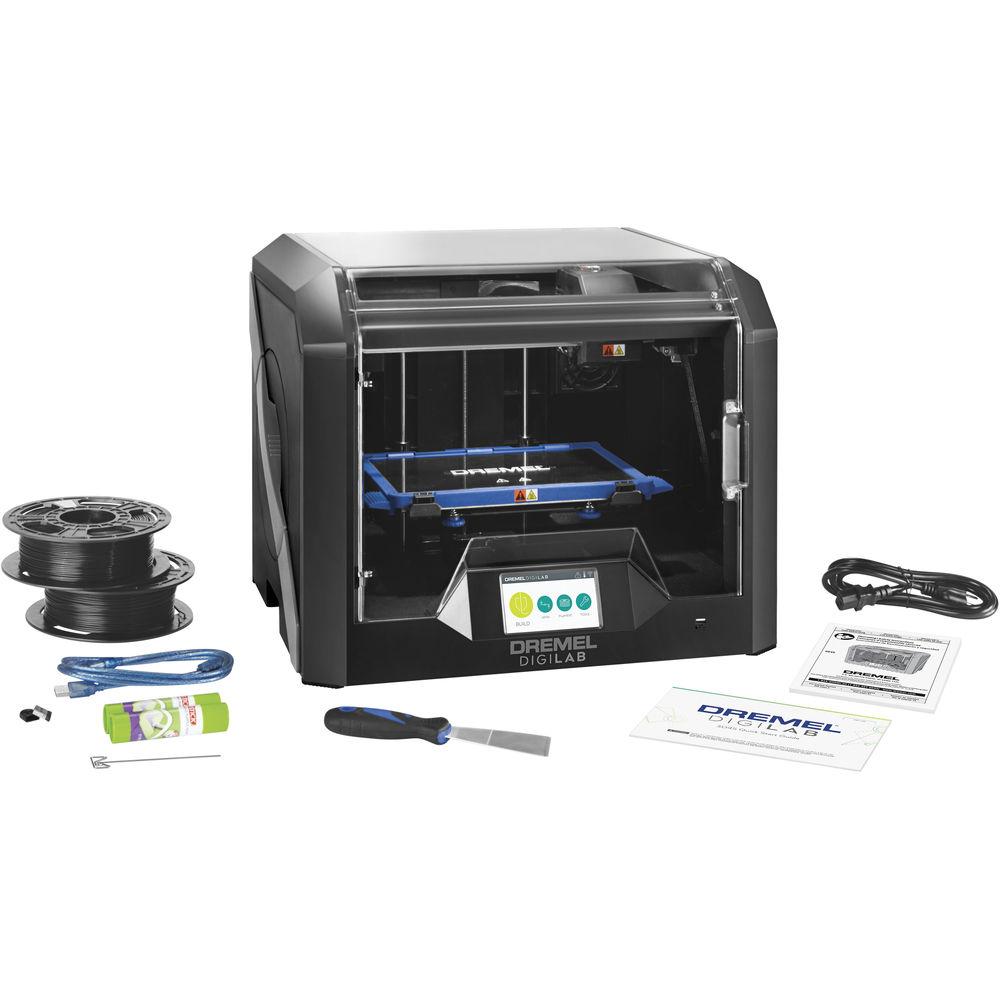

UPC: 080596042554 In the Box Dremel 3D Digilab 3D45 Printer 1 x Nylon Filament Roll 1 x ECO-ABS Filament Roll Dremel Print Cloud License Dremel DigiLab 3D Slicer Glue Stick Object Removal Tool USB Flash Drive Limited 1-Year Warranty with Lifetime Customer Support ytystdxzzwvvxxddzwutrfsvcx Table of Contents
|
Upload User Manual
Have you got an user manual for the Dremel 3D Digilab 3D45 Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDremel 3D 3D45 3D Printer Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM) | | Build Volume | 10 x 6 x 6.7" / 25.4 x 15.24 x 17.0 cm | | Number of Extruders | 1 | | Layer Resolution | Z Axis: 300 micron / 0.3 mm | | Supported Extruder Nozzle Diameter | 400 micron / 0.4 mm | | Extruder Nozzle Temperature | 536°F / 280°C | | Filament Compatibility | 1.75 mm Diameter:
ECO-ABS, Nylon, PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Auto Leveling | | Build Plate Temperature | 212°F / 100°C | | Filament Spool Storage | Internal | | Monitoring Camera | Yes | | | | Wired Connections | 1 x RJ45
1 x USB Type-A (USB 2.0) | | Wi-Fi | Yes | | Media Card Slots | Yes | | | | Supported Operating Systems | Windows 7 or Later
macOS X 10.9 or Later | | Supported 3D File Types | .obj, .stl | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 60 to 84°F / 16 to 29°C | | Dimensions (W x H x D) | 20.25 x 16 x 15.9" / 51.44 x 40.64 x 40.39 cm | | Weight | 47.5 lb / 21.6 kg | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 46.0 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 19.0" |
