User Manual for Dremel 3D Idea Builder 3D Printer Click to enlarge the picture
Contents of the user manual for the Dremel 3D Idea Builder 3D Printer
- Product category: 3D Printers Dremel 3D
- Brand: Dremel 3D
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dremel 3D 3D Printers
 |
User manual for the Dremel 3D Idea Builder 3D Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dremel 3D product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dremel 3D user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dremel 3D product will considerably shorten its lifespan!
|

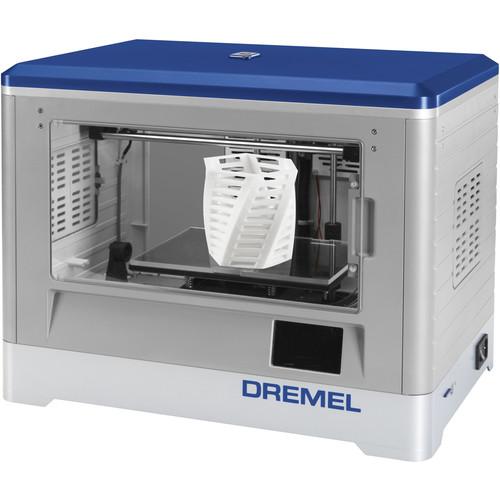

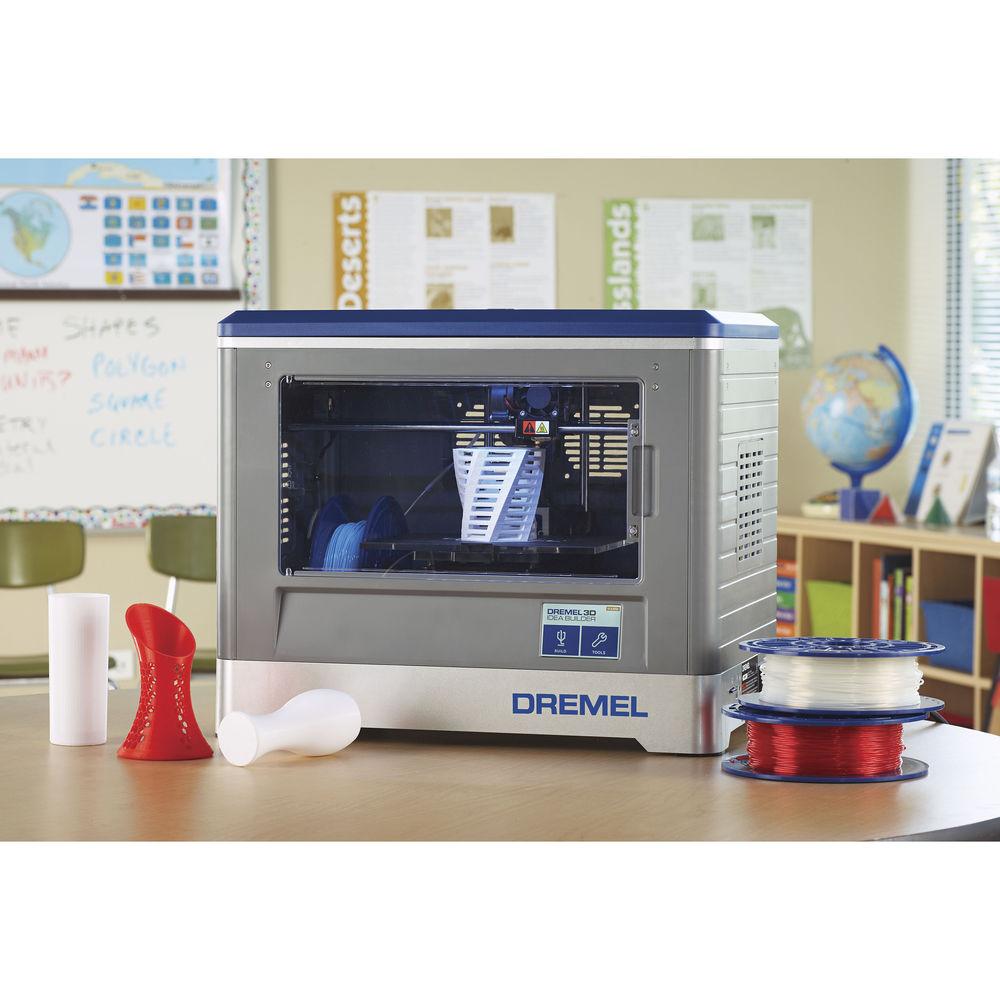

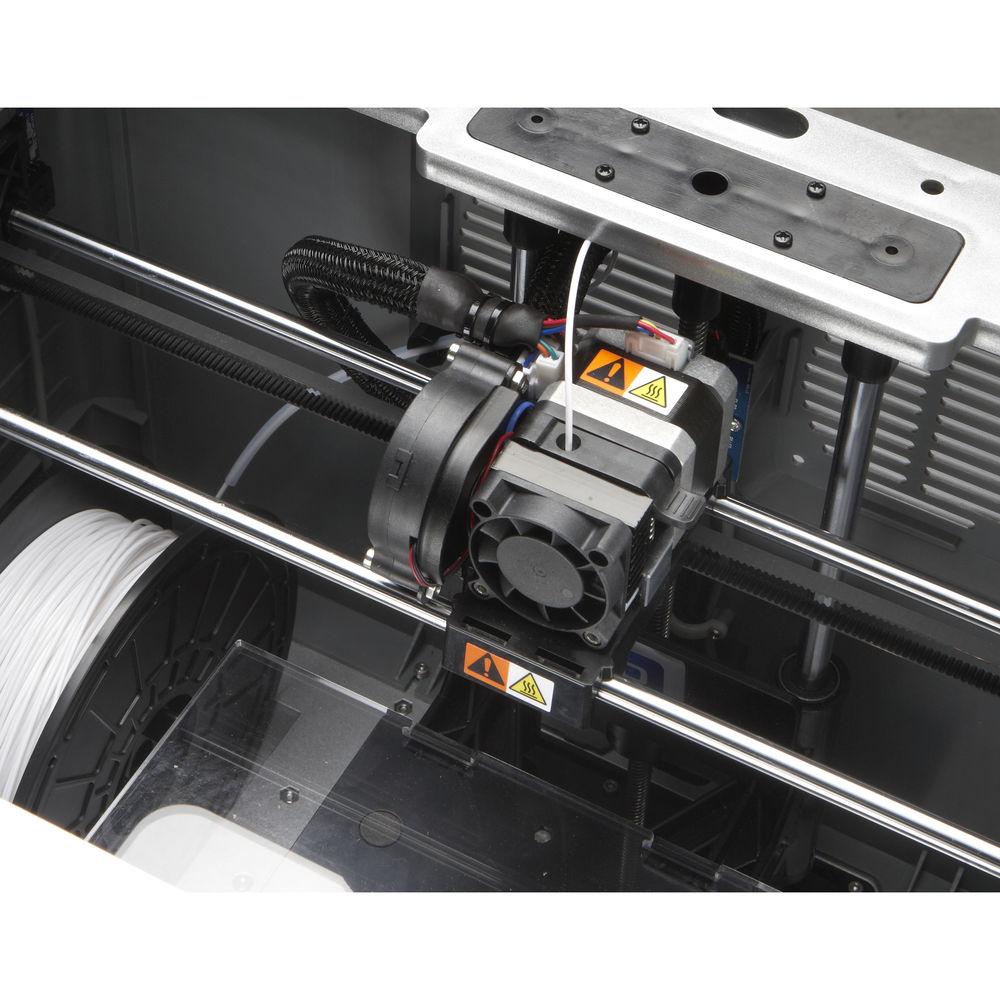

Product description Start 3D printing right out of the box with the Dremel 3D Idea Builder, thanks to its pre-installed extruder. The enclosed workspace features a removable build plate, internal storage for the included filament spool, and a cooling fan. There is also a 3.5" full color IPS touchscreen for you to select your model from the SD card or the USB cable. The Dremel 3D Idea Builder can only build .g3drem files. The included computer software can handle .g3drem, .3dremel, and .STL files. How to 3D Print with Dremel:
1. Create a Dremel account, login, and start exploring 3D models and projects.
2. Download the 3D models you would like to build.
3. Connect to upload your model via SD card or USB cable.
4. Watch your model take shape as the Idea Builder builds layer by layer.
5. After it's done printing, let your 3D model cool down and then remove with the included object removal tool. Features - Easy to Use
- It's easy to build objects with the Dremel on-board software and color touchscreen, which enables a preview of each model before you build. Additionally, the Dremel 3D Idea Builder comes equipped with a pre-installed extruder so you don't have to install it yourself. This makes setup as simple as plugging in your printer, and you're ready to build. You can start turning your ideas into models and projects in minutes.
- Clean. Quiet. Contained.
- The Idea Builder features a door that closes to keep out dust and prying fingers. This fully enclosed workspace also stabilizes the temperature for an optimal build and reduces noise so your models build quietly in the background while you do other things. And it's UL Certified as well.

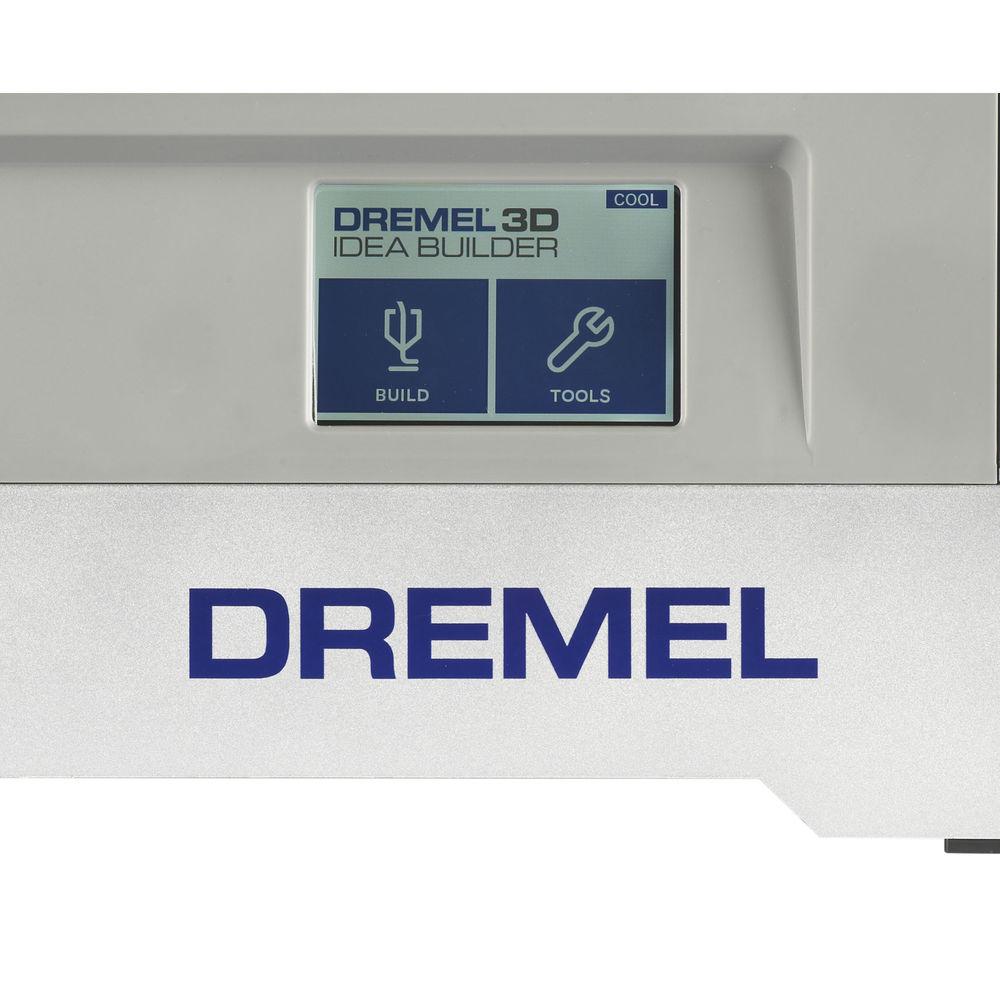

- Touchscreen Panel
- Your Dremel 3D Idea Builder is fully operational even without hooking it up to a computer. With the full color touchscreen, you can select models to build, and can control your print process with Start, Stop, and Pause buttons. The touchscreen even displays helpful information and the printing status of your model.
UPC: 080596038809 In the Box Dremel 3D Idea Builder 3D Printer One Filament Spool Spool Lock Power Cable USB Cable SD Card Build Tape Object Removal Tool Unclog Tool Leveling Sheet Limited 1-Year Warranty for Non-Commercial Use Limited 60-Day Warranty for Commercial Use Table of Contents
|
Upload User Manual
Have you got an user manual for the Dremel 3D Idea Builder 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDremel 3D 3D20-01 Specs | | | Print Technology | Fused Filament Fabrication (FFF), Marketed as Fused Deposition Modeling (FDM) | | Build Volume | 9 x 5.9 x 5.5" / 22.9 x 14.99 x 14.0 cm | | Number of Extruders | 1 | | Layer Resolution | XY Axis: 100 to 300 micron / 0.1 to 0.3 mm (3 Settings) | | Extruder Nozzle Temperature | 446°F / 230°C | | Filament Compatibility | 1.75 mm Diameter:
PLA | | | | Build Area Type | Enclosed | | Build Plate Features | Manual Leveling | | Filament Spool Storage | Internal | | 3D Scanner | No | | Monitoring Camera | No | | | | Wired Connections | 1 x USB Type-A (USB 2.0) | | Wi-Fi | None | | Media Card Slots | 1 x SDHC | | | | Supported Operating Systems | Linux (Version Unspecified)
Windows (Version Unspecified)
macOS X 10.8 or Later | | | | AC Input Power | 120 VAC, 60 Hz | | Operating Temperature | 60 to 84°F / 15 to 28°C | | Dimensions (W x H x D) | 19.1 x 15.7 x 13.2" / 48.51 x 39.88 x 33.53 cm | | Weight | 19.5 lb / 8.8 kg (Without Filament) | | | | Package Weight | 34.55 lb | | Box Dimensions (LxWxH) | 22.8 x 19.2 x 17.3" |
