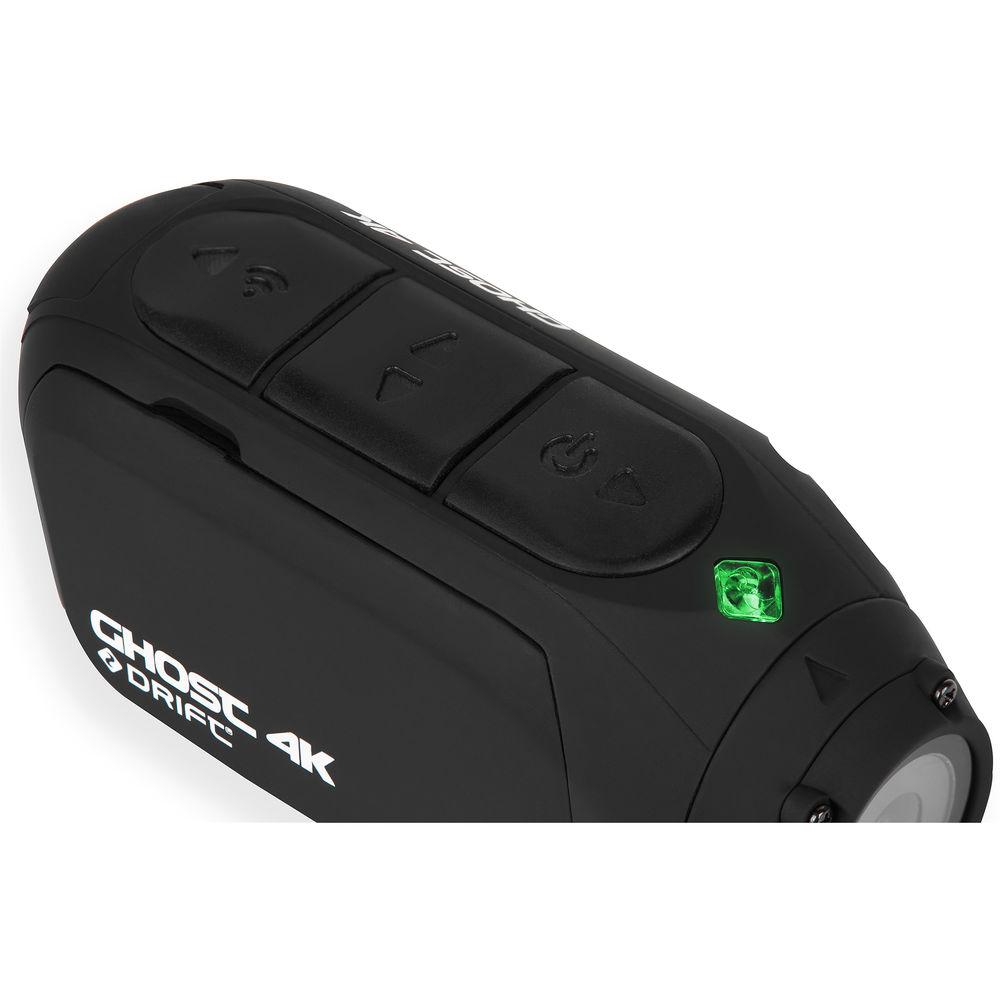

User Manual for Drift Ghost 4K Action Camera Click to enlarge the picture
Contents of the user manual for the Drift Ghost 4K Action Camera
- Product category: Sports & Action Cameras Drift
- Brand: Drift
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Drift Sports & Action Cameras
 |
User manual for the Drift Ghost 4K Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Drift product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Drift user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Drift product will considerably shorten its lifespan!
|

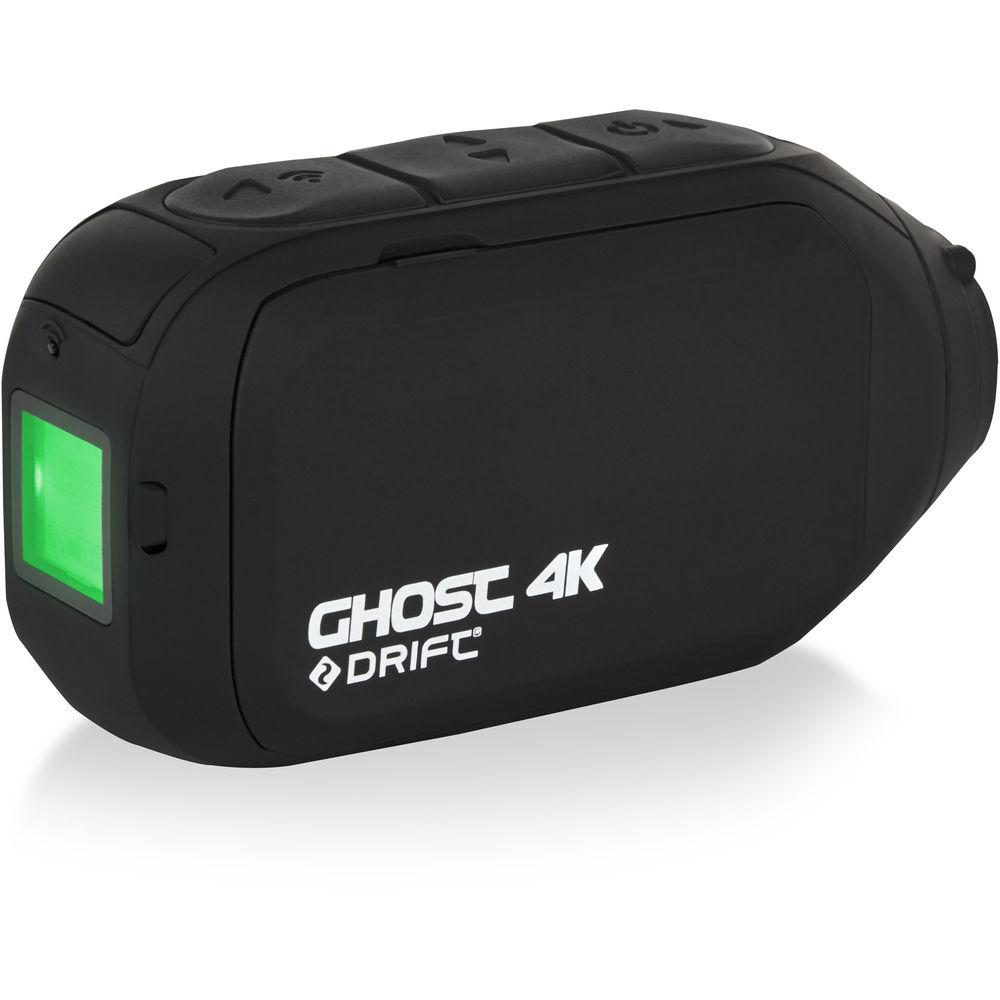

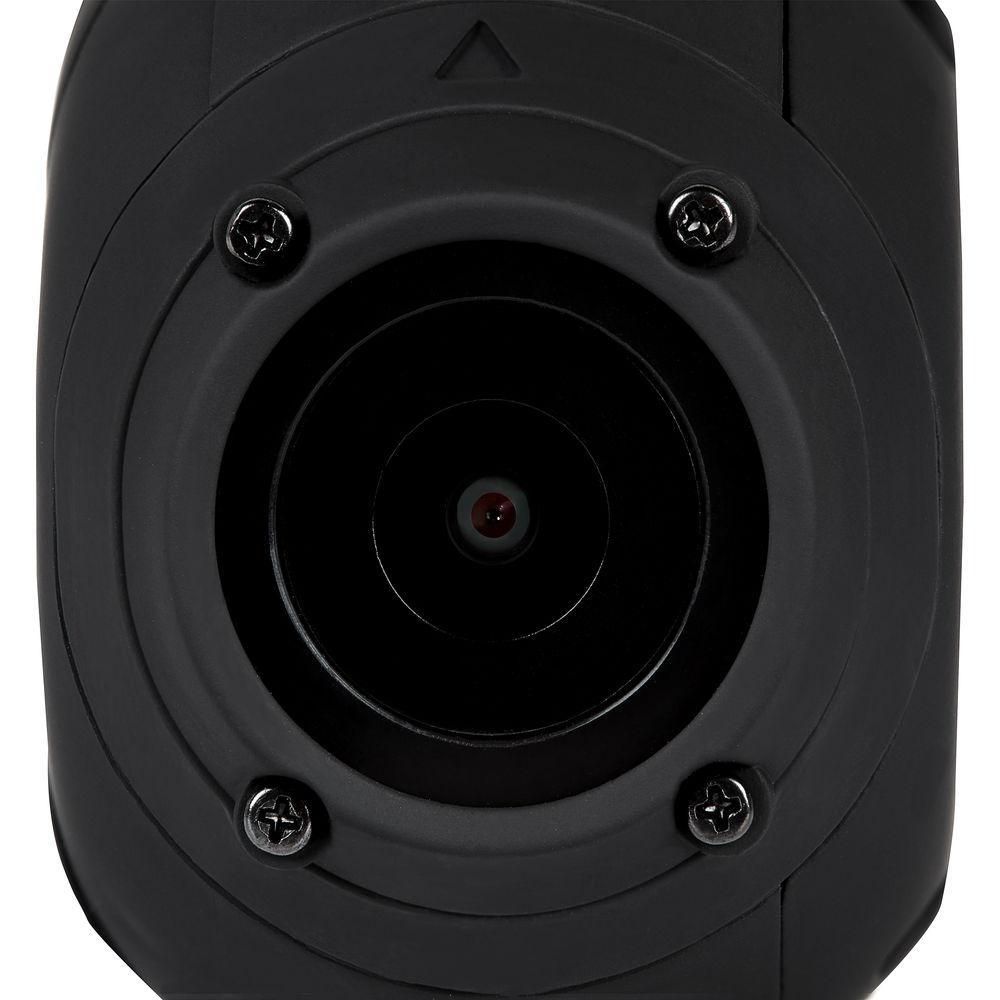

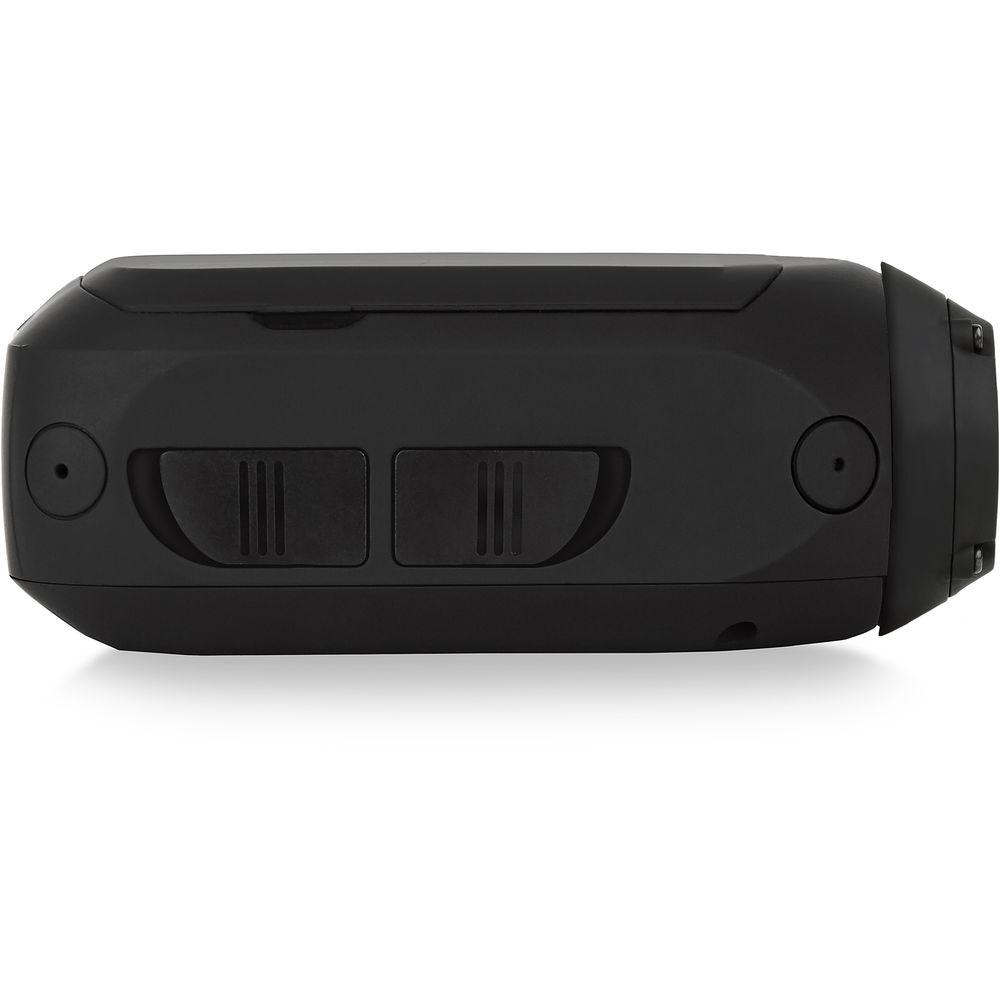

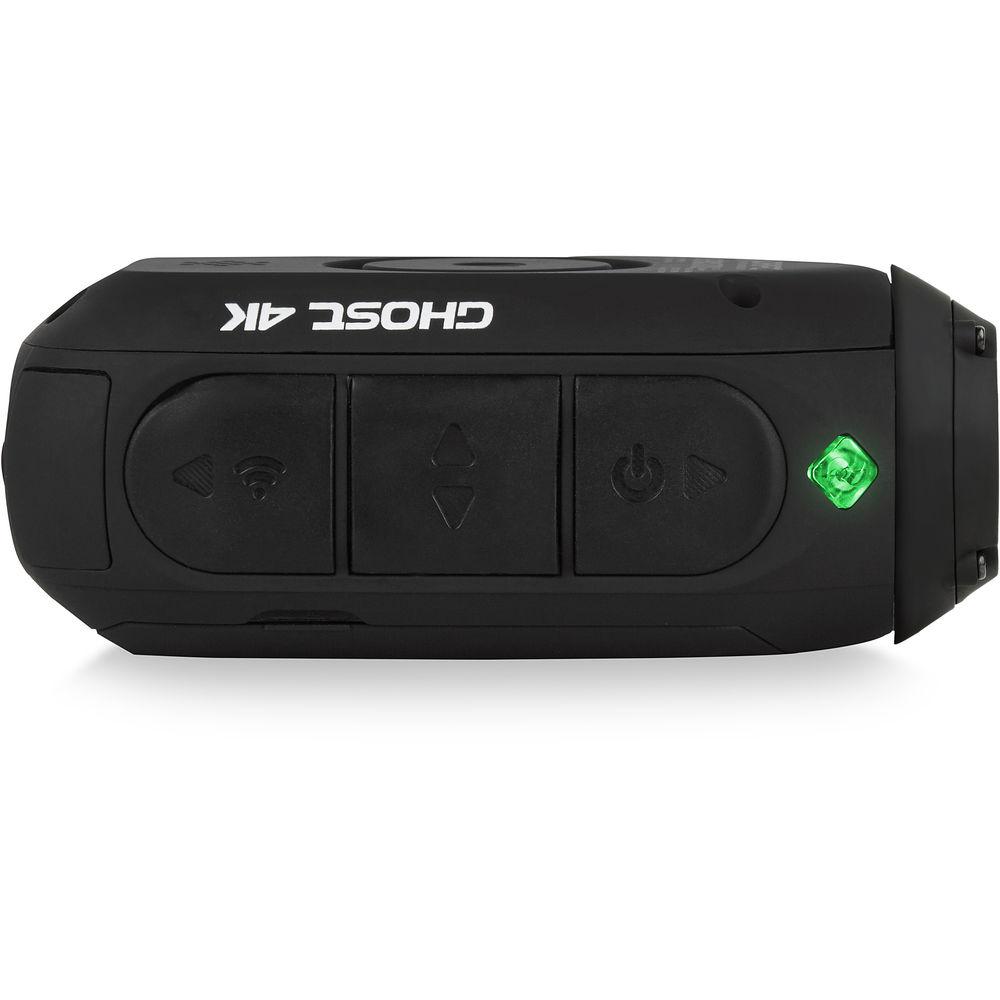

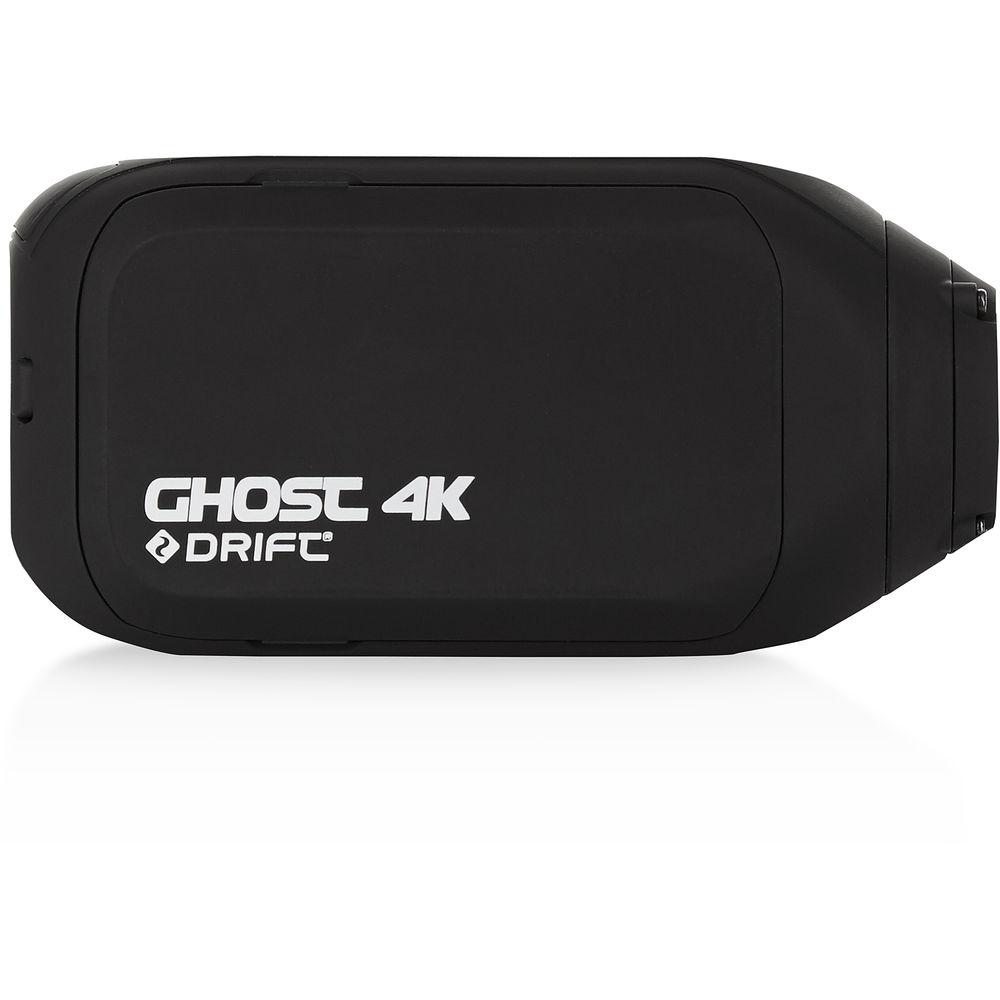

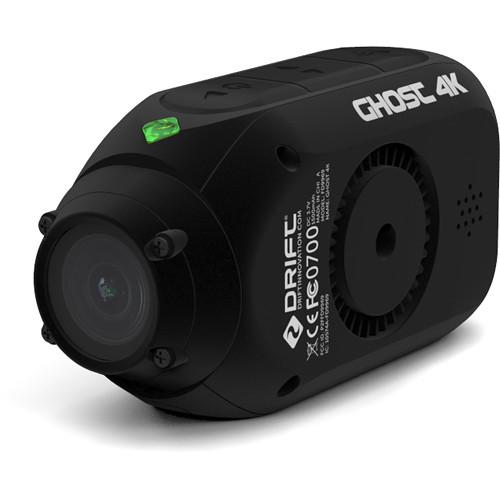

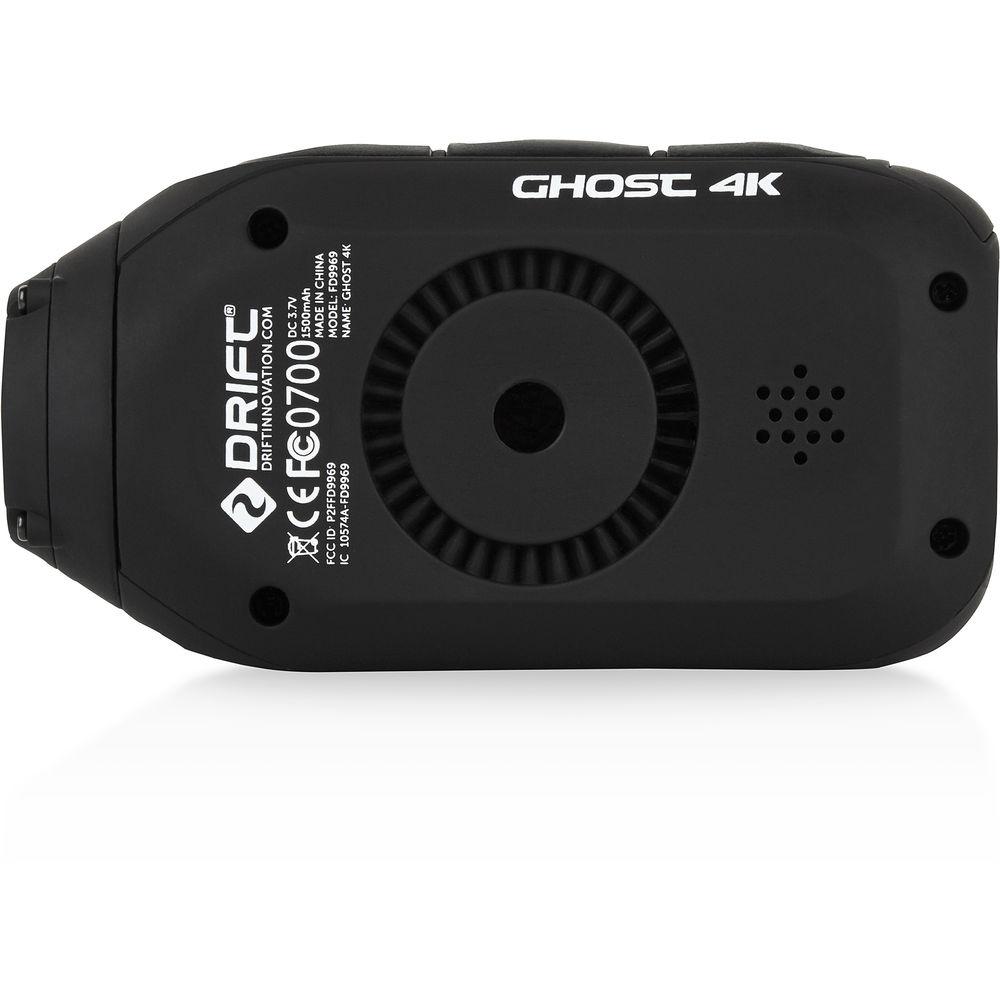

Product description The popular Ghost series continues in a 4K version with the Drift Ghost 4K Action Camera. The Ghost 4K is a bullet-style action cam that records up to DCI 4K resolution at 25 fps and Ultra HD 4K at 30 fps. Full HD 1080p resolution can be captured at up to 120 fps for slow motion, and 720p at the much higher frame rate of 240 fps for even slower-motion playback. Photos can be shot at up to 12MP individually or in bursts of multiple images, and time-lapse recording is also supported.
The Ghost 4K features dual built-in microphones, one on the front and one on the rear, to capture dynamic sound while reducing wind noise, and also supports an optional external microphone that can be connected into a USB port using an included USB-to-mic adapter cable. The camera also offers internal digital video stabilization in 1080p mode to compensate for camera shake and minimize blur. Another very useful function is the ability to switch from sleep to record in an instant with just a single press of a button.
The Ghost 4K has a modular design with a side dock that supports an optional Drift LCD module or included/optional battery modules. A 1500mAh battery is built in and a 500mAh external battery module is additionally included, while larger capacity battery modules are also available sold separately. The optional LCD module allows you to set up and review your shots and access settings, but the Ghost 4K also has a small screen on the rear that displays basic settings, such as the selected resolution and frame rate. For storage, the Ghost 4K has 4GB of built-in NAND flash memory and additionally supports up to 128GB microSD cards.
The Drift Life mobile app for iOS/Android is provided as a free download with the camera and allows you to remotely control start/stop recording, capture photos, and access your recordings from up to 33 ft away. The app also lets you live stream your recordings to platforms such as Facebook Live. The Ghost 4K connects to the app via built-in Wi-Fi.

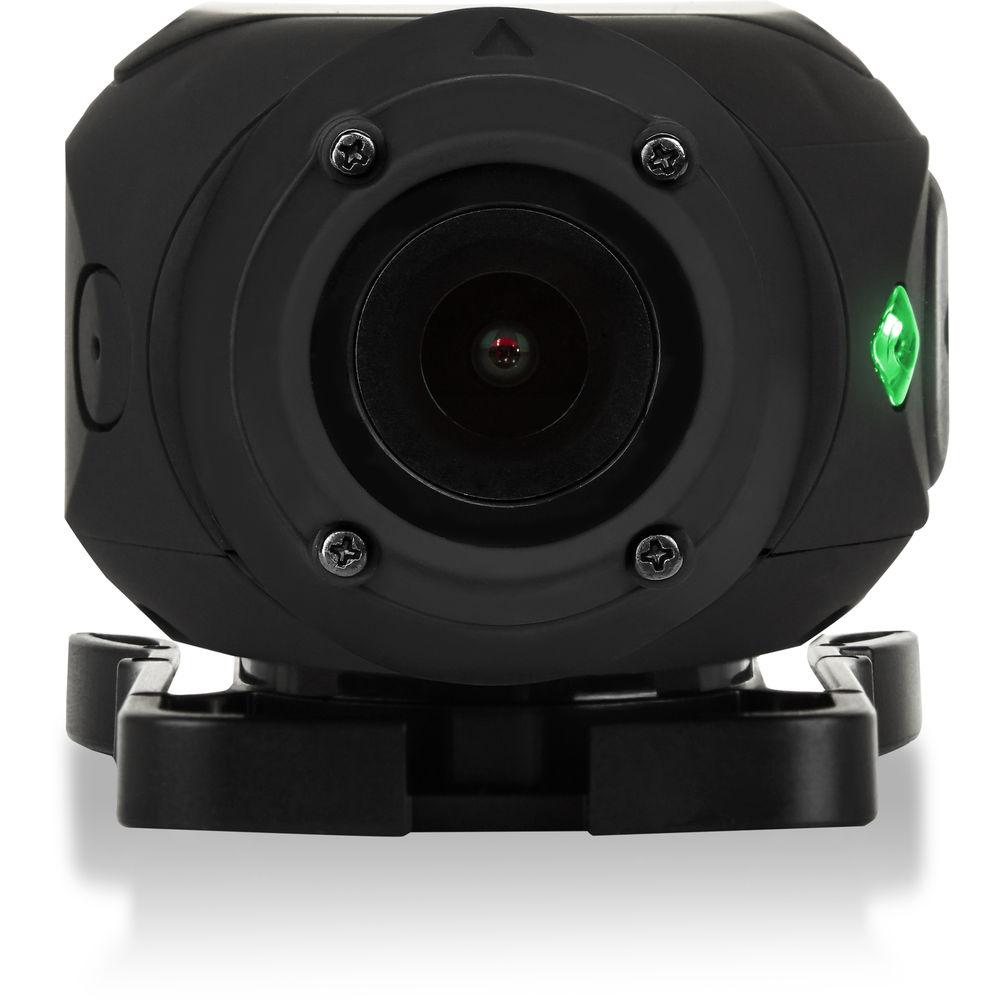

Supplied accessories include curved and flat adhesive mounts for attaching the camera to pretty much any object (such as a helmet), and a mounting clip for securing the camera into these mounts by quick-release functionality. A wrist-wearable Bluetooth remote control is also included that allows you to control main functions from a distance. - Key Features
-
- Bullet-style, modular 4K action camera
- DCI 4K resolution at 25 fps, Ultra HD 4K at 30 fps
- Full HD 1080p resolution at up to 120 fps, 720p at up to 240 fps
- 12MP still images (individual or in bursts)
- Time-lapse recording
- Dual built-in microphones
- External mic support
- Internal digital video stabilization in 1080p mode
- Sleep to record switching with a single press of a button
- Side dock supports an optional Drift LCD module or included/optional battery modules
- 1500mAh built-in battery
- 500mAh external battery module included (higher capacities supported)
- Optional LCD module supported
- Small display screen on the rear with resolution, frame rate, and other basic settings
- 4GB of built-in NAND flash memory
- Supports for up to 128GB microSD cards
- Built-in Wi-Fi
- Includes Drift Life remote control mobile app for iOS/Android
- Live streaming via app
- Includes Bluetooth remote control, mounting accessories, and more
UPC: 610696084866 In the Box Drift Ghost 4K Action Camera 500mAh Battery Module Bluetooth Remote Control Remote Control Strap Universal Clip Flat Adhesive Mount Curved Adhesive Mount USB to Mic Input Adapter Cable Mini USB Cable Limited 1-Year Warranty User Manual PDF 2.9mbdvuavvaxuefzxfsdruraxtyyaeytusvasf Table of Contents
|
Upload User Manual
Have you got an user manual for the Drift Ghost 4K Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDrift Ghost Specs | | | Sensor | 1-Chip 1/2.3" CMOS | | Color Filter | Bayer | | Sensor Resolution | 12 MP | | Effective Pixels | 12 MP (Photo) | | | | Minimum Focusing Distance | 19.7" / 50.0 cm | | Fixed Focus | Yes | | Angle of View | Ultra Wide: 140°
Wide: 115°
Medium: 90° | | | | Recording Media | x Internal Flash Memory, microSD/HC/XC microSD card Class 10 or higher supported, in up to 128 GB | | Video Format | 4096 x 2160p at 25 fps (MP4 via H.264)
3840 x 2160p at 24/25/30 fps (MP4 via H.264)
2704 x 1520p at 24/25/30/60 fps (MP4 via H.264)
1920 x 1080p at 24/25/30/50/60/100/120 fps (MP4 via H.264)
1280 x 720p at 25/30/48/50/60/200/240 fps (MP4 via H.264) | | Aspect Ratio | 16:9
17:9 | | Slow Motion Mode | 240 fps Recorded at 1280 x 720p
200 fps Recorded at 1280 x 720p
120 fps Recorded at 1920 x 1080p
100 fps Recorded at 1920 x 1080p | | Still Image Resolution | JPEG: 12 Megapixel
JPEG: 8 Megapixel
JPEG: 5 Megapixel | | Audio Format | AAC | | | | Exposure Metering | Center-Weighted | | Remote Control | Bluetooth (Included) | | | | Image Stabilization | Digital | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Built-In Light/Flash | Light - No
Flash - No | | Wi-Fi | Yes | | Accessory Shoe | None | | Tripod Mount | 1/4" - 20 | | | | Inputs | 1 x USB Micro-B | | Outputs | None | | Microphone Input | Yes Via included USB adapter cable | | Headphone Jack | None | | | | Battery | Rechargeable Battery Pack, 1500 mAh | | Charging Method | USB | | Power Adapter | None | | Dimensions (W x H x D) | 1.7 x 3.2 x 1.2" / 4.3 x 8.2 x 3.1 cm | | Weight | 4.23 oz / 120 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.2 x 5.2 x 3.5" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
