Product description

  • Drift Ghost X Action Camera

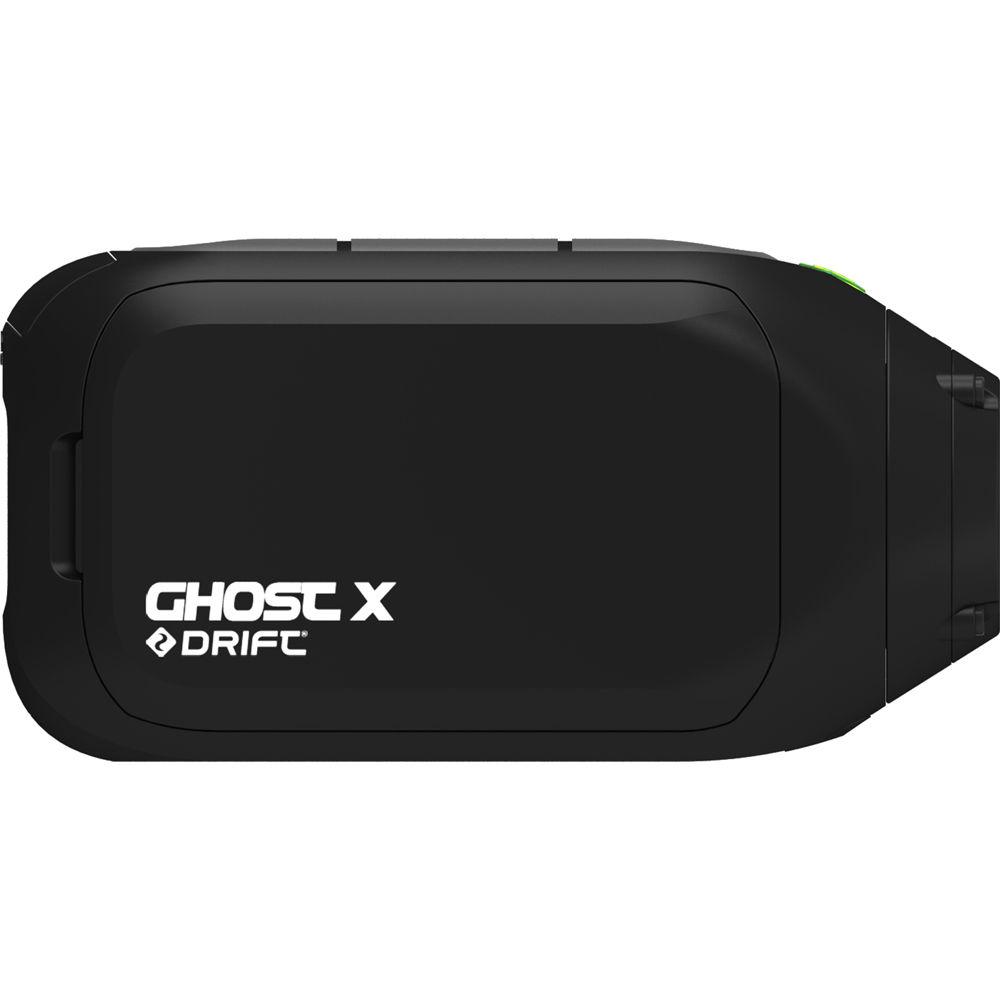

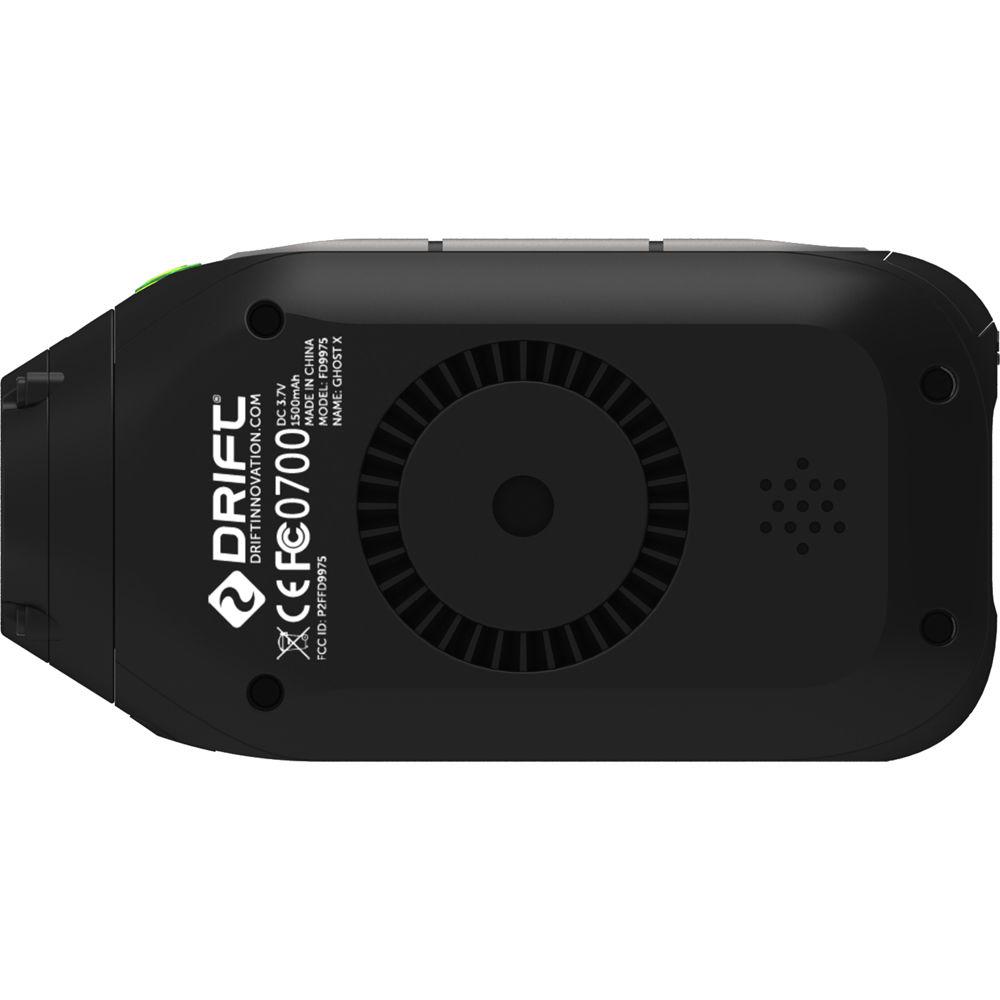

Use the compact, water-resistant Ghost X Action Camera from Drift when shooting outdoors while in motion, and in areas that require a rugged design. The camera records 1080p30 MP4/H.264 video, 12MP stills, and has a five-hour battery life which is extendable to eight hours with an added battery module.

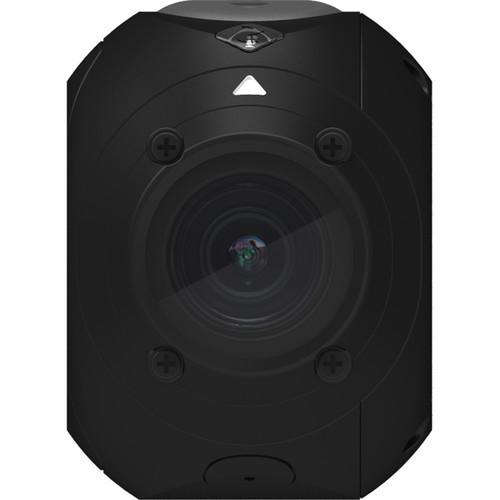

A 140° lens has a focal length of 3.8mm for a wide field of view and rotates 300°. The 4MP CMOS sensor is designed to provide high quality images in low light. The camera housing features an IPX4 rating to make sure water doesn't affect the camera's operation. The camera features a built-in mic and a speaker, and also includes a USB mic adapter to connect an external mic with a 3.5mm plug.

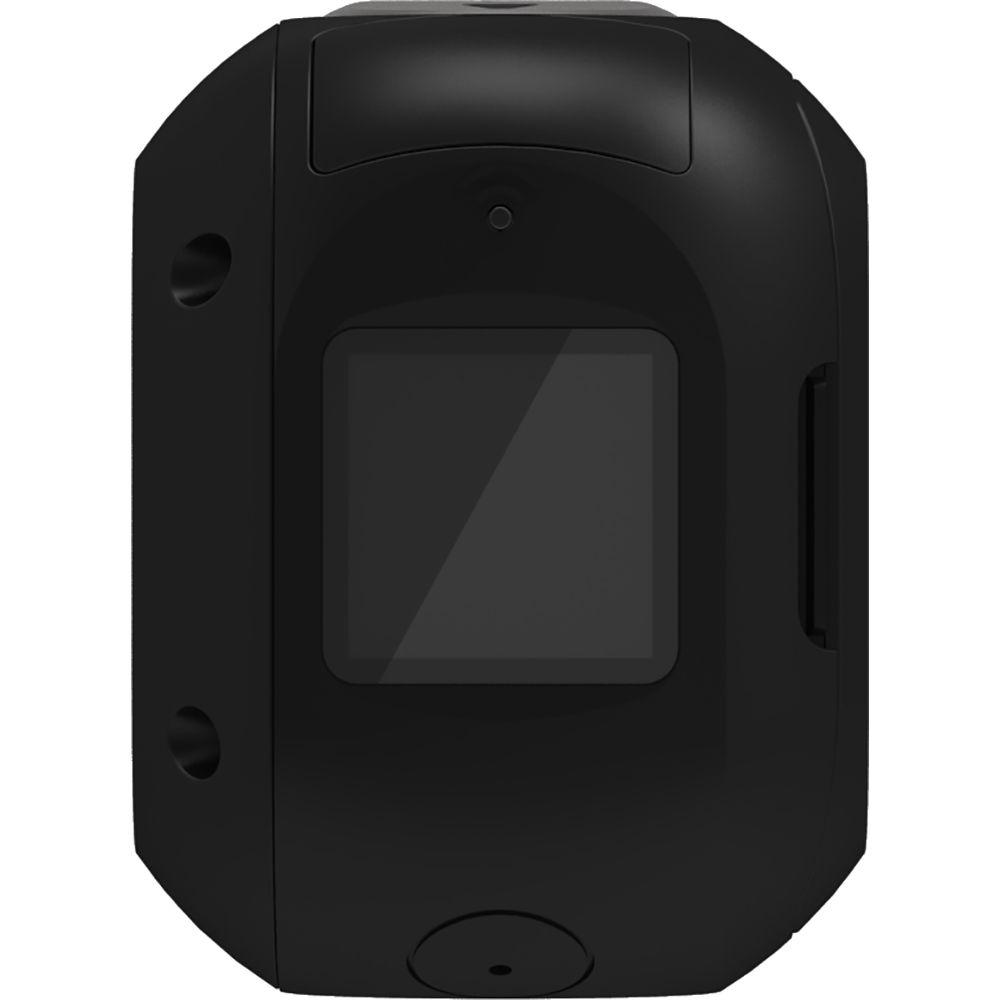

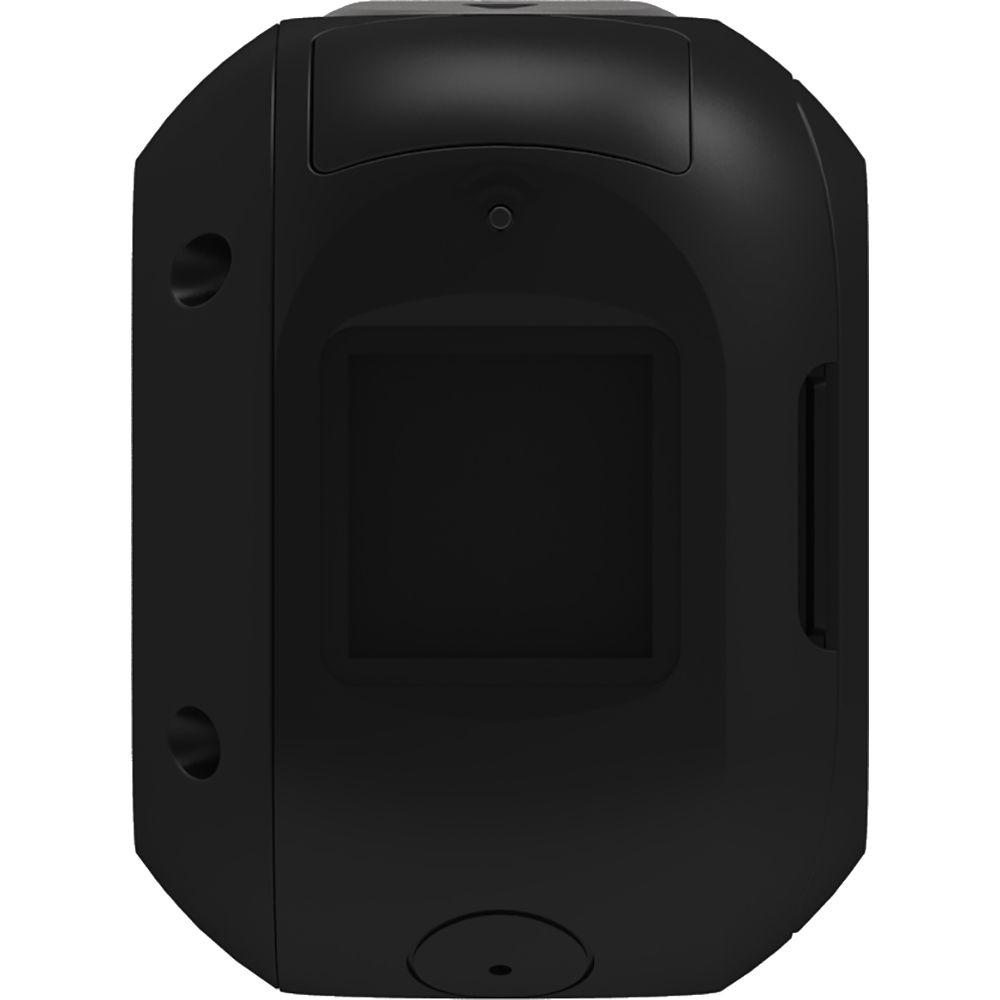

The LCD screen allows you to configure camera settings such as video resolution, exposure, and ISO, and view your battery and record status. The camera is charged via a mini-USB port, and using a separately available mini-USB adapter, you can output your photos or video via A/V or HDMI. There is an internal 1500mAh battery pre-installed, and a 500mAh removable external battery is included to extend your battery life. You can choose to install an optional 1500mAh battery for a total of 3000mAh and up to 8 hours of battery life.

The Ghost X records to a microSD/HC/XC card and can be controlled via 2.4 GHz Wi-Fi with the Drift Life smartphone app for iOS or Android. The small form factor of the Ghost X allows the camera to be mounted on a variety of surfaces and gear with the included custom mounts.
  • 4MP CMOS sensor records a maximum of 1080p30 MP4/H.264 video and 12MP stills
  • 140° wide field of view, 3.5mm focal length lens, 300° lens rotation

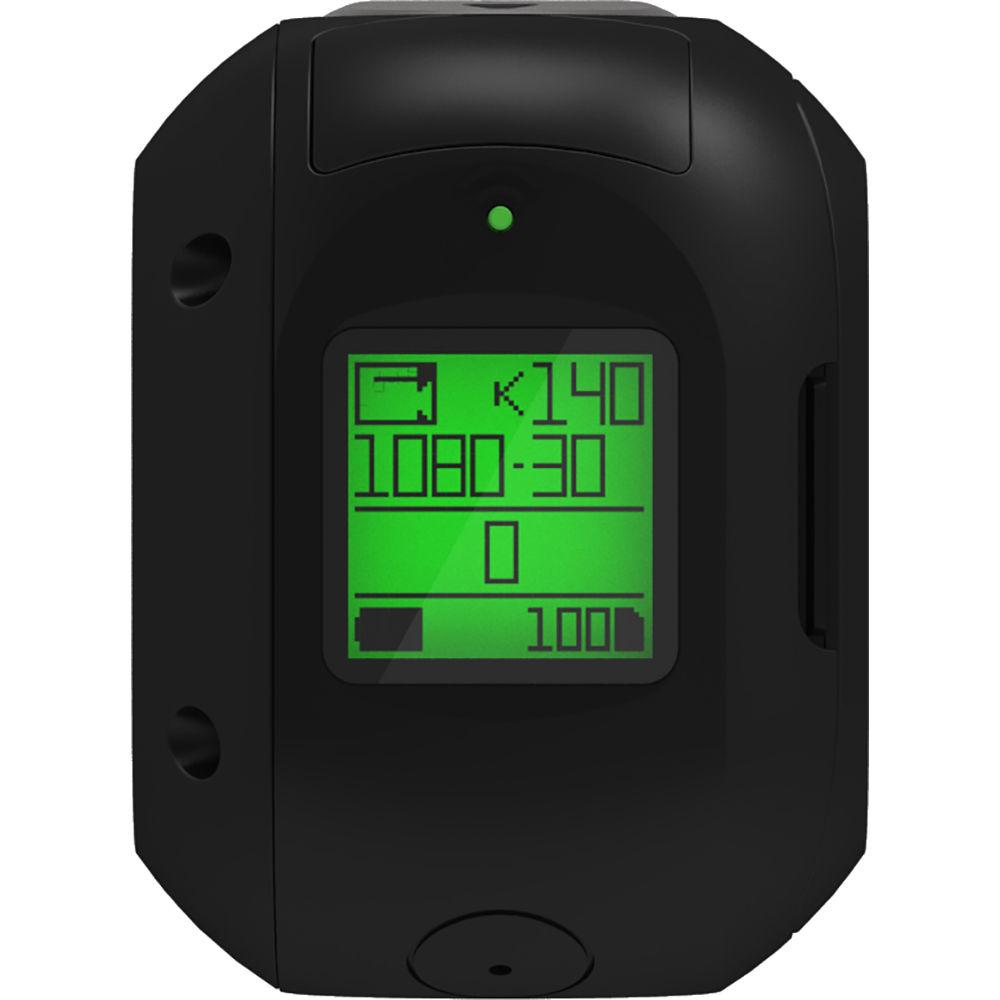

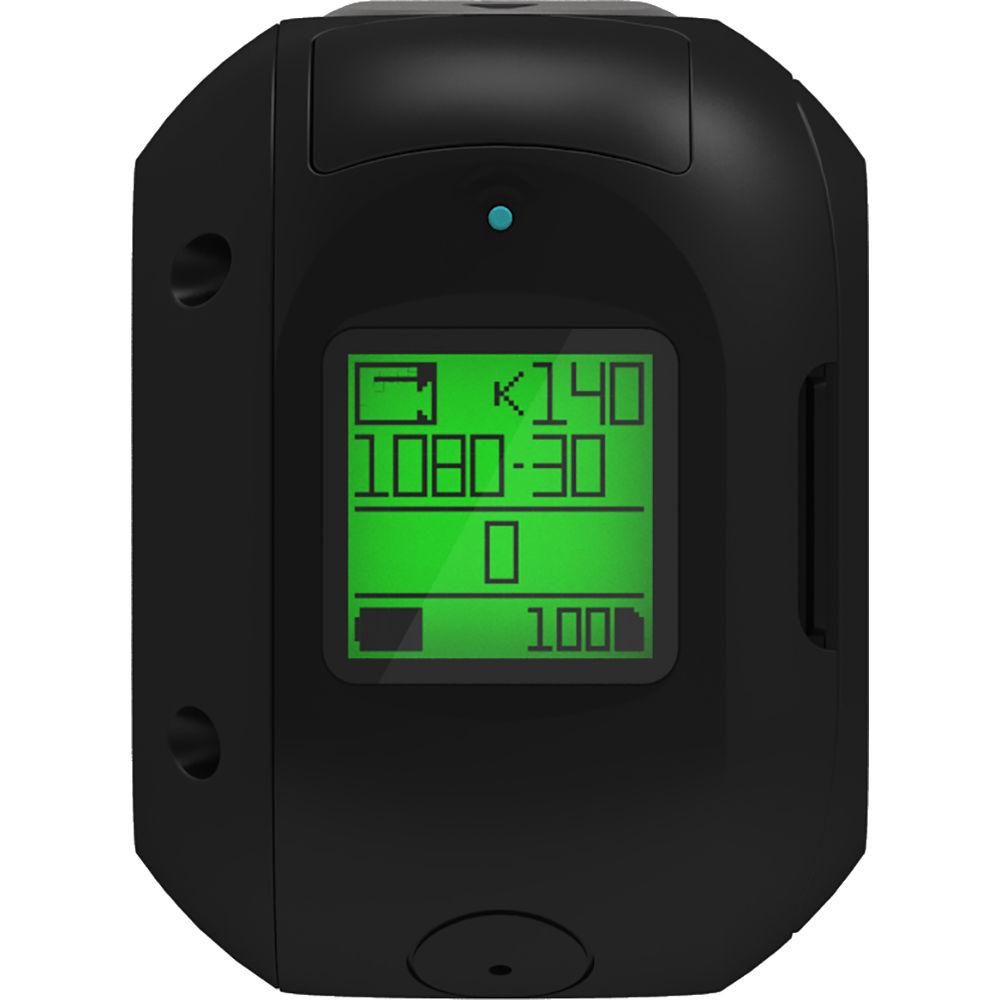

  • LCD screen shows battery and record status, and provides access to settings such as photo/video modes, exposure, ISO, and resolution
  • Mini-USB port for charging and A/V or HDMI video/photo output via separately available USB adapter
  • An external battery module (up to 1500mAH, available separately) can be added for up to 8 hours of recording
  • 2.4 GHz Wi-Fi for connection with the Drift Life app for iOS and Android to control your camera and to edit and share your videos and photos
  • Multiple mount types, a USB mic converter, a mini-USB charging cable, a reset tool, and a 500mAh removable battery are included
UPC: 610696084859 In the Box Drift Ghost X Action Camera
  • 500mAh Battery
  • Universal Clip
  • Flat Adhesive Mount
  • Curved Adhesive Mount
  • USB Mic Converter
  • USB Mini-B Cable
  • Reset Tool
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Drift Ghost X Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Drift Ghost X Specs

    Sensor 1-Chip CMOS
    Color Filter None
    Sensor Resolution 4 MP
    Focal Length 3.8mm
    Minimum Focusing Distance 1.6' / 0.5 m
    Angle of View Medium: 140° (widest)
    System NTSC/PAL
    Recording Media 1 x microSD/HC/XC (128 GB Maximum)
    Video Format 1920 x 1080p at 25/30 fps (H.264)
    1280 x 960p at 25/30 fps (H.264)
    1280 x 720p at 25/30/50/60 fps (H.264)
    854 x 480i at 25/30/50/60 fps (H.264)
    Aspect Ratio 16:9
    Display Type LCD
    Status Display No
    Video ISO Range 100 - 800 (Auto)
    Exposure Modes Modes: Auto, Manual
    IP Rating IPX4
    Built-In Mic Yes
    Built-In Speaker Yes
    Wi-Fi Yes, 802.11b/g
    Tripod Mount None
    Inputs 1 x Mini-USB
    Outputs 1 x Mini-USB
    Microphone Input No
    Headphone Jack No
    Battery Rechargeable Lithium-Ion Battery Pack, 1500 mAh
    Max Runtime: 5 Hours per Charge
    Battery Charge Time: 2 hours
    Charging Method USB
    Charging Time 2.5 Hours
    Power Adapter None
    Dimensions (W x H x D) 1.7 x 3.2 x 1.2" / 43.0 x 82.2 x 31.4 mm
    Weight 4.23 oz / 120 g
    Package Weight 0.815 lb
    Box Dimensions (LxWxH) 5.25 x 5.2 x 2.35"
