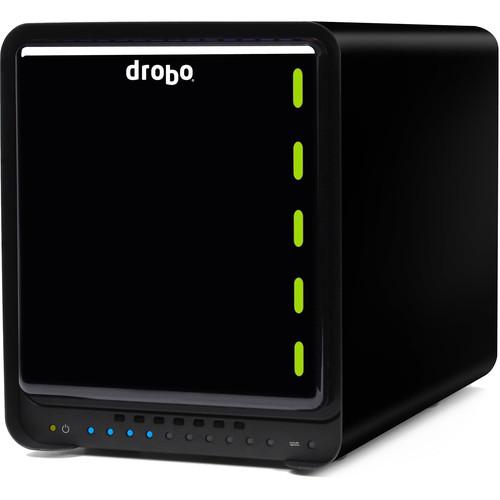

User Manual for Drobo 5C 16TB 5-Bay USB 3.0 Type-C Array Click to enlarge the picture
Contents of the user manual for the Drobo 5C 16TB 5-Bay USB 3.0
- Product category: Hard Drive Arrays Drobo
- Brand: Drobo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Drobo Hard Drive Arrays
 |
User manual for the Drobo 5C 16TB 5-Bay USB 3.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Drobo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Drobo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Drobo product will considerably shorten its lifespan!
|

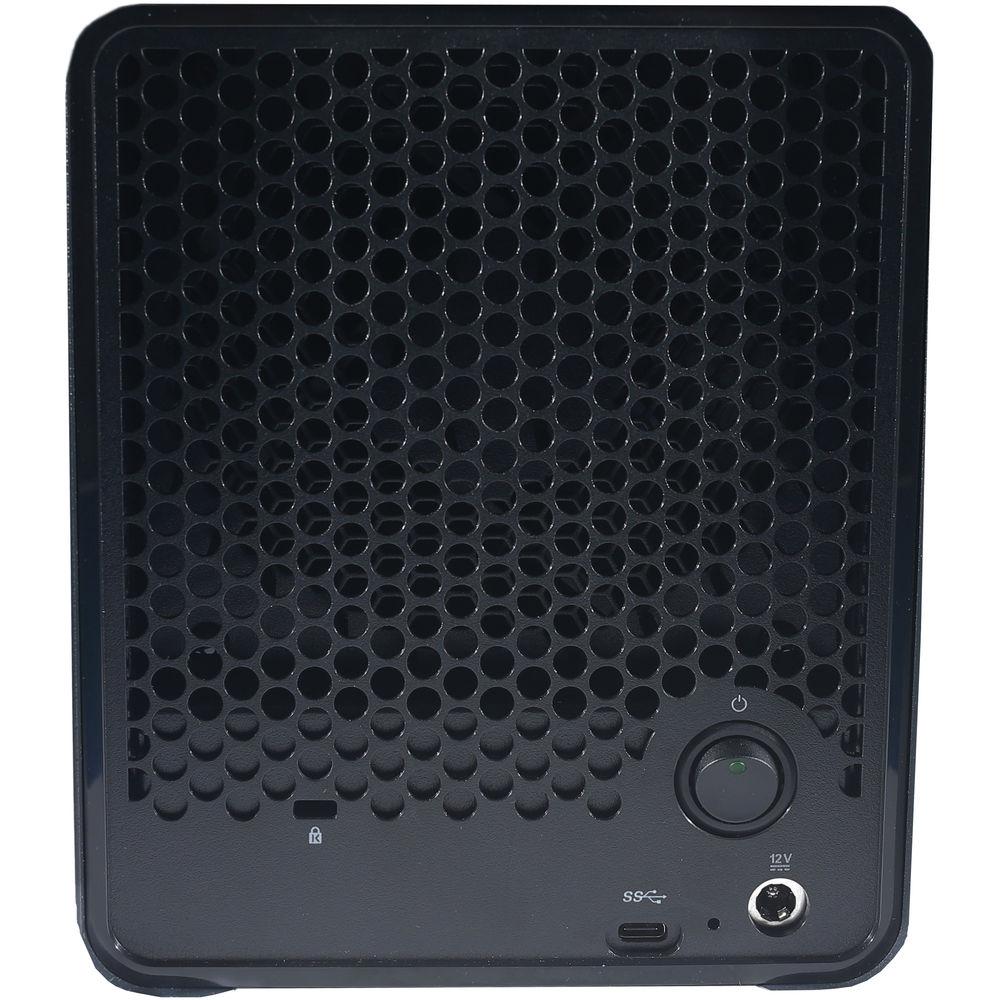

Product description RAID Arrays for Photography and Pro Video Read More szbtzxdudcqdzybzysbafxatyde Designed from the ground up to be an affordable and secure storage array, the 5C 16TB 5-Bay USB 3.0 Type-C Array from Drobo is configured with 4 x 4TB hard drives for a total capacity of 16TB. Overall, it is equipped with five 3.5" SATA drive bays that support SATA III 6 Gb/s and SATA II 3 Gb/s drives. Using separately sold drive carriers, the 5C will also support 2.5" hard drives and SSDs. The Drobo 5C distinguishes itself from the other members of the Drobo "5" series through its single USB 3.0 Type-C port, which operates with data transfer speeds of up to 5 Gb/s.
To facilitate data protection, Drobo's BeyondRAID technology enables single or dual-drive redundancy. If there are any empty drive bays, BeyondRAID allows additional drives to be inserted into the array, where they would be automatically configured. If all drive bays are occupied, simply replace the smallest capacity drive with a larger one and BeyondRAID will handle the rest. BeyondRAID is also what allows drives of varying capacities to work in the same unit, which helps enable future expansion as larger drives become available.
Additional data protection is provided by the included rechargeable battery, which helps protect data stored in the 5C's memory or cache. If there were to be a sudden power loss, the battery allows the Drobo to stay powered long enough for the cached data to be written to an included internal SSD. Cooling is provided by a 120mm variable-speed fan and once installed, the hard drives can be configured to spin down when they're not in use, helping to further reduce noise and energy. Also, the LEDs can be dimmed to reduce light pollution when working in sensitive environments. The Drobo 5C is compatible with both Windows and Mac and also includes a 5.9' USB 3.0 Type-C to Type-A cable, a 100-240 VAC power supply that runs at 50-60 Hz, and a 9.2' power cord. Protection is provided by a limited 1-year warranty within the US or outside the EU, or a limited 2-year warranty within the EU, as well as 90 days of business hour tech support. Using the 1 or 3-year DroboCare warranty renewals, your Drobo 5C is eligible for up to 5 years of coverage. General Features - Protection From Drive Failure
- The Drobo 5C protects your data from a single or dual hard drive failures. In the case of a drive failure, Drobo will immediately rebuild data using the remaining available space. In the background, Drobo performs "data scrubbing and self-healing," which means it validates your data and repairs any inconsistencies.
- Power Protecting Your Critical Data
- Drobo doesn't just protect against drive failures, but also from potential data loss after a power outage. The Drobo 5C includes advanced battery backup technology that helps protects data in memory or cache. During a sudden power loss, Drobo protects in-progress operations by saving them to an internal SSD. The operations are resumed and written to the disks once power is restored. This helps ensure important information is safe and sound. The battery recharges itself and is designed to last for the life of your Drobo.
- Economical Capacity Expansion
- The Drobo 5C supports volume sizes up to 64TB and allows for expansion into this size. You can grow in to this, and provide only the capacity you need today. When more storage space is needed, simply add another drive, or replace a drive with a larger one. Drobo allows you to mix and match hard drives of virtually any size or brand. This empowers you to buy suitable drives when you need more space, instead of paying today for capacity you will not need until the future.
- Second Volume for Backups or Full Disk Encryption
- The Drobo 5C allows for a second, fixed volume size and limits the amount of storage space you specify for the second volume. The rest of the capacity is available for storing other files.
Two Ways to Use a Second Volume:
1. Apple's Time Machine: Specify the maximum size Time Machine can use for its versioned backups. This solves the problem of Time Machine slowly consuming all space on a drive.
2. Encrypted Hard Drive: Some information requires additional protection. A second volume can create an encrypted disk using Windows and OS X / macOS tools. Sensitive data is protected with a password. Access to sensitive data is password protected. - Simple Setup - No Tools Needed

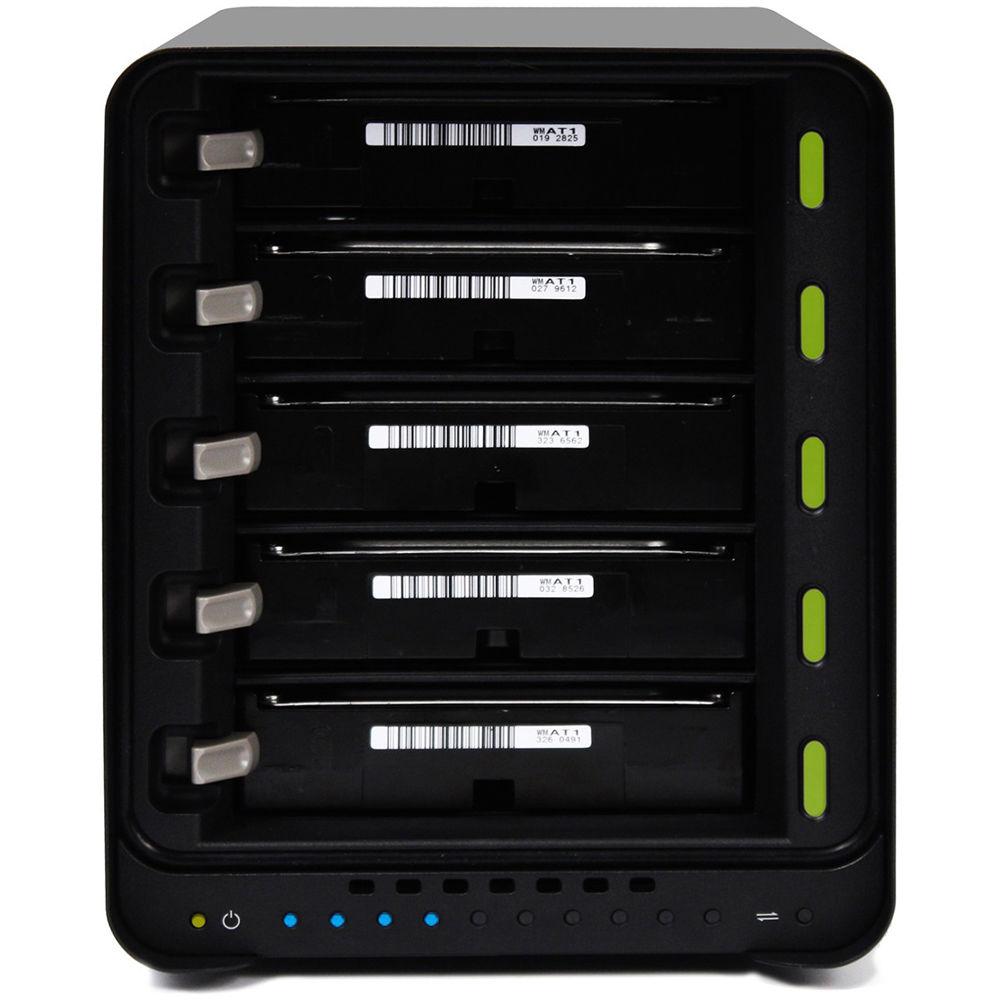

- With the Drobo 5C, 3.5" hard drives slide right into the drive bays. No metal drive carriers or assembly screws are necessary, unless 2.5" drives are being used. The Drobo chassis is constructed of metal and the magnetic front cover is easy to install or remove.
- As Easy as Reading a Traffic Light

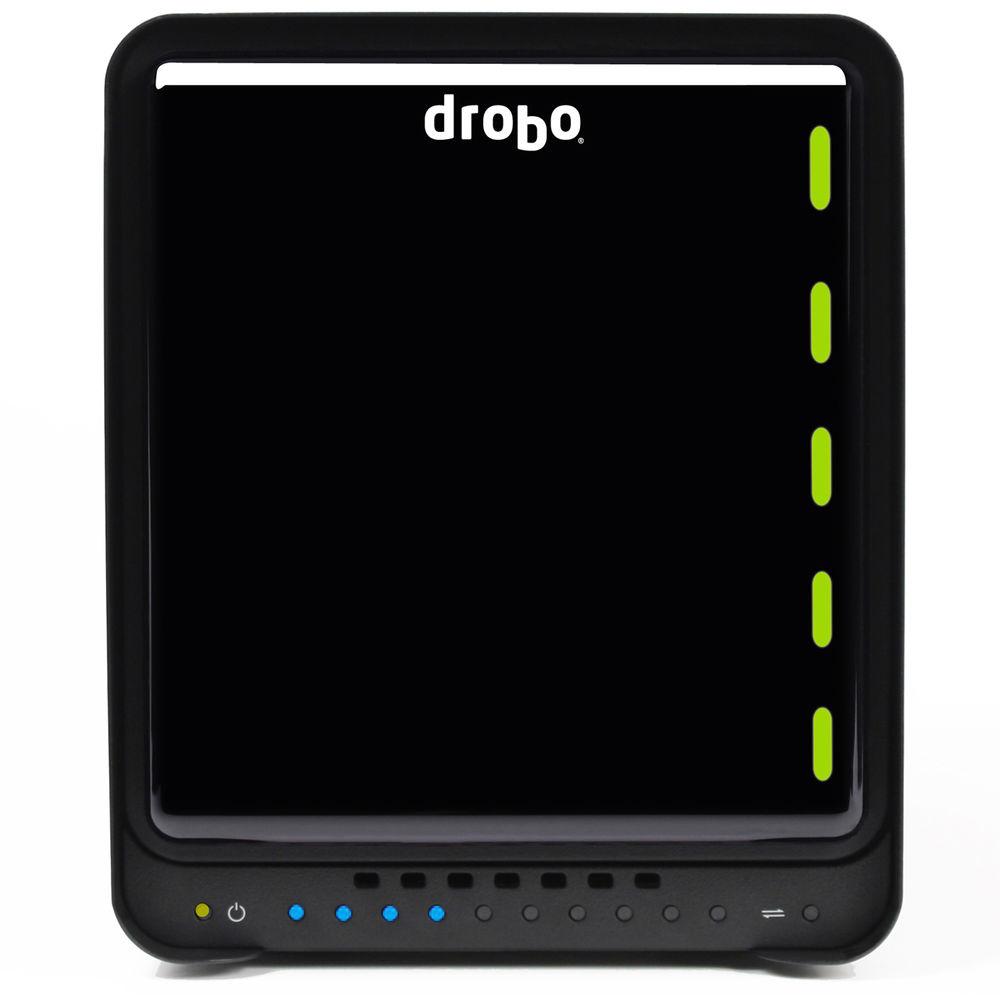

- Lights on the front show alerts of what's happening, making monitoring your Drobo 5C as easy as reading a traffic light. Green, yellow, or red lights show the drive status, and each blue LED light along the bottom represents 10% utilization, showing how much capacity is consumed.
UPC: 816604020166 In the Box Drobo 5C 16TB 5-Bay USB 3.0 Type-C Array (4 x 4TB) USB 3.0 Type-C to Type-A Cable (5.9') Power Cord (9.2') Limited 1-Year Warranty More info from Drobo szbtzxdudcqdzybzysbafxatyde Table of Contents
|
Upload User Manual
Have you got an user manual for the Drobo 5C 16TB 5-Bay USB 3.0 Type-C Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDrobo DDR4A21-16TB Specs | Capacity | - 16 TB (4 x 4 TB) | | Connectivity | - 1 x USB 3.0 Type-C Port | | Drives and Expansion | - Up to five 3.5" SATA II/III hard disk drives or solid state drives
- Expandable by adding drives or hot-swapping drives with larger ones | | BeyondRAID Features | - Thin Provisioning
- Instant Expansion
- Mixed Drive Size Utilization
- Automatic Protection Levels
- Single or Dual-Disk Redundancy
- Virtual Hot Spare
- Data-Aware
- Drive Re-ordering | | Management | - Drive bay indicator lights, capacity gauge, status lights
- Drobo Dashboard version 2.8.3 or later | | Operating System Support | - Apple Macintosh macOS 10.10 and higher
- Microsoft Windows 10, 8, and 7 | | File System Options | - Apple macOS: HFS+
- Microsoft Windows: NTFS | | Hardware Features | - Carrier-less drive bays
- Power fail protection with internal battery
- Metal chassis and cover
- Kensington Lock Port for security (lock not included) | | Additional Software Features | - Drive Spin Down
- Dim Lights
- macOS Time Machine Support | | Power and Cooling | External Power Supply
- AC Input: 100 to 240 VAC, 2 A, 50 to 60 Hz
- DC Output: 12 V, 10 A, 120 W max
Fixed, 120 mm variable speed cooling fan | | Form Factor | - Desktop | | Color | - Black | | Dimensions | 10.3 x 5.9 x 7.3" / 26.2 x 15.0 x 18.5 cm | | Weight | 8.5 lb / 3.9 kg (without hard drives, power supply, or packaging) | | | | Package Weight | 21.9 lb | | Box Dimensions (LxWxH) | 16.9 x 14.7 x 14.0" |
