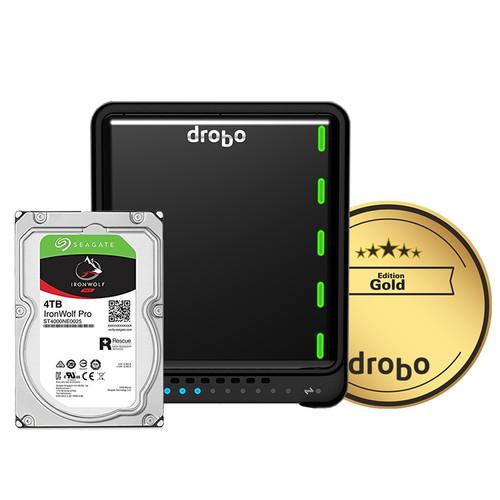

User Manual for Drobo 5D3 12TB 5-Bay Thunderbolt 3 Array Click to enlarge the picture
Contents of the user manual for the Drobo 5D3 12TB 5-Bay Thunderbolt 3
- Product category: Hard Drive Arrays Drobo
- Brand: Drobo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Drobo Hard Drive Arrays
|
User manual for the Drobo 5D3 12TB 5-Bay Thunderbolt 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Drobo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Drobo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Drobo product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The 5D3 12TB 5-Bay Thunderbolt 3 Array (Gold Edition) from Drobo improves upon the original 5D3 by pairing it with 3 x 4TB hard drives for a total capacity of 12TB, a 128GB mSATA SSD, and five years of DroboCare warranty services. The 128GB mSATA SSD is installed into the unit's Accelerator Bay and boosts system performance by placing data that is read or written into SSD storage. When the data is active, it is stored in the SSD and will be moved back to the hard drive tier as its use decreases. Upon product registration, the extended five-year DroboCare warranty provides hardware replacement, technical support, and migration assistance.
Drobo has designed the 5D3 for media professionals, content creators, and small businesses running Apple Final Cut Pro, Adobe Lightroom, and other I/O intensive applications, or even those who just need to back up terabytes of data. It is equipped with five 3.5" SATA drive bays that support 3.5/2.5" SATA III 6 Gb/s and SATA II 3 Gb/s hard drives and SSDs. The 5D3 distinguishes itself from the original Drobo 5D and 5Dt through the inclusion of Thunderbolt 3 technology, which is accessed through two integrated Thunderbolt 3 ports. While one of the Thunderbolt 3 ports is used to connect the 5D3 to your compatible system, the second one is used to daisy-chain up to six Thunderbolt devices together, including one 5K display or two 4K displays. The Thunderbolt 3 ports also provide 15W of charging power for Thunderbolt 3 laptops, and there is also one USB 3.0 Type-C port, which transfers data at speeds up to 5 Gb/s. Please be aware that the 5D3's Thunderbolt 3 ports are only compatible with Mac, while the USB 3.0 Type-C port can be used with both Windows and Mac. Mac support includes APFS/macOS High Sierra.
To facilitate data protection, Drobo's BeyondRAID technology enables single- or dual-drive redundancy. If there are any empty drive bays, BeyondRAID allows additional drives to be inserted into the array, where they would be automatically configured. If all drive bays are occupied, simply replace the smallest capacity drive with a larger one and BeyondRAID will handle the rest. BeyondRAID is also what allows drives of varying capacities to work in the same unit, which helps enable future expansion as larger drives become available.
Additional data protection is provided by the included rechargeable battery, which helps protect data stored in the 5D3's cache. If there were to be a sudden power loss, the battery allows the Drobo to stay powered long enough for the cached data to be written to non-volatile storage. Cooling is provided by a 120mm variable-speed fan and once installed, the hard drives can be configured to spin down when they're not in use, helping to further reduce noise and energy. Also, the LEDs can be dimmed to reduce light pollution when working in sensitive environments. The Drobo 5D3 also includes a 3.3' Thunderbolt 3 cable and a 6.0' power cord with a power supply that operates using 100-240 VAC at 50-60 Hz. The supported operating systems are macOS 10.12 and higher, plus Windows 8 and 10. General Features - Data Protection and Expandability
- Built on award-winning BeyondRAID technology with single- or dual-drive redundancy, the Drobo 5D3 protects your data without any user interaction, even in the event of multiple drive failures.
Drives can be added or hot-swapped and updated in real time for storage expansion with zero downtime. If you're running low on space, the lights on the front tell you what to do. Just add a drive in an empty bay or remove a smaller drive and replace it with a larger one. Consult the online capacity calculator to determine how the choice of drive size, number of drives, and protection levels affect available capacity. - The Power of Thunderbolt 3 and Flexibility of USB Type-C
- Thunderbolt 3 technology provides performance that's twice as fast as the previous generation. This optimizes your performance when transferring large volumes of data.
The Drobo 5D3 is equipped with dual Thunderbolt 3 ports for daisy chaining on Mac only. Connect up to six Thunderbolt devices and/or a non-Thunderbolt monitor at the end of the chain. The 5D3 supports one 5K monitor, or two 4K monitors, and 15W of power for device charging. By having 5D3 arrays in a chain, you can have up to 300TB of usable capacity and achieve throughput by enabling the bi-directional 40 Gb/s performance of Thunderbolt 3. It is compatible with systems running supported versions of macOS X, including APFS/macOS High Sierra, as well as Windows, with Windows compatibility only available using the USB 3.0 Type-C port. - Enhanced Time Machine Support
- Drobo is compatible with Apple's Time Machine, which will consume the capacity of an external storage system. By utilizing the Drobo Dashboard, you can simply allocate capacity limits for backups and data storage.
- Capacity and Performance
- The Drobo 5D3 includes a built-in Accelerator Bay, with a 128GB mSATA SSD. Their patented Accelerator Cache technology keeps a copy of your most frequently accessed data to deliver fast speeds. The accelerator cache can dramatically speed up loading large photo libraries and other I/O intensive operations, smoothing out workflows allowing you to optimize productivity for applications such as Apple Final Cut Pro X and Adobe Lightroom.
- Power Protecting Your Critical Data
- Drobo doesn't just protect you from a drive failure, but also from potential data loss after a power outage. Often found only in arrays that cost tens of thousands of dollars, the Drobo 5D3 includes a battery that protects all data in the memory, or cache, that is, data on its way to the drives.
During a sudden power loss, the internal battery keeps the Drobo alive long enough for the data to be written to non-volatile storage. The battery recharges itself and lasts for the life of the product. - Drobo Dashboard
- Drobo Dashboard is the single tool used to centrally manage all of your Drobo devices. Drobo Dashboard displays status as if all of your Drobos were right in front of you with the same status lights and capacity gauge that are on the front panel. All administration tasks are a single click away.
- Designed for You
- Drobo devices have always been space efficient and the Drobo 5D3 is no exception. It is designed to provide high capacity, without taking up a lot of your valuable desk space. It is compact because of Drobo's carrier-less drive bay design, allowing drives to be installed very close to each other. Users can also dim the lights and configure drives to spin down when not in use. Included is a Thunderbolt 3 cable.
- DroboCare
- DroboCare extends beyond the standard hardware warranty, providing you with additional peace of mind. If an issue occurs, Drobo will immediately send you a replacement Drobo and pay for shipping both ways. Phone support is also available 24/7, beginning the day you activate DroboCare. In addition to hardware replacement and technical support, DroboCare also includes migration assistance.
Please note that DroboCare does not cover failed hard drives. UPC: 816604020807 In the Box Drobo 5D3 12TB 5-Bay Thunderbolt 3 Array (3 x 4TB, Gold Edition) Thunderbolt 3 Cable (3.3' / 1.0m) Power Cord with Power Supply (6.0' / 1.8m) 128GB mSATA SSD Limited 5-Year DroboCare Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Drobo 5D3 12TB 5-Bay Thunderbolt 3 Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDrobo 5D3 Specs | | | Number of Bays | 5 x 2.5"/3.5"
1 x mSATA | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x USB Type-C (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA II, SATA III | | Form Factor | Desktop | | Hot-Swap Support | Yes | | OS Compatibility | macOS 10.12 or Later
Windows 10
Windows 8 | | | | Total Raw Capacity | 12 TB (3 x 4 TB) | | Type | Hard Disk Drive | | Interface | SATA | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2 A | | DC Input Power | 12 VDC at 10 A | | | | Security Features | Kensington Security Slot | | | | Material of Construction | Metal | | Cable Length | 3.3' / 1.01 m | | Cooling | 1 x 120 mm Fan | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.9 x 7.3 x 10.3" / 149.9 x 185.4 x 261.6 mm | | Weight | 8.5 lb / 3.9 kg |
