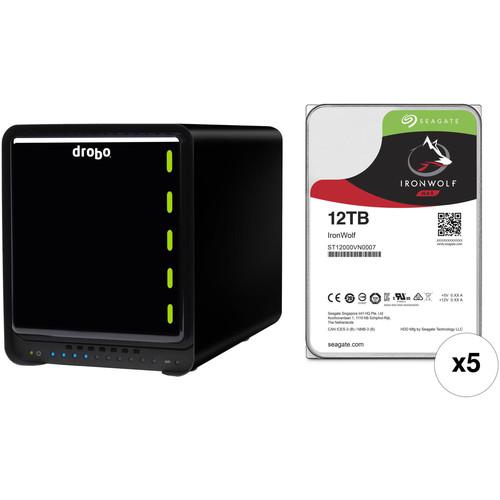

User Manual for Drobo 5D3 60TB 5-Bay Thunderbolt 3 Enclosure Kit with Seagate NAS Drives

• Product category: Hard Drive Arrays Drobo
• Brand: Drobo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Drobo Hard Drive Arrays

Product description

• Drobo 5D3 5-Bay Thunderbolt 3 Enclosure
  • Drobo 5D3 - Lightning Fast Storage for Your Creative Workflow
  Designed for media professionals, content creators, and small businesses running Apple Final Cut Pro, Adobe Lightroom, and other I/O intensive applications, or even those who just need to back up terabytes of data, the 5D3 5-Bay Thunderbolt 3 Enclosure from Drobo is equipped with five 3.5" SATA drive bays that support SATA III 6 Gb/s and SATA II 3 Gb/s drives. The 5D3 distinguishes itself from the original Drobo 5D and 5Dt through the inclusion of Thunderbolt 3 technology, which is accessed through two integrated Thunderbolt 3 ports. While one of the Thunderbolt 3 ports is used to connect the 5D3 to your compatible system, the second one is used to daisy-chain up to six Thunderbolt devices together, including one 5K display or two 4K displays. The Thunderbolt 3 ports also provide 15W of charging power for Thunderbolt 3 laptops, and there is also one USB 3.0 Type-C port, which transfers data at speeds up to 5 Gb/s. Please be aware that the 5D3's Thunderbolt 3 ports are only compatible with Mac, while the USB 3.0 Type-C port can be used with both Windows and Mac. Mac support includes APFS/macOS High Sierra.

  To help complement the speeds of Thunderbolt 3, the 5D3 has been built with Drobo's Accelerator Bay, which uses an separately sold mSATA SSD to boost system performance. It accomplishes this by placing data that is read or written into SSD storage. When the data is active, it is stored in the SSD and will be moved back to the hard drive tier as its use decreases.

  To facilitate data protection, Drobo's BeyondRAID technology enables single or dual-drive redundancy. If there are any empty drive bays, BeyondRAID allows additional drives to be inserted into the array, where they would be automatically configured. If all drive bays are occupied, simply replace the smallest capacity drive with a larger one and BeyondRAID will handle the rest. BeyondRAID is also what allows drives of varying capacities to work in the same unit, which helps enable future expansion as larger drives become available.

  Additional data protection is provided by the included rechargeable battery, which helps protect data stored in the 5D3's cache. If there were to be a sudden power loss, the battery allows the Drobo to stay powered long enough for the cached data to be written to non-volatile storage. Cooling is provided by a 120mm variable-speed fan and once installed, the hard drives can be configured to spin down when they're not in use, helping to further reduce noise and energy. Also, the LEDs can be dimmed to reduce light pollution when working in sensitive environments. The Drobo 5D3 also includes a 3.3' Thunderbolt 3 cable and a 6.0' power cord with a power supply that operates using 100-240 VAC at 50-60 Hz. Protection is provided by a limited 2-year warranty.

  General Features

  Data Protection and Expandability
  • Built on award-winning BeyondRAID technology with single- or dual-drive redundancy, the Drobo 5D3 protects your data without any user interaction, even in the event of multiple drive failures.

    Drives can be added or hot-swapped and updated in real time for storage expansion with zero downtime. If you're running low on space, the lights on the front tell you what to do. Just add a drive in an empty bay or remove a smaller drive and replace it with a larger one. Consult the online capacity calculator to determine how the choice of drive size, number of drives, and protection levels affect available capacity.
  The Power of Thunderbolt 3 and Flexibility of USB Type-C
  • Thunderbolt 3 technology provides performance that's twice as fast as the previous generation. This optimizes your performance when transferring large volumes of data.

    The Drobo 5D3 is equipped with dual Thunderbolt 3 ports for daisy chaining on Mac only. Connect up to six Thunderbolt devices and/or a non-Thunderbolt monitor at the end of the chain. The 5D3 supports one 5K monitor, two 4K monitors, and 15W of power for device charging. By having 5D3 arrays in a chain, you can have up to 300TB of usable capacity and achieve throughput by enabling the bi-directional 40 Gb/s performance of Thunderbolt 3. It is compatible with systems running supported versions of Mac OS X, including APFS/macOS High Sierra, as well as Windows, with Windows compatibility only available using the USB 3.0 Type-C port.
  Enhanced Time Machine Support
  • Drobo is compatible with Apple's Time Machine, which will consume the capacity of an external storage system. By utilizing the Drobo Dashboard, you can simply allocate capacity limits for backups and data storage.
  Capacity and Performance
  • The Drobo 5D3 includes a built-in Accelerator Bay, with an mSATA card holder (mSATA card not included). Their patented Accelerator Cache technology keeps a copy of your most frequently accessed data to deliver fast speeds. The accelerator cache can dramatically speed up loading large photo libraries and other I/O intensive operations, smoothing out workflows allowing you to optimize productivity for applications such as Apple Final Cut Pro X and Adobe Lightroom.
  Power Protecting Your Critical Data
  • Drobo doesn't just protect you from a drive failure, but also from potential data loss after a power outage. Often found only in arrays that cost tens of thousands of dollars, the Drobo 5D3 includes a battery that protects all data in the memory, or cache, that is, data on its way to the drives.

    During a sudden power loss, the internal battery keeps the Drobo alive long enough for the data to be written to non-volatile storage. The battery recharges itself and lasts for the life of the product.
  Drobo Dashboard
  • Drobo Dashboard is the single tool used to centrally manage all of your Drobo devices. Drobo Dashboard displays status as if all of your Drobos were right in front of you with the same status lights and capacity gauge that are on the front panel. All administration tasks are a single click away.
  Designed for You
  • Drobo devices have always been space efficient and the Drobo 5D3 is no exception. It is designed to provide high capacity, without taking up a lot of your valuable desk space. It is compact because of Drobo's carrier-less drive bay design, allowing drives to be installed very close to each other. Users can also dim the lights and configure drives to spin down when not in use. Included is a Thunderbolt 3 cable.
  UPC: 816604020302
• 5 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
  • Drobo 5D3 - Lightning Fast Storage for Your Creative Workflow
  Store your critical data on the 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate. The IronWolf is designed for corporate environments that utilize multi-drive systems and servers. The NAS hard drive provides an ample storage capacity of 12TB and is built to withstand 24 x 7 operations. It is outfitted with a SATA III interface and mounted in an available 3.5" drive bay. Other notable features include a 7200 rpm spin rate and 256MB of cache to deliver a maximum sustained data transfer rate of 210 MB/s.
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  • IronWolf performance provides limited lag times or downtime for users during high traffic time for the NAS
  • Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
  • IronWolf provides 256MB of cache memory allowing your NAS to serve data faster
  • Enables user workload rate of 180TB/year
  • Designed for always-on, always-accessible 24×7 performance
  UPC: 763649123386

• 5D3 5-Bay Thunderbolt 3 Enclosure areyzwcyrycestxxavtyawzsdctycv
• Thunderbolt 3 Cable (3.3')
• Power Cord with Power Supply (6')
• Limited 2-Year Warranty

• 5 x Seagate - 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Drobo 5D3 5-Bay Thunderbolt 3 Enclosure

  Number of Bays	5 x 3.5"
  Connections	2 x USB Type-C (Thunderbolt 3 (40 Gb/s)) 1 x USB Type-C (USB 3.1 Gen 1 (5 Gb/s))
  Compatible Drive Interface	SATA III
  Form Factor	Desktop
  Operating System Support	Windows, macOS/OS X

  Power Source	AC Adapter
  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 2 A
  DC Input Power	12 VDC at 10 A
  Power Consumption	120 W

  Security Features	Kensington Security Slot

  Dimensions (W x H x D)	5.9 x 7.3 x 10.3" / 150.0 x 185.0 x 262.0 mm
  Weight	8.5 lb / 3.9 kg

  Box Dimensions (LxWxH)	13.7 x 13.2 x 10.3"

• 5 x Seagate 12TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	12.00 TB
  Cache Memory	256 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	210 MB/s

  Drive Type	HDD
  Form Factor	3.5"

  Spindle Speed (RPM)	7200 RPM

  Mean Time Between Failures (MTBF)	1000000.00 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	0.8 W (Standby) 0.8 W (Idle)
  Supported Voltage	5 VDC, 12 VDC
  Current	1.8 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.6 x 25.4 x 147.3 mm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	7.8 x 6.0 x 2.4"
