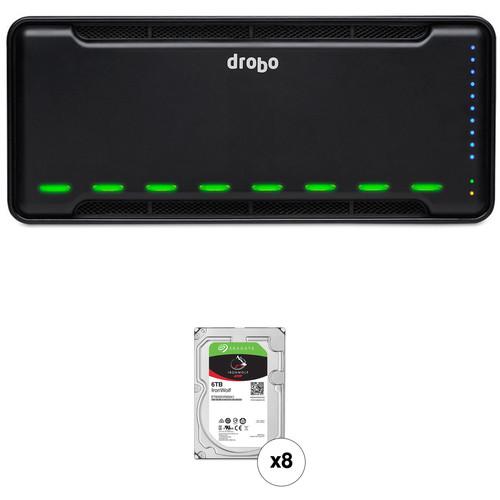

Drobo B810n 48TB 8-Bay NAS Enclosure

User Manual for Drobo B810n 48TB 8-Bay NAS Enclosure Kit with Seagate NAS Drives

• Product category: Network Attached Storage Drives Drobo
• Brand: Drobo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Drobo Network Attached Storage Drives

Product description

• Drobo B810n 8-Bay NAS Enclosure
  • Drobo | Reviews | Products - The Simplicity of BeyondRaid
  Enhanced read and write features found on the B810n 8-Bay NAS Enclosure from Drobo provide rapid data transfers to and from multiple users. The data tiering feature nearly eliminates the delay between multiple read and write processes when used with solid state drives, while the hot data cache feature prefetches data during the read process to predict what data will be read next to enhance read speeds. Combine the enhanced data transfer rates with dual Ethernet failover ports and you have a comprehensive, network-attached storage solution. When used in concert, the bonded Gigabit Ethernet ports provide nearly double the performance that would be achieved with a single port, and they can also be used separately to connect the Drobo to two different networks.

  With the Drobo B810n, you can share files across platforms, as it supports computers running Mac, including macOS High Sierra, as well as Windows and Linux. You can even use the Drobo DR feature to create offsite data backups to ensure your data is safe in the event of system failure, theft, natural disaster, etc. For added peace of mind, Drobo has included a built-in battery designed to power the internal RAM, keeping directory structures safe until the power returns.

  Once the Drobo B810n is set up, you can choose from a large catologue of DroboApps. These apps help to increase the functionality of this NAS storage device with features such as cloud backup services, streaming music and video apps, and much more.

  General Features

  BeyondRAID Technology
  • To expand the storage capacity of an array, BeyondRAID enables additional disk drives to beinserted into empty drive bays. These new drives are automatically and transparently configured for use in the array without user intervention. However, if all drive bays are occupied, simply replace the smallest capacity drive with a higher capacity one and BeyondRAID will do the rest. Unlike traditional RAID arrays, the BeyondRAID technology in Drobo enables different drive capacities to work in the same unit. The B810n supports up to 64TB of storage.

    Features:
    • Thin Provisioning
    • Instant Expansion
    • Mixed Drive Size Utilization
    • Automatic Protection Levels
    • Single or Dual Disk Redundancy
    • Virtual Hot Spare
    • Data Aware
    • Drive Re-ordering
  Hybrid Storage & Tiering
  • The Drobo B810n moves beyond manually tuning an array for applications that have different storage requirements. Its ability to automatically tier frequently used transactional data from stored data that's seldom used enables businesses to consolidate storage resources and share that storage across all connected clients and their applications.

    When using the hybrid storage option, Drobo's Data Aware Tiering leverages high-capacity hard drives (HDDs) for bulk storage and high-performance solid state drives (SSDs) for transfer acceleration. The result is fast redundant storage with a fast read cache for an application-optimized solution that requires no manual tuning.
  Optimized for Business
  • Similar to business applications, Drobo is ideal for building a highly scalable networked storage system or fast backup target.
  Designed for Hosting and Delivering Large Video Files
  • This 2nd generation 8-Bay Drobo can be used with a variety of security surveillance applications as well as hosting large amounts of video contained in a library. It is based on a quad-core Marvell processor with 2GB of RAM and it uses a highly tuned Linux operating system giving it a five times performance boost over its already fast predecessor, the Drobo B800fs.
  Drobo Dashboard
  • Drobo Dashboard is an administration tool to centrally manage all your Drobos. It displays the status of all of your Drobos as if they were right in front of you. In fact, it provides the same status lights and storage capacity usage gauge that are on the front panel of each of your Drobos. This allows you to easily check the health of all your disk drives. Plus, the dashboard handles all administration tasks simply and easily without you needing to become a storage expert.
  Battery Backup Protects Your Data from Power Loss
  • Drobo protects your data from loss in the event of a sudden power outage. This protects directory structures, ensuring Drobo will remount on you computer. Drobo has a battery inside and RAM to keep structures from being lost. When there is a power outage, data is stored on internal flash-based nonvolatile storage. Your data is safe until power returns.
  UPC: 850737006314
• 8 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD
  • Drobo | Reviews | Products - The Simplicity of BeyondRaid
  Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 6TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 128MB cache, providing users with an ample storage capacity and data transfer speeds of up to 195 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 10¹⁵ non-recoverable read errors per bits read, and a workload rate of up to 180TB per year. Protection is provided by a limited 3-year warranty.

  General Features

  Optimized for NAS with AgileArray
  • AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
  Reduced Lag Times
  • Improved performance means reduced lag times or downtime for users during high traffic time for the NAS
  IronWolf Health Management
  • IronWolf Health Management focuses on prevention, intervention, and recovery
  Rotational Vibration (RV) Mitigation
  • IronWolf comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
  Multi-User Environments
  • IronWolf provides a workload rate of 180TB per year
  Cache Memory
  • IronWolf provides 128MB of cache memory, allowing your NAS to serve data faster
  1.0 Million Hours MTBF | Limited 3-Year Warranty
  • This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
  Designed for 24x7 Performance
  • Access your data on your NAS at virtually any time, whether remotely or on site

  Best-Fit Applications

  • 1-8 bay business network attached storage (NAS)
  • Desktop RAIDs and servers
  • Multimedia server storage
  • Private cloud
  UPC: 763649117545

• B810n 8-Bay NAS Enclosure rwbwfqtqrfttxedzyaztybtafbra
• 2 x 6 ft / 1.8m Ethernet Cables
• 6 ft / 1.8m Power Cord
• Limited 1-Year Warranty

• 8 x Seagate - 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Drobo B810n 8-Bay NAS Enclosure

  Number of Bays	8 x 2.5"/3.5"
  Media Card Slots	None
  Connections	2 x RJ45 (Gigabit Ethernet)

  Total Raw Capacity	None
  Type	None
  Flash Memory	None

  Supported Protocols	AFP CIFS/SMB

  OS Compatibility	macOS 10.7 or Later Windows 10 Windows 8 Windows 7 Windows Server 2012 Windows Server 2008

  Power Consumption	82 W
  Power Source	Internal Power Supply
  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 0.75 to 1.8 A

  Operating Temperature	50 to 95°F / 10 to 35°C
  Operating Humidity	5 to 80%
  Storage Temperature	14 to 140°F / -10 to 60°C
  Certifications	CE, CISPR 22 - Class B, FCC, REACH, RoHS, UL, VCCI, WEEE, cUL, as per Manufacturer

  Noise Level	30.4 dBA
  Status Monitoring	LED Indicator
  Dimensions	12.7 x 5.5 x 14.1" / 309.0 x 139.0 x 358.0 mm
  Weight	16.2 lb / 7.4 kg

  Box Dimensions (LxWxH)	17.0 x 15.5 x 11.5"

• 8 x Seagate 6TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD

  Drive Capacity	6.0 TB
  Cache Memory	128 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	195 MB/s

  Drive Type	HDD
  Form Factor	3.5"
  Noise Level	2.7 dB (Idle) 2.8 dB (Active)

  Spindle Speed (RPM)	7200 RPM

  Encryption	None
  Endurance (Total Bytes Written)	180 TB
  Load/Unload Cycles	600,000
  Mean Time Between Failures (MTBF)	1.0 Million Hours
  Non-Recoverable Read Errors per Bits Read	1 in 1015

  Power Draw	9.0 W (Active) 7.2 W (Idle) 0.6 W (Standby)
  Supported Voltage	5 VDC, 12 VDC
  Current	2.0 A at 12 VDC

  Operating Shock	70 G / 2.0 ms
  Storage Shock	250 G / 2.0 ms
  Operating Temperature	41 to 158°F / 5 to 70°C
  Storage Temperature	-40 to 158°F / -40 to 70°C

  Dimensions (W x H x D)	4.0 x 1.0 x 5.8" / 101.8 x 26.2 x 147.1 mm
  Weight	1.7 lb / 780.2 g

  Box Dimensions (LxWxH)	7.9 x 6.0 x 2.4"
