User Manual for DSAN Corp. PC-AS4-GRN 4-Button Wireless Transmitter with Green Laser for PerfectCue Click to enlarge the picture
Contents of the user manual for the DSAN Corp. PC-AS4-GRN 4-Button Wireless Transmitter
- Product category: Lecterns Add-On Accessories DSAN Corp.
- Brand: DSAN Corp.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DSAN Corp. Lecterns Add-On Accessories
 |
User manual for the DSAN Corp. PC-AS4-GRN 4-Button Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DSAN Corp. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DSAN Corp. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DSAN Corp. product will considerably shorten its lifespan!
|

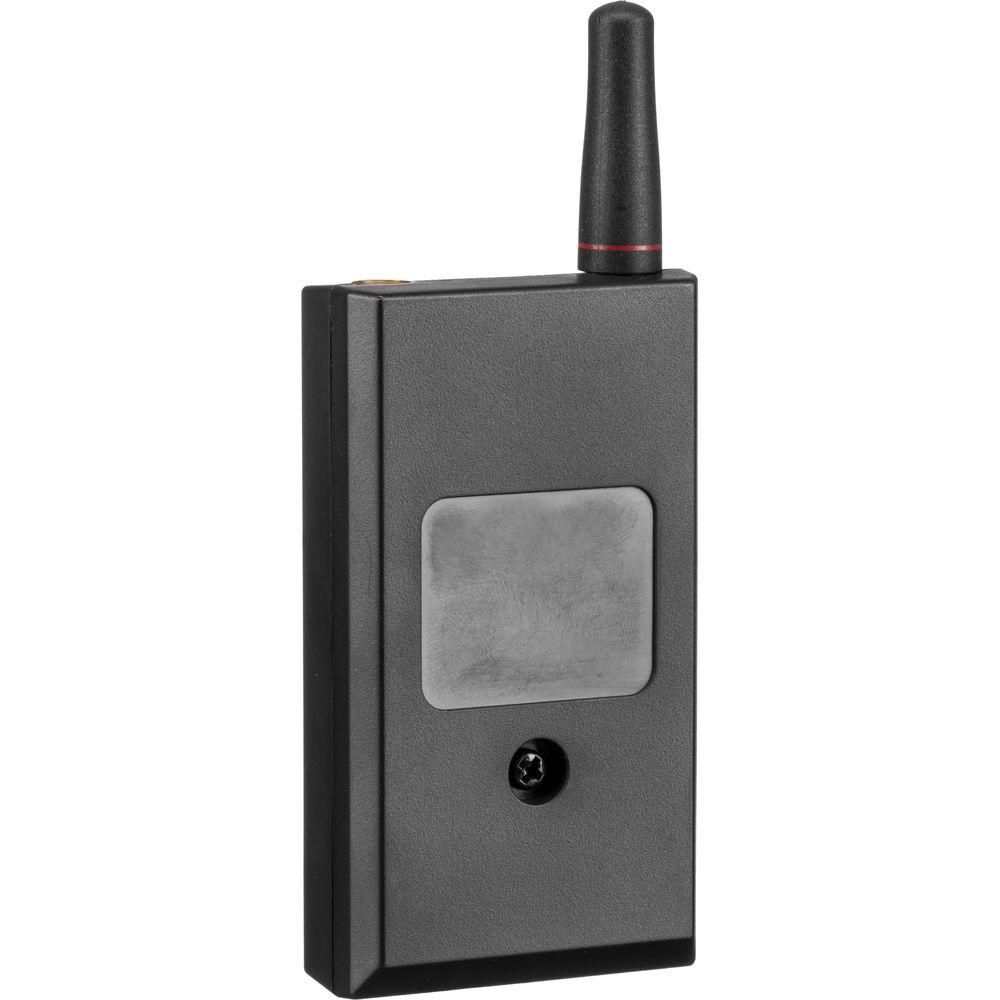

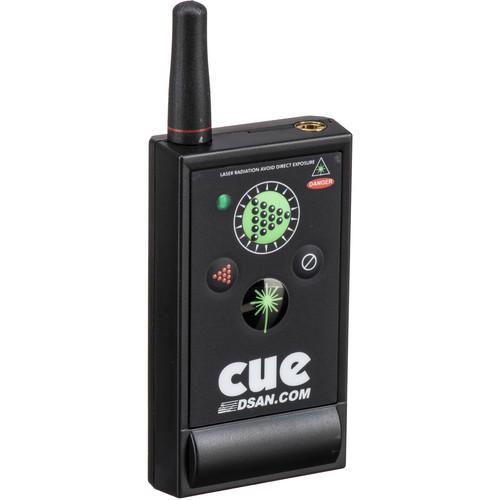

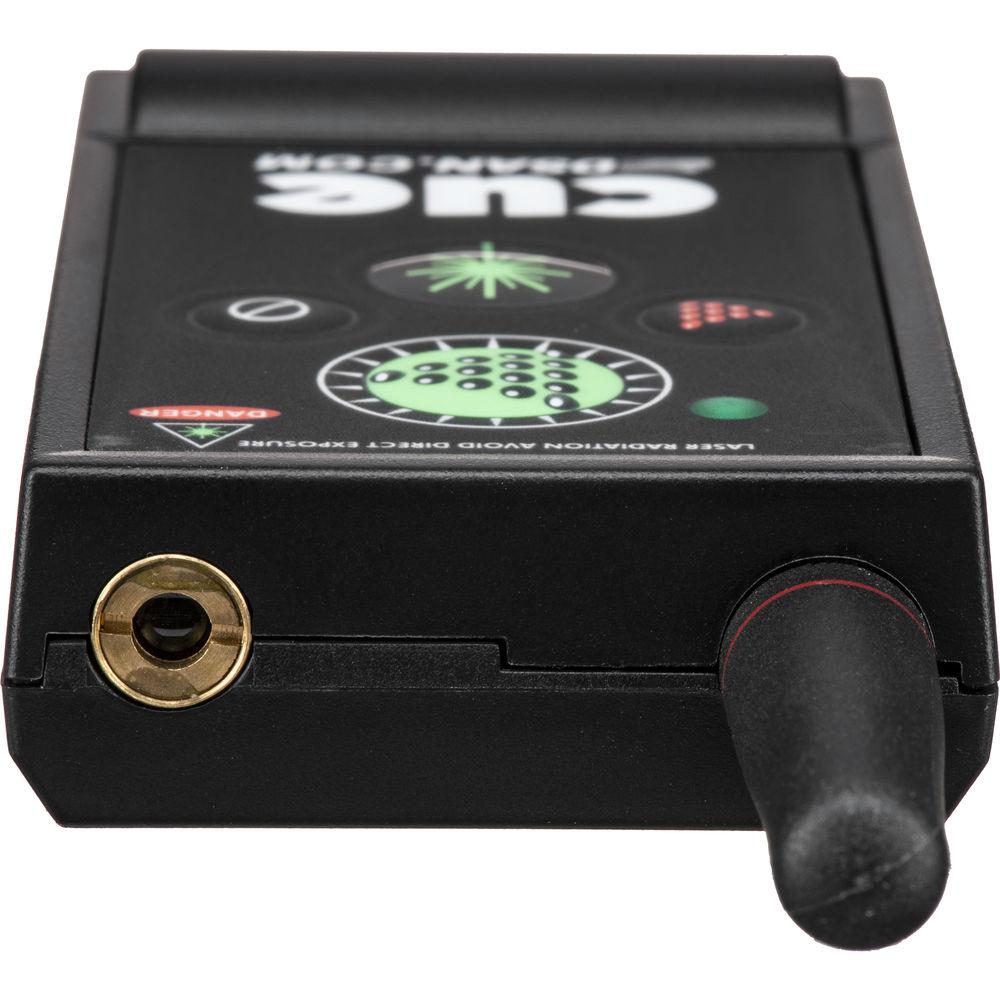

Product description The DSAN PC-AS4-GRN is a pocket-size 4-Button Wireless Transmitter with a Green Laser for the PerfectCue presentation signaling system. It is compatible with all PerfectCue systems, including the PerfectCue Mini. It features three command buttons and a fourth button that turns on a bright green laser pointer. The three command buttons signal "Forward" (next slide), "Reverse" (previous slide), and "Blank Screen" commands to the PerfectCue. "Blank Screen" removes everything from the screen and puts the focus on you for times such as when you're finishing up your presentation. The first two buttons are designed with embossed dots providing for a tactile feel.
The PC-AS4-GRN operates at 433 MHz and reaches ranges of 300 ft or more even in noisy RF environments (although not the laser). You can select from 256 channels to transmit over. The desired channel is assignable via a dip switch under a cover door on the rear.
The transmitter is powered by two included CR2032 coin batteries, which last up to a year under normal use, and one CR123 battery that powers specifically the laser for approximately 25 hours of use. - Key Features
-
- Pocket-size 300 ft range one-button wireless transmitter
- Compatible with all PerfectCue systems
- Three command buttons + green laser pointer button
- Forward, Reverse, and Blank Screen commands
- Dot-embossed, tactile-feel buttons 1 and 2
- 433 MHz operation
- Select from 256 channels to transmit over
- Battery powered
In the Box DSAN Corp. PC-AS4-GRN 4-Button Wireless Transmitter with Green Laser for PerfectCue CR123 Battery for Laser 2 x CR2032 Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DSAN Corp. PC-AS4-GRN 4-Button Wireless Transmitter with Green Laser for PerfectCue in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDSAN Corp. PC-AS-4-GRN Specs | Range | 300 ft / 91 m | | Laser | <3 mW; 530 nM | | Dimensions | 1.9 x 3.5 x 0.8" / 4.8 x 8.9 x 2 cm
Antenna Length: 1.25" / 3.2 cm | | Weight | 3 oz / 85 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.5 x 1.9 x 0.6" |
