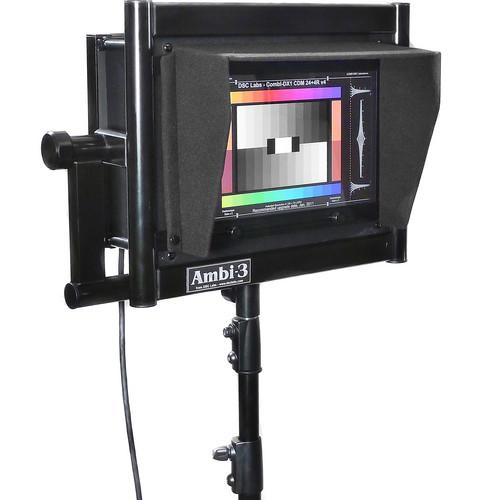

User Manual for DSC Labs Ambi-3 Illuminator Complete System Click to enlarge the picture
Contents of the user manual for the DSC Labs Ambi-3 Illuminator Complete System
- Product category: Test Chart Accessories Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Test Chart Accessories
|
User manual for the DSC Labs Ambi-3 Illuminator Complete System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Ambi-3 Illuminator Complete System from DSC Labs is a video camera test-transparency illumination system designed to provide optimal illumination for test patterns. This complete system consists of the Ambi Head with quartz illuminator, AmbiStand, light hood, and two spare quartz lamps. The factory assembled Ambi Head uses a self-contained multiple full-spectrum quartz light panel with 11 lamps to illuminate a color balanced diffuser to achieve even light distribution. The head is designed to reduce light leakage, making the illumination system suitable for testing in low-light (high dynamic range) conditions. As a safety feature, the light panel is equipped with a thermostat that disconnects power to the lights and fans in case of overheating. The AmbiStand holds the Ambi Head and has multidirectional locking wheels, which makes it convenient to wheel the setup between studios or engineering departments. The illuminator can also be set up on a desk/table or bench or hung from a studio grid. - Non-polarized light source, to reduce or eliminate polarization effects
- Combi precision optical signal generators (OSG rear-lit test targets) help you align multiple cameras at the same time with confidence and consistency
- Self-contained, full spectrum quartz light array eliminates the need for external light sources
- Uses a color balanced diffuser
- Reduces light leakage, making it suitable for testing in low-light (high dynamic range) conditions
- Light temperature can be changed to suit your needs by applying separately sold filters
- Suitable for news and panel shows, lab applications, studios, and hospital operation theaters
In the Box DSC Labs Ambi-3 Illuminator Complete System Illuminator Head with Quartz Light Panel Light Hood AmbiStand 2 x Spare 12V Quartz Lamp 12V Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DSC Labs Ambi-3 Illuminator Complete System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDSC Labs AMBI 3 CS Specs | Lamp | Type: 12 V full-spectrum quartz lamp
Number of Lamps: 11
Lamp Life: 1,000 hours (average) | | Cooling | Fan | | Protection | Thermal | | Power Supply | 12 V | | Stand Height | 40.0 to 70.0" (101.6 to 177.8 cm) (adjustable) | | Dimensions (WxHxD) | Basic Frame: 24 x 17 x 13" (61 x 43 x 33 cm) (with light panel attached) | | Weight | 24.3 lb (11.0 kg) | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 43.0 x 23.0 x 16.0" |
