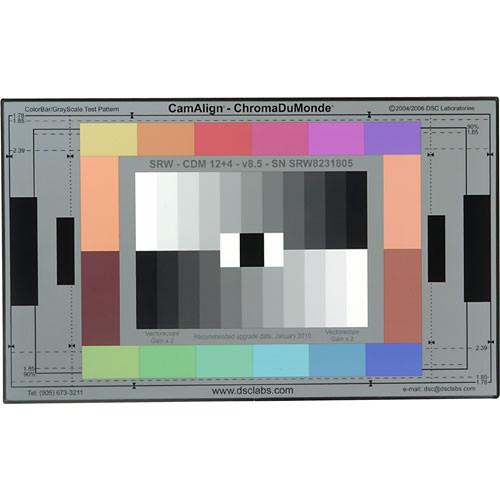

User Manual for DSC Labs ChromaDuMonde 12 4 Senior CamAlign Chip Chart Click to enlarge the picture
Contents of the user manual for the DSC Labs ChromaDuMonde 12 4 Senior
- Product category: Test Charts DSC Labs
- Brand: DSC Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DSC Labs Test Charts
|
User manual for the DSC Labs ChromaDuMonde 12 4 Senior contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DSC Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DSC Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DSC Labs product will considerably shorten its lifespan!
|
Product description The ChromaDuMonde 12+4 Senior CamAlign Chip Chart from DSC Labs is a color calibration chart designed for calibrating color with virtually any video camera throughout the world. The chart includes the latest SMPTE 274M (ITU-R BT.709) international colorimetry standards to ensure its compatibility in virtually any country or region. Many video professionals consider calibration charts a necessity for optimizing camera performance and the production value of images.
This chart has been designed with that philosophy in mind and works equally well in engineering or production work. It can be used to evaluate a camera's color matrix and gamma with a waveform/vectorscope. A chart can be particularly useful in reproducing skins tones, as well as custom or difficult colors, such as turquoise, purple, and other colors which occur at prism crossovers. It can also be used to check and adjust cameras on the fly and immediately gauge the effect of any hue changes on surrounding colors. This feature can be especially useful when using "green screens" or other digital special effects. Chart information can also be recorded to use it in post-production as a baseline reference. Recording the chart with every scene and setting change can ensure consistency in all of your work.
The chart generates a precise hexagonal-shaped display for HD, SD, and NTSC television images. Gamma can be set on your camera by using the chart's precise crossed grayscales. Colorimetry can then be set by positioning the chart's 24 color signals in HD vectorscope boxes and intermediate positions. The chart is primarily designed for HD TV use, but calibrated offsets are provided for those who wish to determine the theoretical colorimetric differences between HD and NTSC standards.
All ColorDuMonde charts feature separation between the grayscale and color bars suggested by Steve Lucas, as well as DSC Labs' exclusive watermarked title and serial bar. This model includes six vector colors and six intermediate between-vector colors. It also features 11-step crossed grayscales and 100 IRE white and true-black chips. The "+4" designation on this model signifies the inclusion of four additional skin-tone patches.
- Color Calibration
- Use this practical and versatile chart to perform color calibration and testing to achieve enhanced results with your video camera.
- Worldwide Compatibility
- This chart has been designed to meet international colorimetry standard to ensure its compatibility with virtually all video cameras throughout the world.
- Engineering & Production
- The chart includes a number of options that are equally useful in engineering, production, and post-production work.
- Separation
- It features separation between grayscale and color bars and an exclusive watermarked title and serial bar.
- Skin-Tone Patches
- The chart also includes skin-tone patches.
In the Box DSC Labs ChromaDuMonde 12+4 Senior CamAlign Chip Chart Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DSC Labs ChromaDuMonde 12 4 Senior CamAlign Chip Chart in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDSC Labs 12+4 Specs | Construction | Not specified by manufacturer | | Ratio | 16:9/4:3 | | Dimensions | 14.7 x 24" (37.3 x 61 cm) | | | | Package Weight | 2.66 lb | | Box Dimensions (LxWxH) | 24.0 x 15.0 x 0.35" |
