User Manual for DSC Labs DX-1 MultiBurst Squarewave 16:9 4:3 Test Chart Click to enlarge the picture
Contents of the user manual for the DSC Labs DX-1 MultiBurst Squarewave 16:9
- Product category: Test Charts DSC Labs
- Brand: DSC Labs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DSC Labs Test Charts
|
User manual for the DSC Labs DX-1 MultiBurst Squarewave 16:9 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DSC Labs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DSC Labs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DSC Labs product will considerably shorten its lifespan!
|

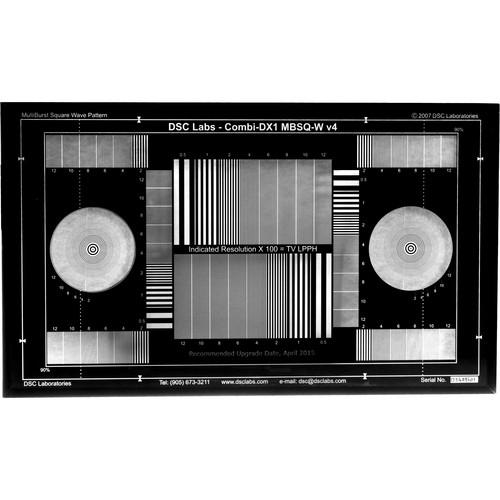

Product description The DSC Labs DX-1 MultiBurst Squarewave 16:9 / 4:3 Test Chart (White on Black) is a rear-lit test chart designed for calibrating the color and resolution on your video camera. Instead of sectional blocks, the resolution bars located in the center appear in gradient. Using resolution gratings up to 1200 TV LPPH (15 MHz), the chart can be used for testing camera frequency response. In addition, the zone plates up to 1200 TV LPPH (15 MHz) allow for checking resolution characteristics and anti-aliasing.
You can use the DX-1 MultiBurst Squarewave Test Chart as a precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals. In addition, it can be used to align multiple cameras using the color patches. The chart can be used for aligning different types of lighting such as quartz, HMI, and fluorescent. It also features a maximum tolerance level of 5 CIE L*U*V units and an RMS maximum of 2 units.
- Rear-lit test chart - designed for calibrating the color and resolution on your video camera
- Spectrophotometrically neutral grayscales
- Selected color pigments that match real life colors, and modern camera colorimetry
- Color patterns match CamAlign front-lit chart colorimetry
- Resolution bars located in the center appear in gradient instead of sectional blocks
- Resolution gratings up to 1200 TV LPPH (15 MHz)
- Can be used for testing camera frequency response
- Zone plates up to 1200 TV LPPH (15 MHz) - allow for checking resolution characteristics and anti-aliasing
- Can be used as precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals
- Can be used to align multiple cameras using the color patches
- Aligns different types of lighting such as quartz, HMI, and fluorescent
- Maximum tolerance level of 5 CIE L*U*V units
- Supports 16:9 / 4:3 aspect ratios
- Mounted in shatter-proof clear glass plastic
- Designed to be used with the Ambi illuminator, however using CombiMattes (optional), can also be used with other manufacturers' light boxes or spherical illuminators
In the Box DSC Labs DX-1 MultiBurst Squarewave 16:9 / 4:3 Test Chart (White on Black) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DSC Labs DX-1 MultiBurst Squarewave 16:9 4:3 Test Chart in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDSC Labs CDX1-29IW Specs | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 14.4 x 9.1 x 0.7" |
