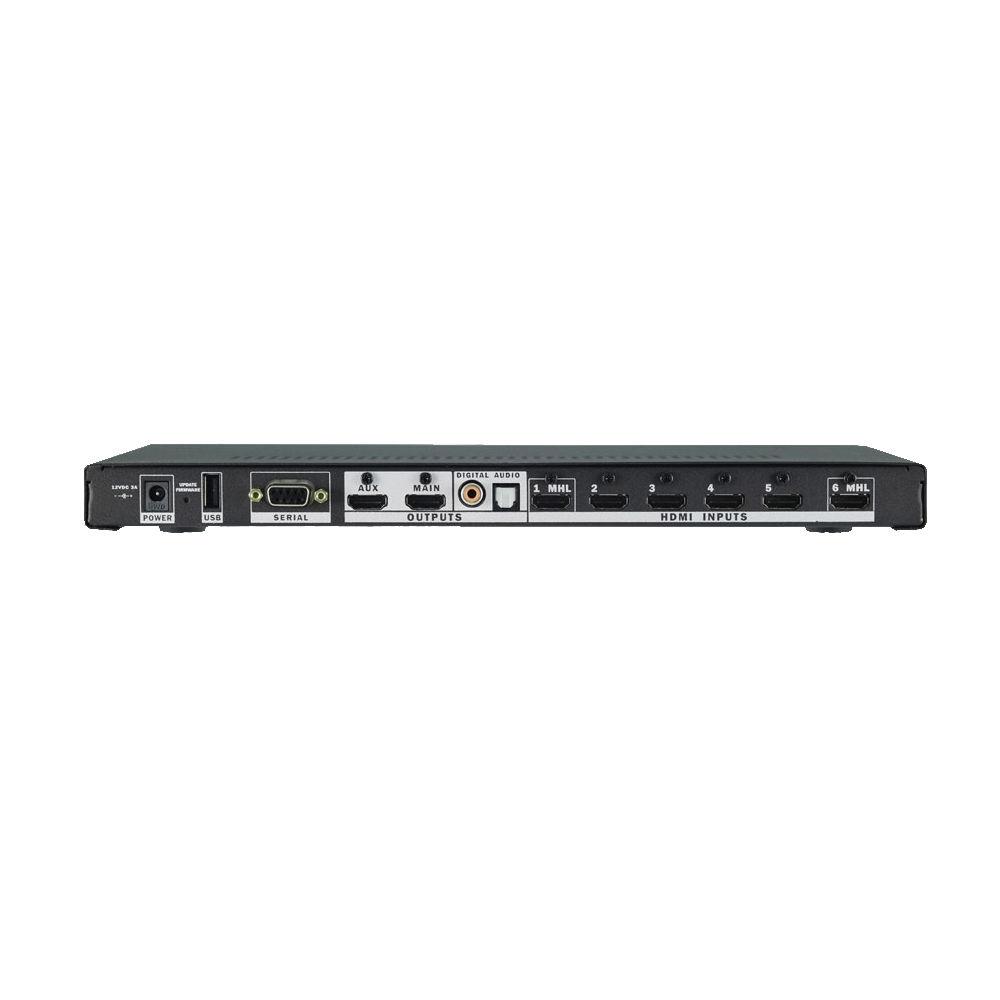

User Manual for DVDO Matrix44 4K Ultra HD 4x4 Matrix Switcher Click to enlarge the picture
Contents of the user manual for the DVDO Matrix44 4K Ultra HD 4x4
- Product category: HDMI & A/V Switchers DVDO
- Brand: DVDO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DVDO HDMI & A/V Switchers
 |
User manual for the DVDO Matrix44 4K Ultra HD 4x4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DVDO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DVDO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DVDO product will considerably shorten its lifespan!
|

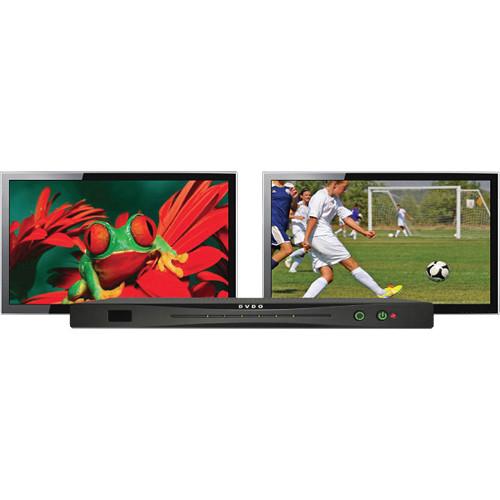

Product description DVDO Matrix44 is a 4K HDMI Matrix switcher supporting up to four inputs that transmits up to 4K (50/60Hz) Ultra HD or Full HD 1080p sources to four outputs. Designed for both home and commercial use, it provides intuitive control and fast switching for installers and home theater enthusiasts. - Key Features
- • 4K 50/60Hz (4:2:0)
• Supports four HDMI 2.0 inputs and outputs
• Supports 3DTV
• RS232 Serial interface for control systems
• Web GUI Setup
• Supports up to Dolby TrueHD, DTS-HD MA
• Direct IR control
• Advanced EDID Managemnt
• Field-Upgradeable Firmware
• Lockable Controls - 4K 50/60 Video & Audio
- Matrix44 provides four HDMI 2.0 compliant inputs and outputs to transmit 4K at 50/60Hz or 1080p60 sources to 4K Ultra HD displays while supporting 3D, Dolby TrueHD and DTS-HD Master Audio™.
- Broad Control Options
- Matrix44 offers easy control from the built-in Web server for setup and monitoring, direct TCP/IP, RS232, and IR for easy integration into a higher level control system. For standalone applications, a wireless Android application is also available. Front panel controls are straightforward and allow individual output control, direct jump to preset connections, and the ability to lock the front panel controls to prevent unwanted changes.
- Advanced EDID Management
- Matrix44 ensures universal display compatibility through dynamic EDID control. Multiple EDID options from sink duplication to preset EDIDs enable simple home theater or commercial AV installations.
- Installer's Choice
- With a locking power connector, rack mount tabs, remote Web access and easy field-upgradable firmware, Matrix44 is designed with the installer in mind.
In the Box DVDO Matrix44 4K Ultra HD 4x4 Matrix Switcher IR Remote Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DVDO Matrix44 4K Ultra HD 4x4 Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDVDO DVDO-MATRIX44 Specs | Video Support | 4K50/60(4:2:0), 4K24/25/30, 1080p24/25/30/50/60, 1080i50/60, 720p50/60, 576i/p, 480i/p, common PC resolutions VGA, SVGA, XGA, SXGA | | Audio Support | TS-HD, Dolby TrueHD, Dolby Digital+, Dolby Digital, DTS 5.1, LPCM 7.1, LPCM 5.2, PCM-2 32-192KHz | | 3D Support | Yes | | Video Formats | 4:4:4, 4:2:2, 4:2:0, RGB, YCbCr, 8/10/12-bit | | HDMI | Compliant to 2.0 | | HDCP | 1.4 | | IR Remote for Matrix/Source Control | Yes | | Power Supply | 5 VDC | | EDID Management | Yes | | RS-232 Serial Port | Yes | | HDMI CEC | No | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Certification and Compliance | FCC, CE, RoHS | | Dimensions | 17 x 10.5 x 1.75" / 43 x 26.7 x 4.4 cm | | Weight | 6.3 lb / 2.9 kg | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 23.6 x 14.9 x 7.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
