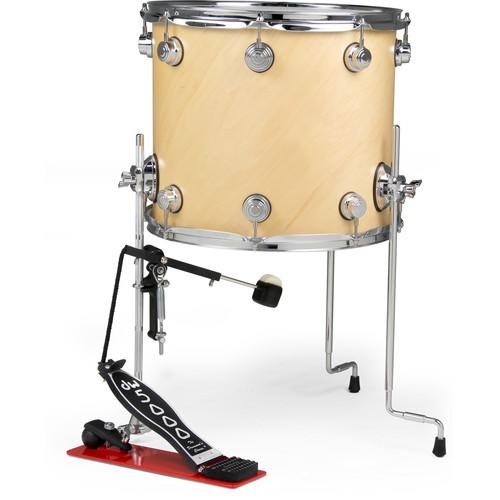

User Manual for DW DRUMS 5000S Sidekick Pedal Click to enlarge the picture
Contents of the user manual for the DW DRUMS 5000S Sidekick Pedal
- Product category: Acoustic Drum Accessories DW DRUMS
- Brand: DW DRUMS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DW DRUMS Acoustic Drum Accessories
|
User manual for the DW DRUMS 5000S Sidekick Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DW DRUMS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DW DRUMS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DW DRUMS product will considerably shorten its lifespan!
|
Product description Quite suitable for standing drummers playing cocktail kits, the 5000S Sidekick Pedal from DW Drums facilitates upward strikes, and can be used to hit the bottom side of a compatible floor tom. It utilizes a 0.5” rod, roughly the length of a floor-tom leg, that slips into any DWTB12 floor-tom bracket, as well a rope drive which achieves a natural feel. As this is a 5000 series kick drum pedal, all the usual features are present, including Delta Ball-Bearing hinges and a 101 2-Way beater. A Bearing Spring Rocker Assembly is also on hand, mounted to the aforementioned 0.5” rod. If you’re seeking to use this pedal with a PDP kit, the 0.4” version of the rod has been provided. - Rope Drive System
- This system, which makes the upward stroke possible, creates a direct and smooth relationship with the footboard while preserving flexibility.
- Delta Ball-Bearing Hinge
- DW's patented Delta Ball-Bearing Hinge utilizes an aluminum design that incorporates ball bearings at both sides.
- Bearing Spring Rocker Assembly
- This dual-bearing system, mounted to that 1/2" rod, facilitates to the quick, responsive feel.
- Ball Joint Leg
- Ball joint leg attachments provides flexibility in achieving your preferred pedal angle and placement.
- Included Rods
- Roughly the length of a floor tom leg, two rods have been provided, one compatible with DW Standard drums (measuring 0.5" in diameter), and one for PDP drums, measuring 0.4" in diameter.
UPC: 647139141916 In the Box DW DRUMS 5000S Sidekick Pedal 0.5" Rod for DW Standard Kits 0.4" Rod for PDP Kits Limited 5-Year Warranty on Cast Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the DW DRUMS 5000S Sidekick Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDW DRUMS DWCP5000S Specs | For Use with | Floor-toms, cocktail kits | | Beater Type | 101 two-way beater with built-in spurs | | Drive System | Rope Drive System | | Hinge Mechanism | Delta Ball-Bearing Hinge | | Base Plate | Aluminum with ball joint leg attachments | | Rods | Diameter for DW Standard Kits: 0.5" / 12.7 mm
Diameter for PDP Kits: 0.4" / 10.5 mm | | Dimensions and Weight | Not specified by manufacturer |
