User Manual for Dyconn Chimera Gas Spring Dual Monitor Desk Mount Click to enlarge the picture
Contents of the user manual for the Dyconn Chimera Gas Spring Dual Monitor
- Product category: Monitor Table Top Stand Mounts Dyconn
- Brand: Dyconn
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dyconn Monitor Table Top Stand Mounts
 |
User manual for the Dyconn Chimera Gas Spring Dual Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dyconn product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dyconn user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dyconn product will considerably shorten its lifespan!
|

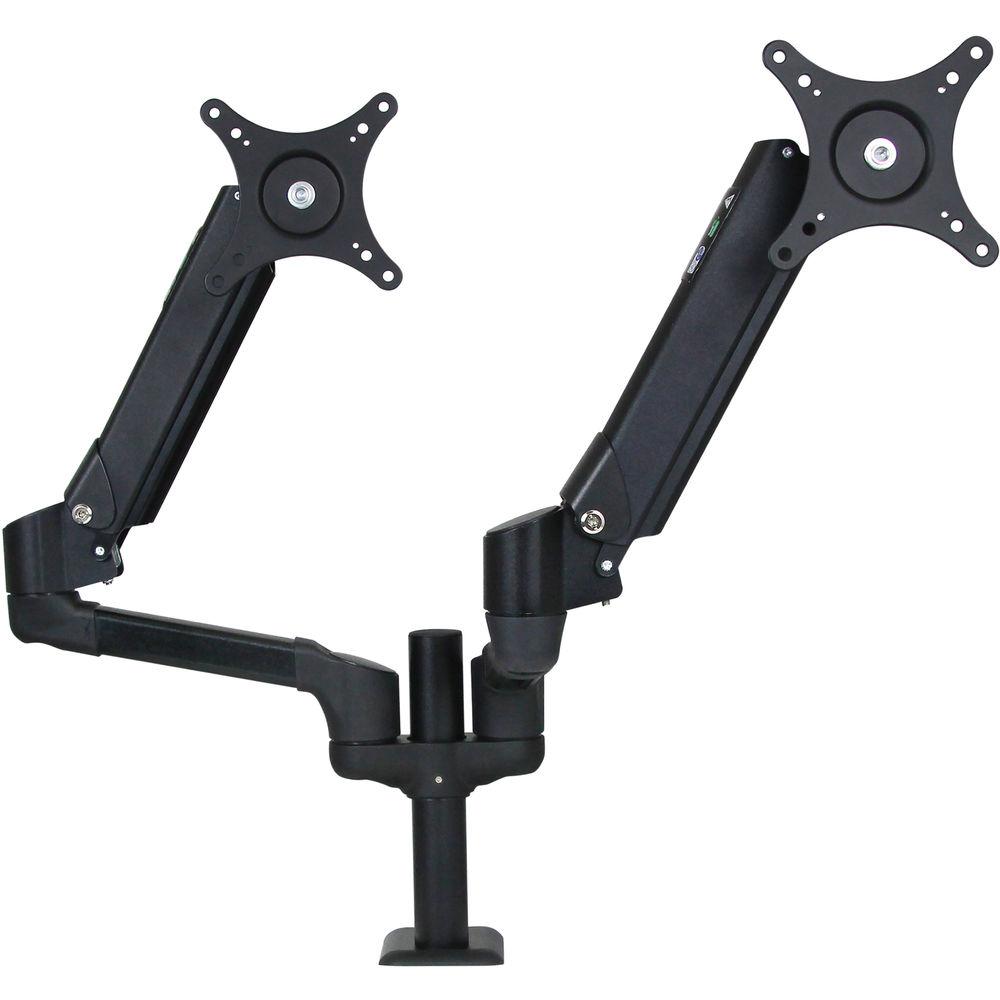

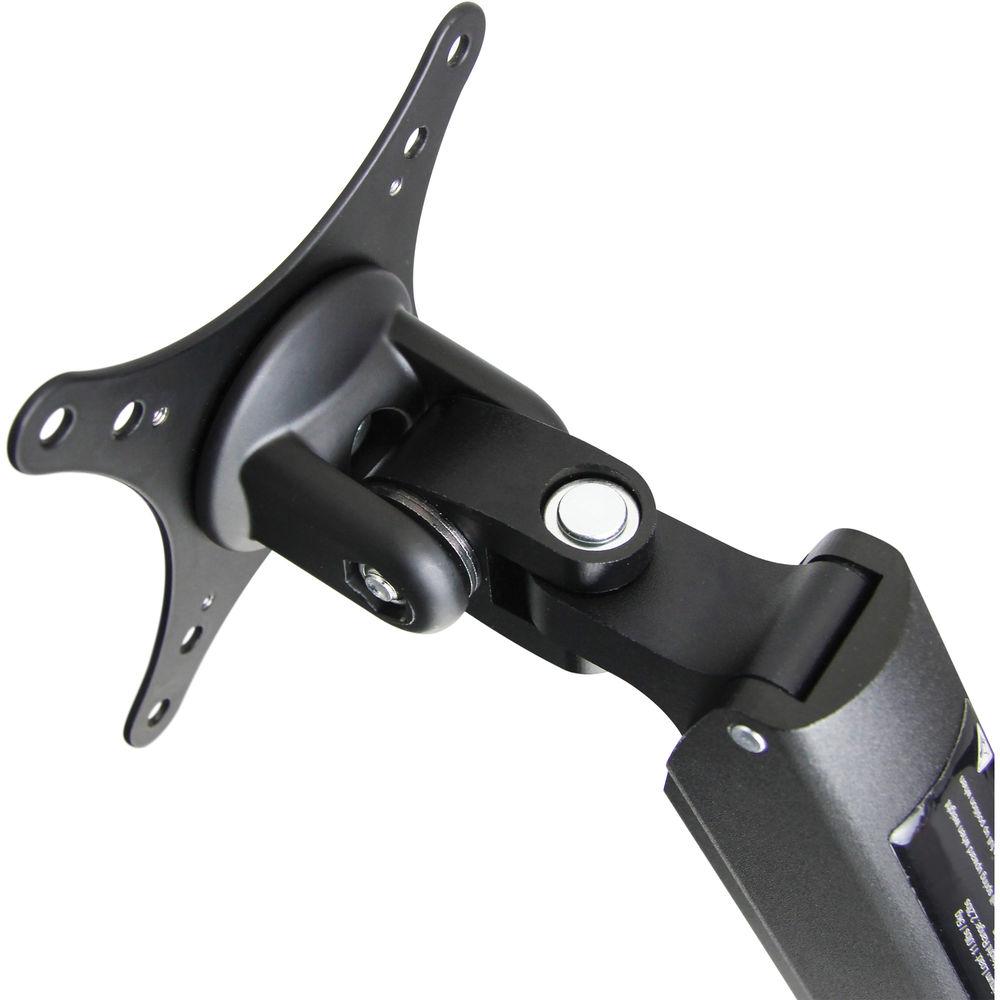

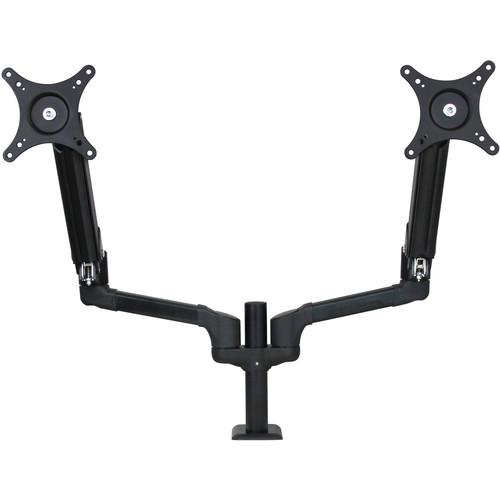

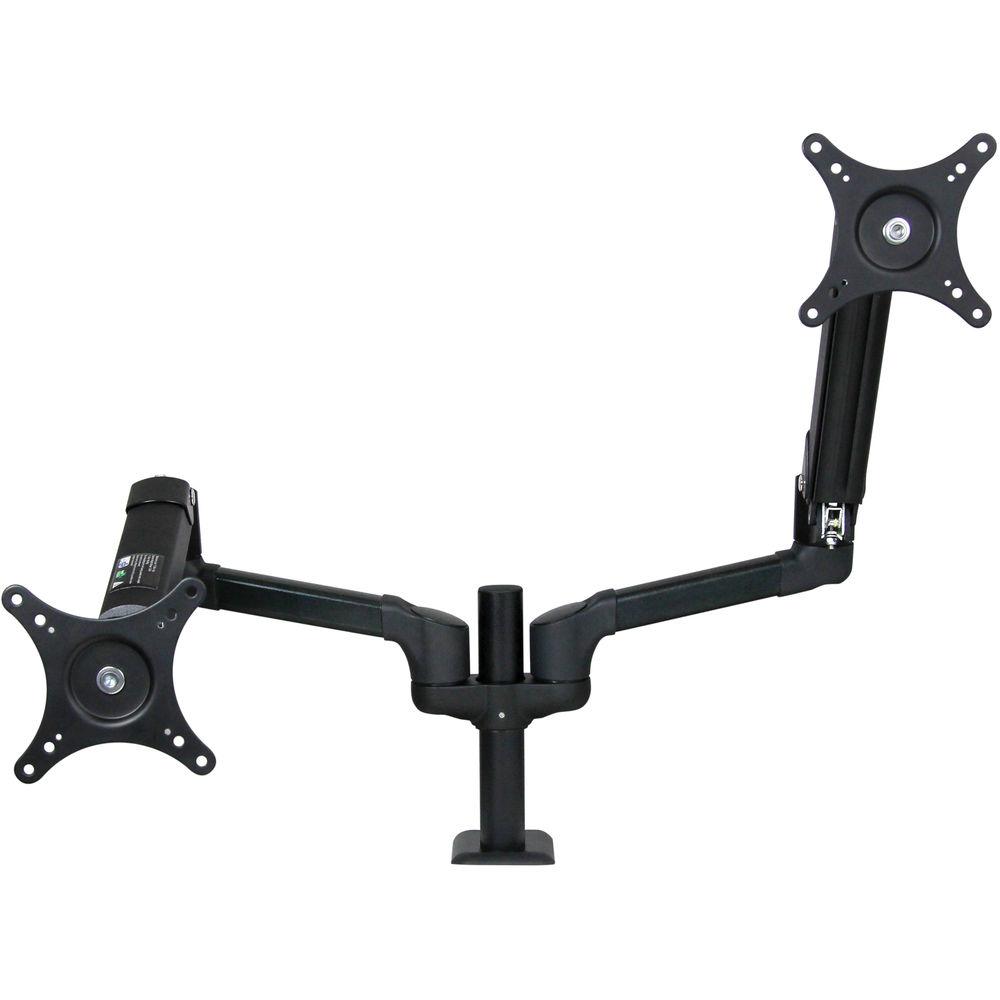

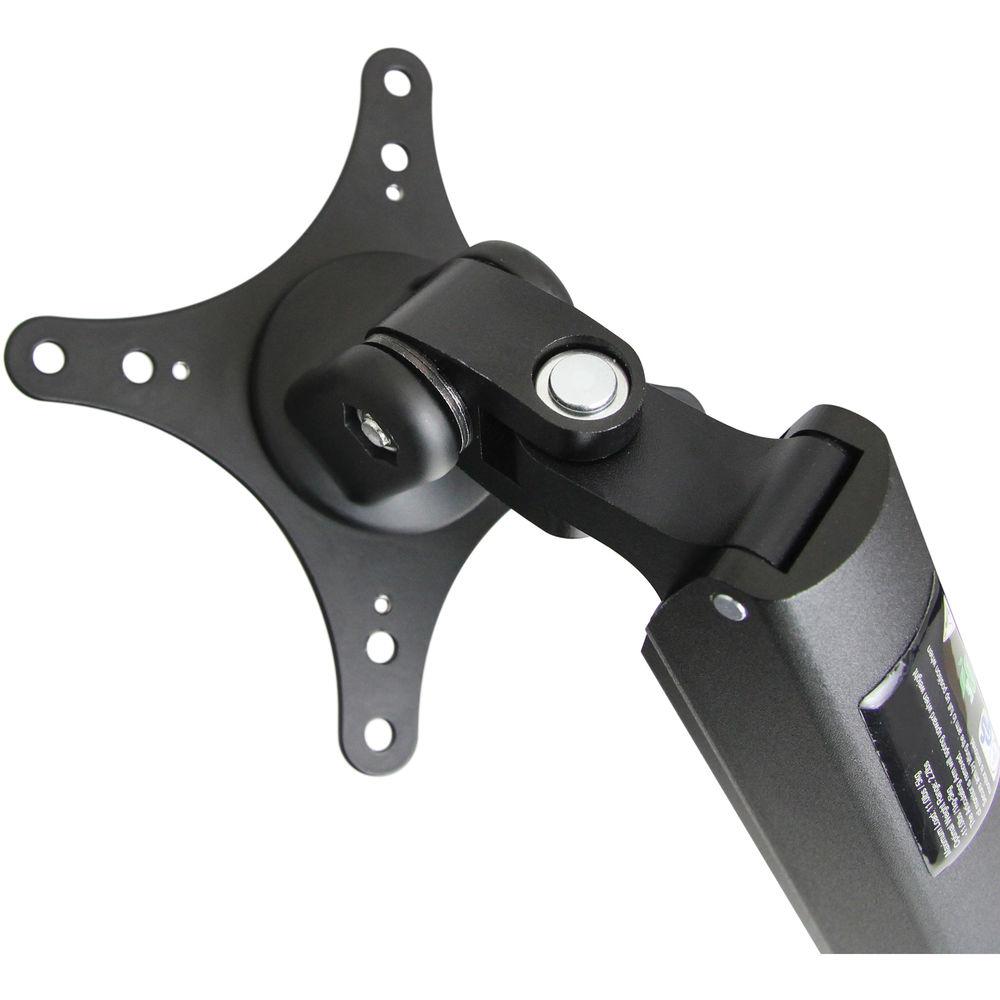

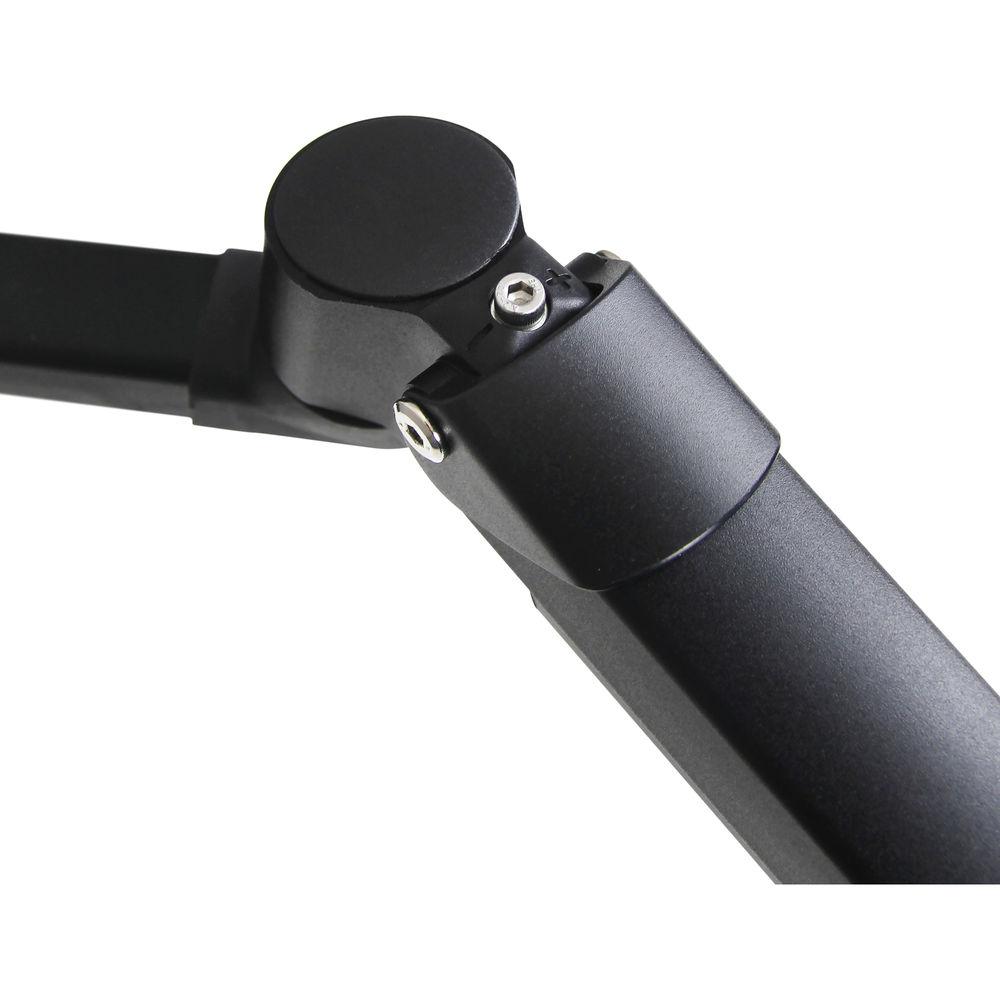

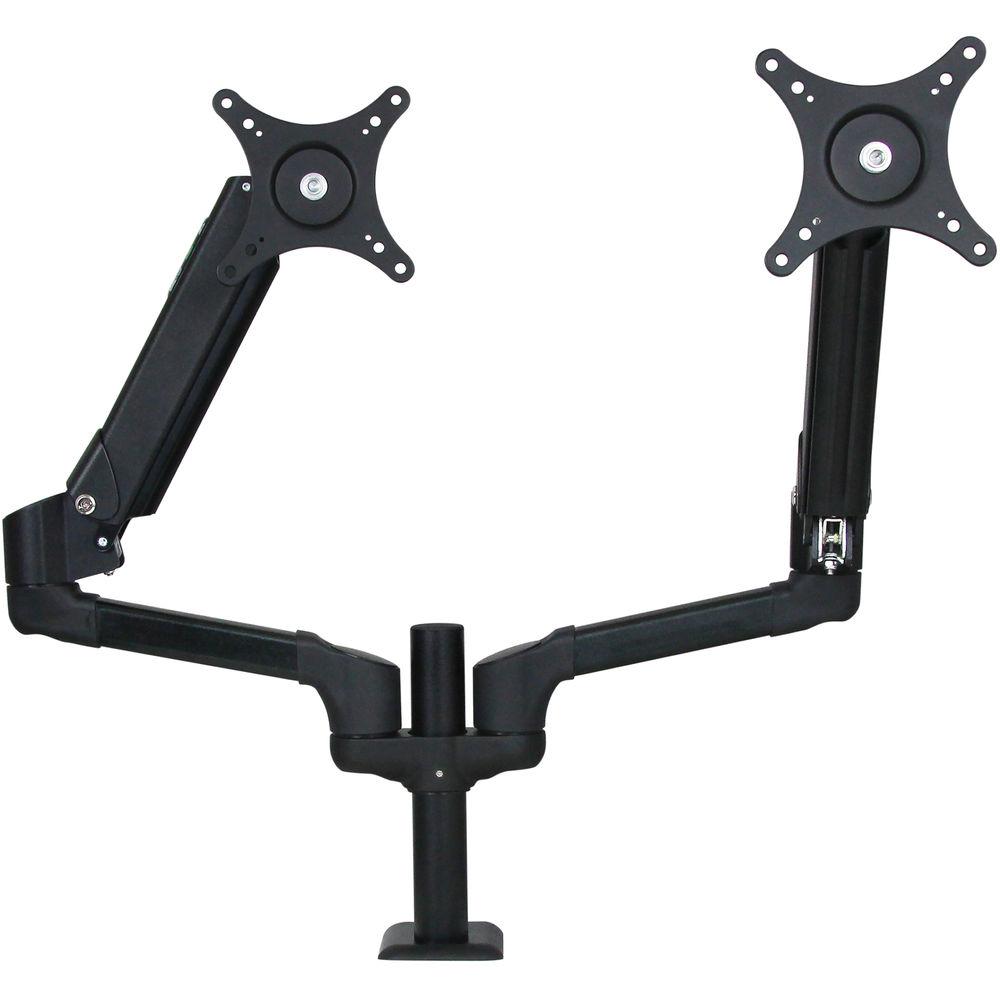

Product description The Dyconn Chimera Gas Spring Dual Monitor Desk Mount is a space-saving, diverse dual monitor mount, capable of mounting 2 monitor displies. Dual gas spring arms afford afford smooth and effortless monitor movement. The Chimera is suitable for either business or residential use and offers stable and ergonomic adjustments including lift, lower, tilt, rotate, swivel, swing, and full arm-extension. The LCD monitor arms each support a total weight range of 2.2 - 11 lb. The mount easily attaches onto any desk with ease by way of clamp or grommet. Adjusting the tension of the gas spring arms is easy and can be achieved with modification to the tension gauge (Allen screw). This unit is made of durable aluminum alloy and is VESA compatible (75 x 75mm and 100 x 100mm) and further supports cable management which minimizes clutter. - Designed for displays up to 24"
- Weight capacity range 2.2-11 lb
- Fits VESA mounting patterns 75x75mm and 100x100mm
- Maximum arm extension up to 22"
- Tilt Adjustment -90° to +90° tilt
- Swivel Point 360° at pole, 360° at pivot, and 180° pan at interface
- Arm height adjustment 11.8" / -30° to +60°
- Easy positioning display for maximum productivity
- Mounting options of desk clamp and through the desk hole included
- Simple installation with mounting hardware included
UPC: 817370011426 In the Box Dyconn Chimera Gas Spring Dual Monitor Desk Mount Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dyconn Chimera Gas Spring Dual Monitor Desk Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDyconn DE840D Specs | Material | Steel/aluminum alloy | | VESA Compatibility | 75 x 75 mm, 100 x 100 mm | | Maximum Monitor Size Supported | 24" (60 cm) | | Number of Monitors Supported | 2 | | Monitor Weight Capacity | 17.6 lb (8 kg) for each arm | | Swivel | Maximum ±360° | | Tilt | Maximum -90° to +90° | | Pivot | 360° | | Display Rotation | 360° | | Arm Height Range | 11.8" (300 mm) / -30° to +60° | | Length | Extended: 22" (560 mm)
Retracted: 2.6" (66 mm) | | Mounting Surface Thickness | Maximum Clamp/Grommet: 2.95" (75 mm) | | Dimensions | 42 x 18.3 x 22" (1070 x 467 x 560 mm) | | Weight | 13.2 lb (5.9 kg) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 13.2 x 11.0 x 9.0" |
