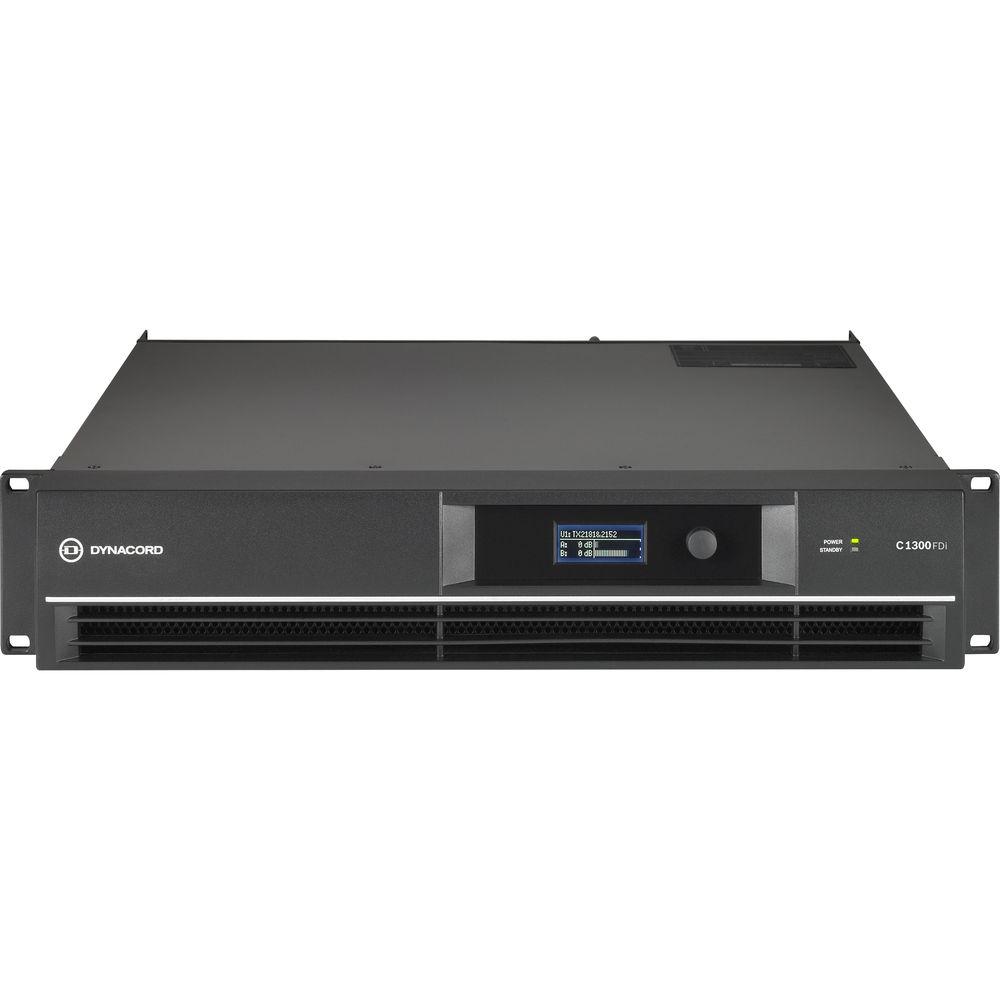

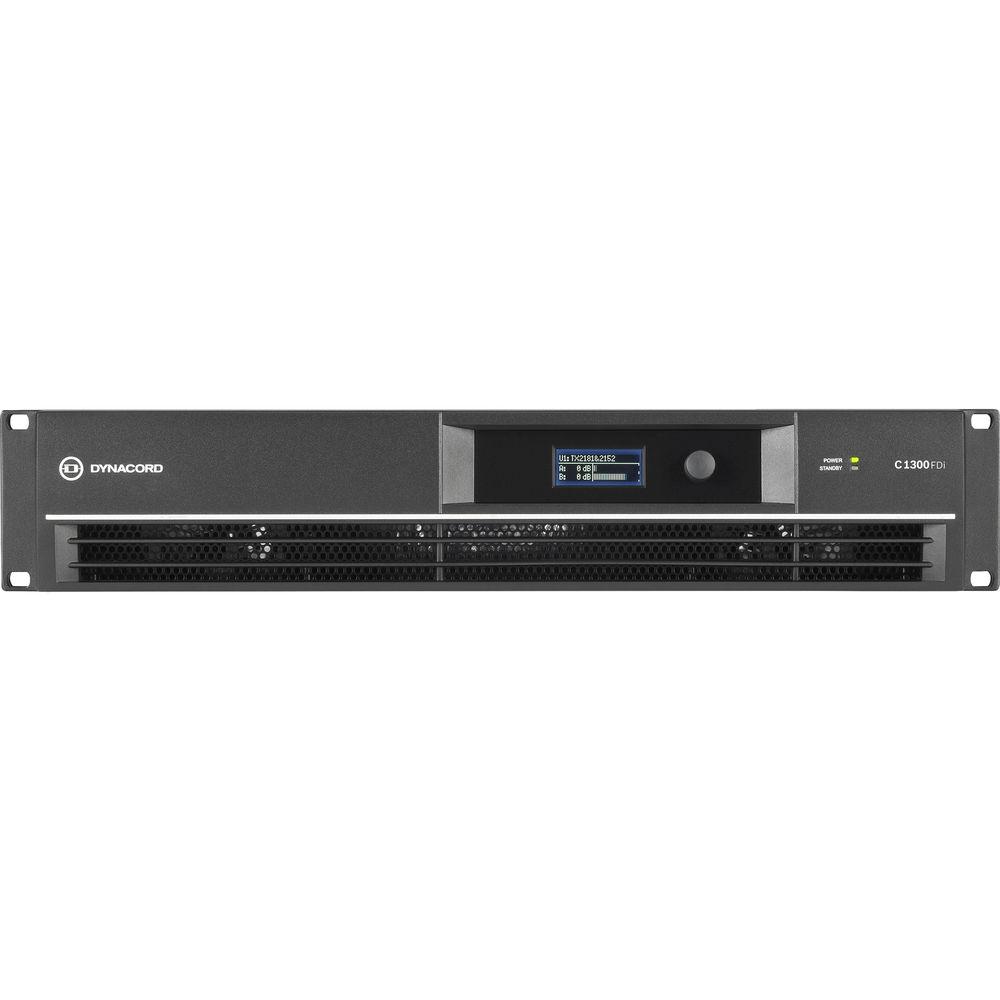

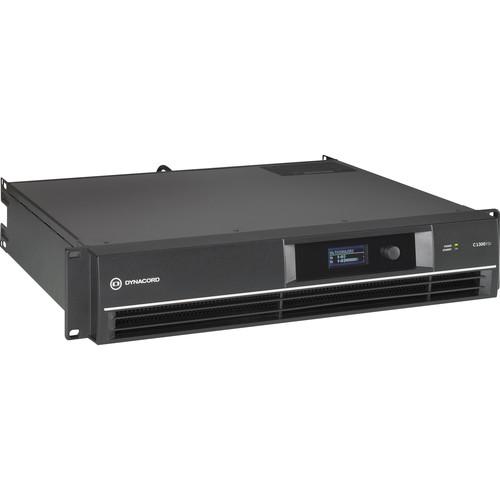

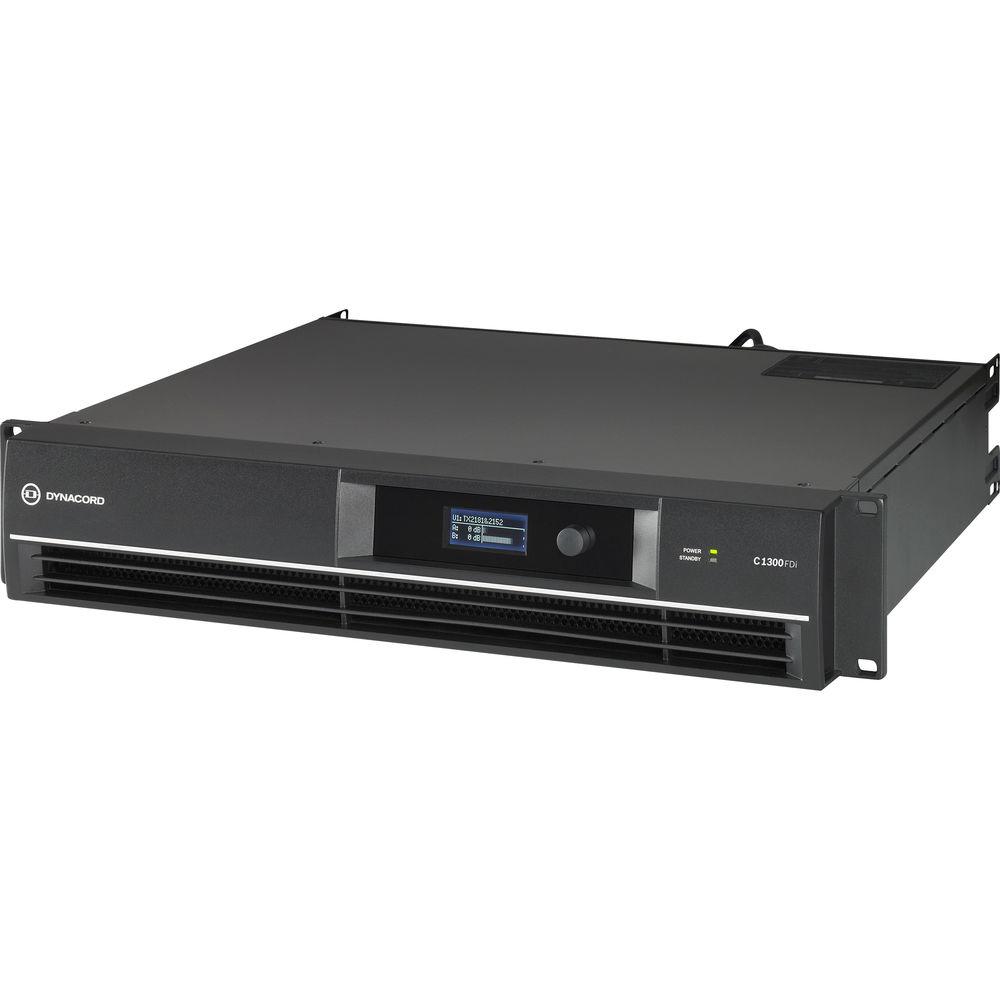

User Manual for Dynacord C1300FDi C-Series FIR Drive Power Amplifier 1300W Click to enlarge the picture
Contents of the user manual for the Dynacord C1300FDi C-Series FIR Drive Power
- Product category: Power Amplifiers Dynacord
- Brand: Dynacord
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynacord Power Amplifiers
 |
User manual for the Dynacord C1300FDi C-Series FIR Drive Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynacord product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynacord user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynacord product will considerably shorten its lifespan!
|
Product description The Dynacord C1300FDi C-Series FIR Drive Power Amplifier is a 1300W audio amplifier designed for permanent installation applications, to provide background or live music in venues including bars, houses of worship, restaurants, sports facilities, and performing arts centers. The C1300FDi is equipped with a robust power supply and a powerful linear amp design, well suited for the most demanding environments. The sophisticated protection circuitry ensures safe, reliable operation under all conditions. The amplifier is also suitable for direct-drive applications with 70/100V speaker lines for a variety of flexible install scenarios.
The C1300FDi features Euroblock connectors for convenient wiring, remote power-on delay, and GPIOs to interface with third-party controls. An efficient standby power mode reduces running costs and power consumption by up to 90%, leading to a low cost of ownership. The amplifier utilizes high-quality components throughout for truly professional processing power and performance characteristics. The on-board DSP includes multi-band PEQs (parametric EQ), crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ (graphic equalizer), and delay for each group. The Dynacord C1300FDi ships with a power cord, USB cable, and a variety of Euroblock & power remote connectors. -
- Installation DSP amplifier, Euroblock connectors
- Fully integrated professional speaker processing with FIR Drive technology
- Professional acoustic performance and rock-solid reliability
- Low Z and 70/100V operation and power saving standby mode
- Powerful and proven audio performance
- Engineered for constant stability at 2 Ohms
- Low- and high-impedance outputs, and remote GPIO control
- Highly efficient standby power mode reduces running costs and power consumption up to 90%
- Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
- High-performance bulletproof voltage handling
- On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel. True channel grouping control with extra DSP capabilities including GEQ
- Intuitive, powerful control software makes configuration and real-time control easy. Up to 16 amp channels can be controlled and monitored simultaneously
- Advanced FIR Drive to optimize loudspeaker settings, providing premium features into an installation form factor
- Engineered in Germany
In the Box Dynacord C1300FDi C-Series FIR Drive Power Amplifier 1300W Power Cord USB Cable 6-Pole Euroblock GPIO Connector 4-Pole Euroblock Output Connector 2 x 2-Pole Euroblock Input Connector 2-Pole Power Remote Connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynacord C1300FDi C-Series FIR Drive Power Amplifier 1300W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynacord C1300FDI-US Specs | Load Impedance | 2 Ohms
2.6 Ohms
4 Ohms
8 Ohms | | Maximum Output Power | Single Channel
2 Ohms: 1100 W
2.6 Ohms: 950 W
4 Ohms: 660 W
8 Ohms: 350 W
Dual Channel
2 Ohms: 1000 W
2.6 Ohms: 850 W
4 Ohms: 600 W
8 Ohms: 320 W
Bridged
High Impedance: 2 Ohms and 2.6 Ohms = 1 x 600 W
4 Ohms: 2000 W
8 Ohms: 1200 W | | Impedance | High-Impedance Operation: 70 V, 100 V | | Maximum RMS Voltage Swing | 55.3 V | | Voltage Gain | 32.0 dB (ref 1 kHz) | | IMD SMPTE | IMD-SMPTE, 60 Hz, 7 kHz: < 0.1% | | DIM 30 | < 0.05% (3.15 kHz, 15 kHz) | | Maximum Input Level | +21 dBu | | Crosstalk | < -80 dB (ref. 1 kHz, at 100 w/ 4 Ohms) | | Frequency Response | 10 Hz to 21 kHz (
