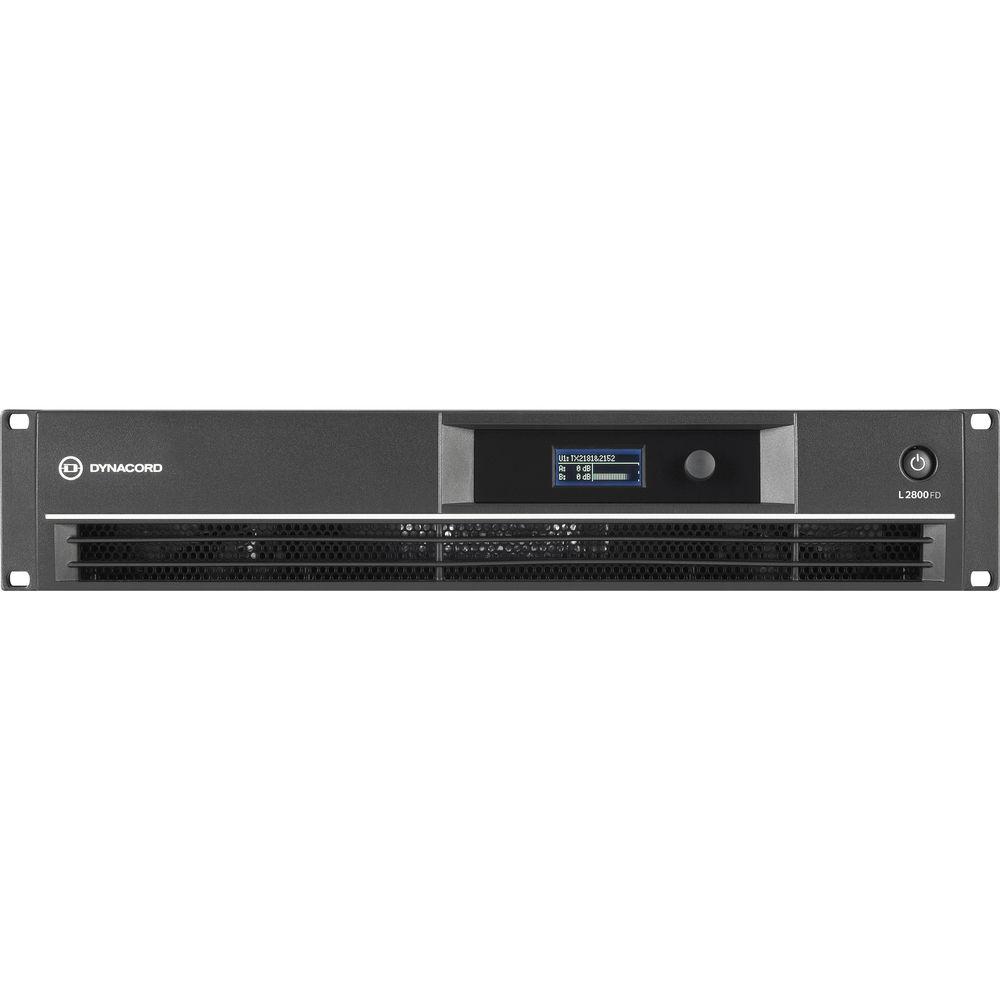

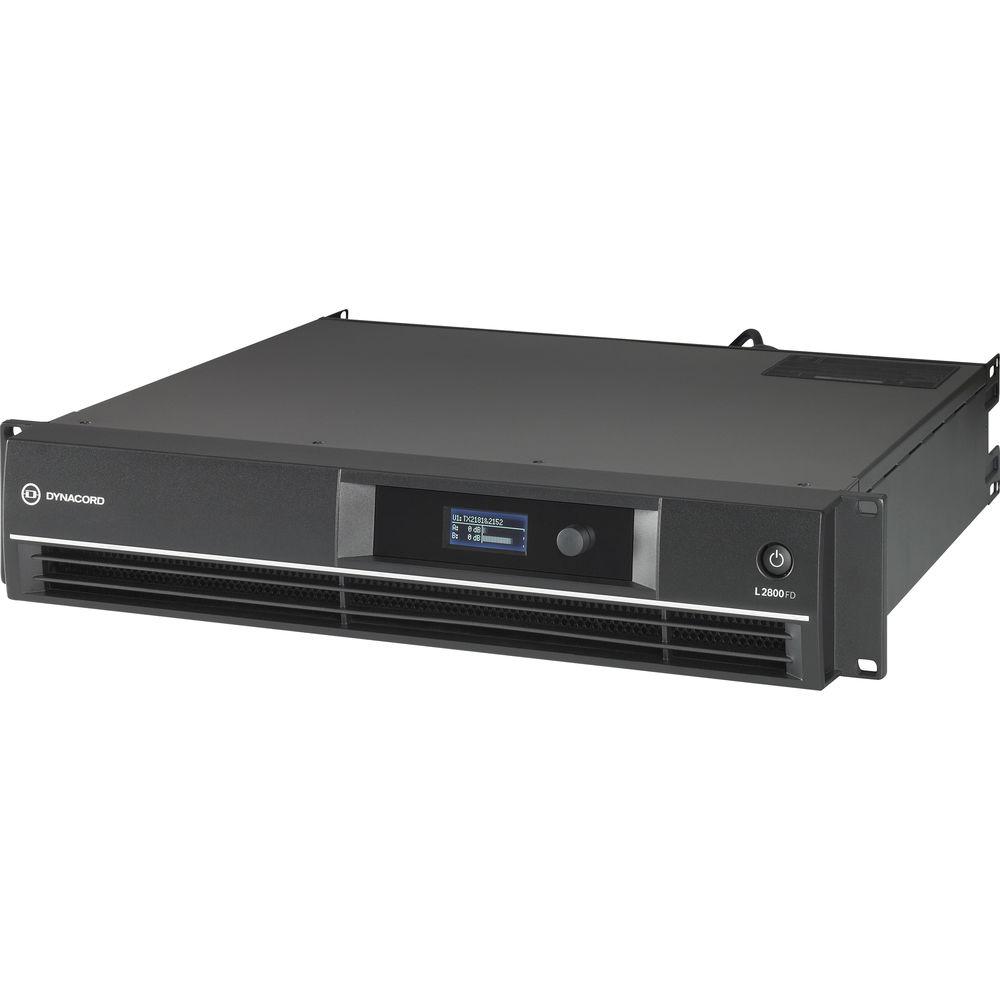

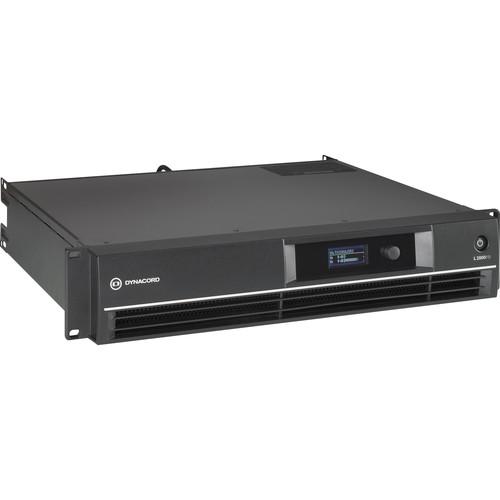

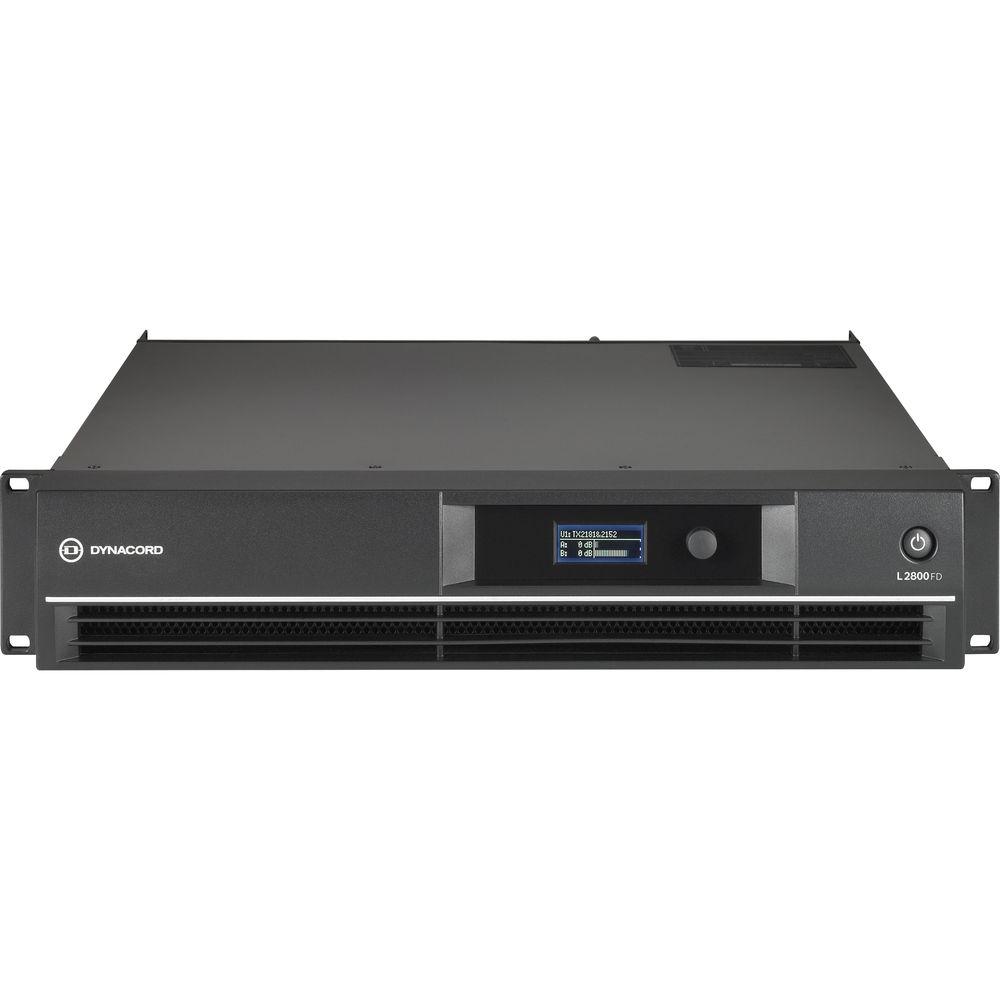

User Manual for Dynacord L2800FD L-Series FIR-Drive Power Amplifier 2800W Click to enlarge the picture
Contents of the user manual for the Dynacord L2800FD L-Series FIR-Drive Power Amplifier
- Product category: Power Amplifiers Dynacord
- Brand: Dynacord
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynacord Power Amplifiers
 |
User manual for the Dynacord L2800FD L-Series FIR-Drive Power Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynacord product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynacord user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynacord product will considerably shorten its lifespan!
|
Product description The Dynacord L2800FD L-Series FIR-Drive Power Amplifier is a 2800W audio amplifier designed for performing musicians and production companies providing sound reinforcement for live performances in venues including music clubs, community hall events, performance centers, and sports venues. The L2800FD is equipped with a robust power supply and a powerful linear amp design, well suited for the most demanding environments. The sophisticated protection circuitry ensures safe, reliable operation under all conditions.
The L2800FD features SpeakOn connectors for convenient wiring to professional speakers. The amplifier utilizes high-quality components throughout for truly professional processing power and performance characteristics. The on-board DSP includes multi-band PEQs (parametric EQ), crossovers, limiters, and delay per channel. It also has true channel grouping control with extra DSP capabilities like PEQ, GEQ (graphic equalizer), and delay for each group. The Dynacord L2800FD ships with a power cord and USB cable. -
- Live performance DSP amplifier, SpeakOn connectors
- Fully integrated professional speaker processing with FIR Drive technology
- Professional acoustic performance and rock-solid reliability
- Powerful and proven audio performance
- Engineered for constant stability at 2 Ohms
- Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
- High-performance bulletproof voltage handling
- On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel; True channel grouping control with extra DSP capabilities including GEQ
- Intuitive, powerful control software makes configuration and real time control easy. Up to 16 amp channels can be controlled and monitored simultaneously
- Advanced FIR drive to optimize loudspeaker settings, providing premium features into an installation form factor
- Engineered in Germany
UPC: 800549935494 In the Box Dynacord L2800FD L-Series FIR-Drive Power Amplifier 2800W Power Cord USB Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynacord L2800FD L-Series FIR-Drive Power Amplifier 2800W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynacord L2800FD-US Specs | Load Impedance | 2 Ohms
2.7 Ohms
4 Ohms
8 Ohms | | Maximum Output Power | Single Channel
2 Ohms: 2300 W
2.7 Ohms: 2000 W
4 Ohms: 1400 W
8 Ohms: 700 W
Dual Channel
2 Ohms: 2200 W
2.6 Ohms: 1800 W
4 Ohms: 1300 W
8 Ohms: 650 W
Bridged
4 Ohms: 4400 W
8 Ohms: 2600 W | | Maximum RMS Voltage Swing | 78.8 V | | Voltage Gain | 32.0 dB (ref 1 kHz) | | IMD SMPTE | IMD-SMPTE, 60 Hz, 7 kHz: < 0.1% | | DIM 30 | < 0.05% (3.15 kHz, 15 kHz) | | Maximum Input Level | +21 dBu | | Crosstalk | < -80 dB (ref. 1 kHz, at 100 W / 4 Ohms) | | Frequency Response | 10 Hz to 21 kHz (
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Dynacord L2800FD L-Series FIR-Drive Power Amplifier 2800W
| Subject: Dynacord L2800 FD | | Date: 02.04.2022 14:42:58 | Name: Cristian | | Aveces ase un ruido tremendo por cada canal ...despues de 2 3 encendido desparece ...que puede ser mismos cables conectarlo al otro amlificador no ace ningun ruido | | Post reply |
