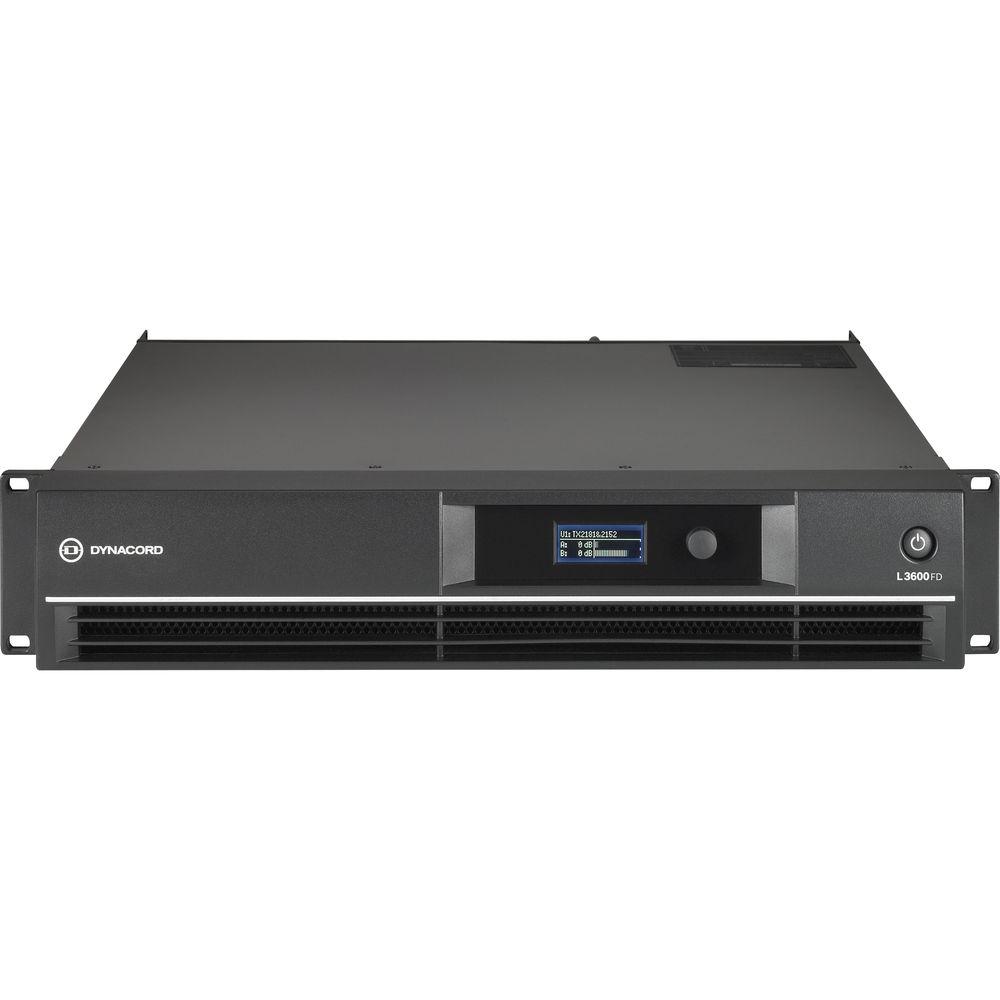

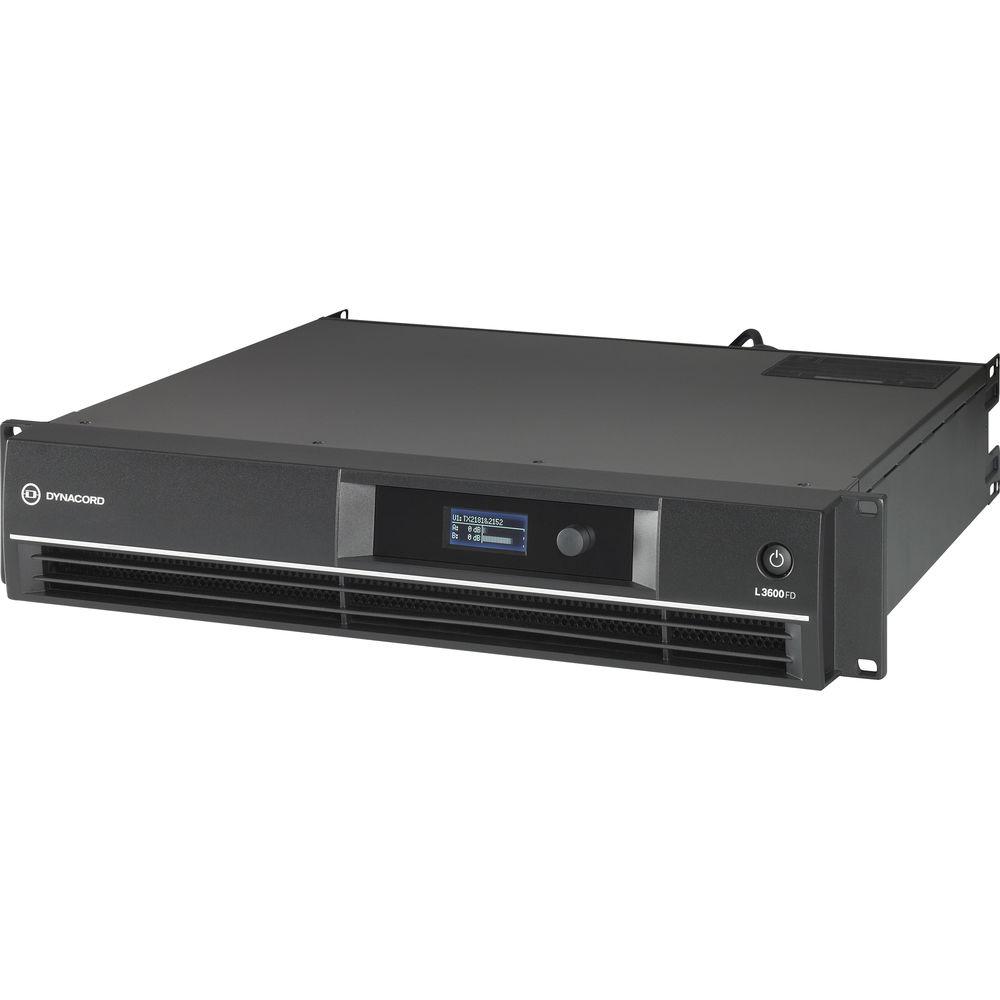

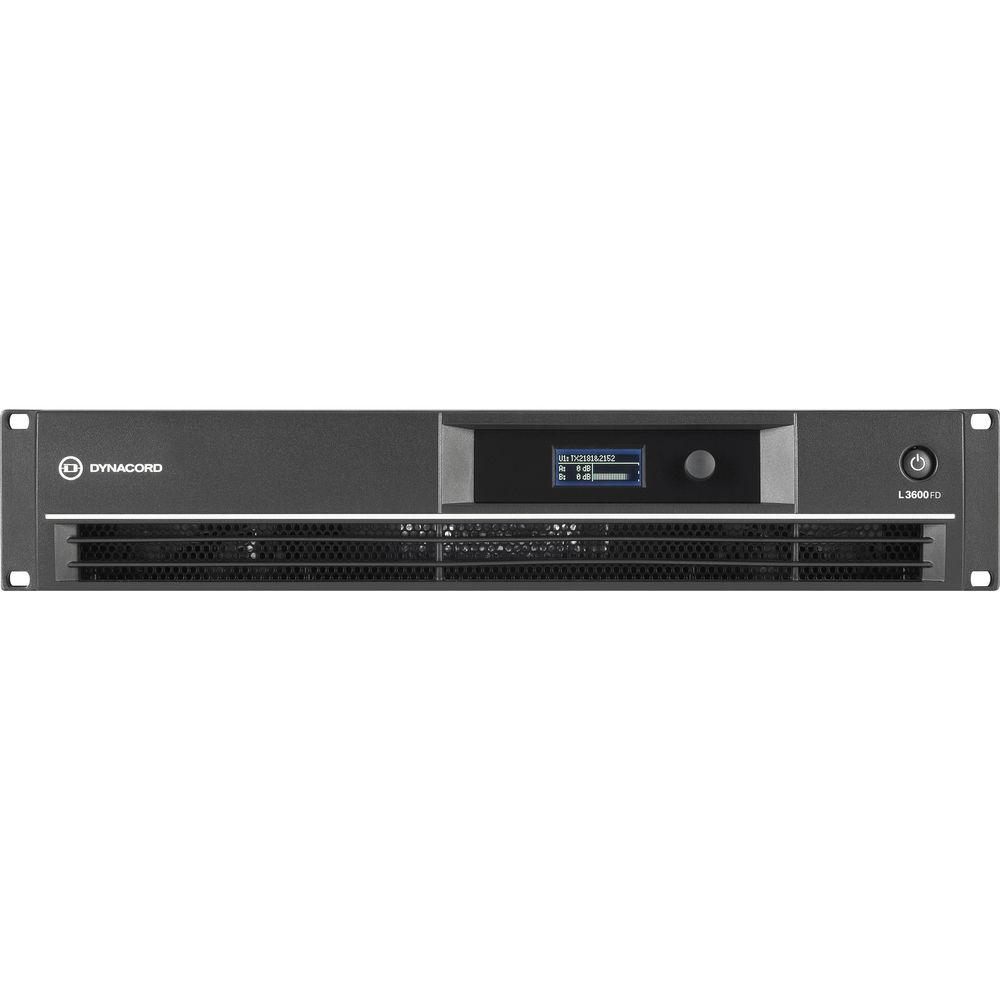

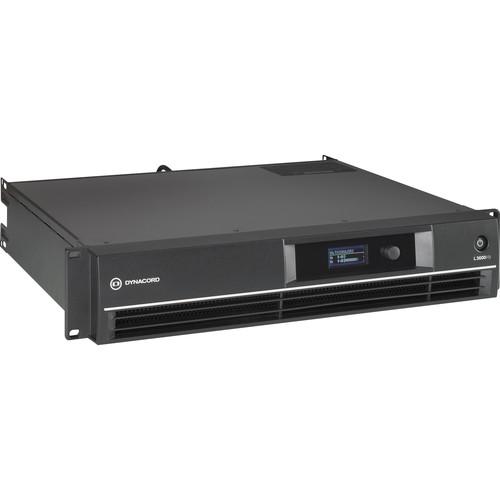

Dynacord L3600FD L-Series FIR-Drive Power Amplifier

User Manual for Dynacord L3600FD L-Series FIR-Drive Power Amplifier 3600W

• Product category: Power Amplifiers Dynacord
• Brand: Dynacord
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dynacord Power Amplifiers

Product description

• • Live performance DSP amplifier, SpeakOn connectors
  • Fully integrated professional speaker processing with FIR Drive technology
  • Professional acoustic performance and rock-solid reliability
  • Powerful and proven audio performance
  • Engineered for constant stability at 2 Ohms
  • Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
  • High-performance bulletproof voltage handling
  • On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel; True channel grouping control with extra DSP capabilities including GEQ
  • Intuitive, powerful control software makes configuration and real time control easy. Up to 16 amp channels can be controlled and monitored simultaneously
  • Advanced FIR drive to optimize loudspeaker settings, providing premium features into an installation form factor
  • Engineered in Germany

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Dynacord L3600FD-US Specs

Load Impedance	2 Ohms 2.7 Ohms 4 Ohms 8 Ohms
Maximum Output Power	Single Channel 2 Ohms: 3200 W 2.7 Ohms: 2700 W 4 Ohms: 1800 W 8 Ohms: 950 W Dual Channel 2 Ohms: 3000 W 2.7 Ohms: 2500 W 4 Ohms: 1700 W 8 Ohms: 900 W Bridged 4 Ohms: 6000 W 8 Ohms: 3400 W
Maximum RMS Voltage Swing	90.6 V
Voltage Gain	32.0 dB (ref 1 kHz)
IMD SMPTE	IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
DIM 30	< 0.05% (3.15 kHz, 15 kHz)
Maximum Input Level	+21 dBu
Crosstalk	< -80 dB (ref. 1 kHz, at 100 W / 4 Ohms)
Frequency Response	10 Hz to 21 kHz ( Rating 70% users recommend this product to others. And what about you? This product has already been rated by 08 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
