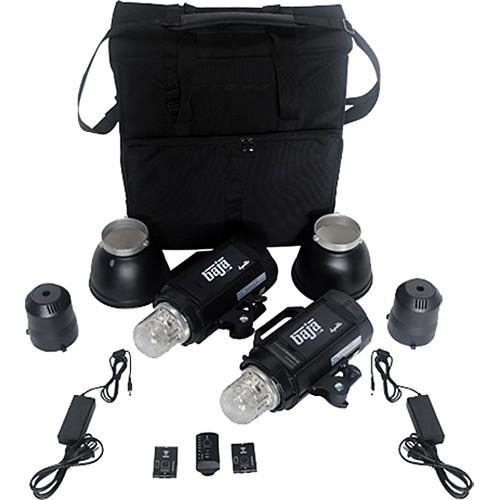

User Manual for Dynalite Baja B4 Battery Powered 2-Monolight Kit with Case Click to enlarge the picture
Contents of the user manual for the Dynalite Baja B4 Battery Powered 2-Monolight
- Product category: Monolights Dynalite
- Brand: Dynalite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynalite Monolights
|
User manual for the Dynalite Baja B4 Battery Powered 2-Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynalite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynalite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynalite product will considerably shorten its lifespan!
|
Product description Hands-On Review: Dynalite Baja B4 Portable Electronic Monolights Read More wfsvductfbtcvyzes The Baja B4 Battery Powered 2-Monolight Kit with Case from Dynalite takes all that is good from the innovative Baja flash head and doubles it and packs the heads in a carry case, ready for the road. The kit includes 2 Baja heads, batteries, 100-240 VAC chargers, umbrella/grid reflectors, wireless receivers, a wireless transmitter, and the aforementioned case.Meant for location shooting and powered by a removable, rechargeable lithium-ion battery that provides up to 550 full-power flashes on a 5 hour charge, the Baja can also be used on 100-240 VAC power with the battery in the housing even while it's charging. An LED modeling lamp is intelligently employed to avoid taxing the battery. Output is adjustable in 1/10-stop increments across a 6-stop power range. The high-performance head recycles to full power in 3.7 sec. with flash durations from 1/12800 to 1/500 sec and a special C-Mode that allows up to 15 frames per second. Since the Baja is power cordless, Dynalite has also avoided tethering you to a sync cord with the inclusion of a radio receiver for each head as well as a 16-channel transmitter that can trigger the flash heads and regulate their power at distances up to 590 feet. Canon users can add High-Speed Sync to the Baja's capabilities with the purchase of a dedicated Canon DYBRT616C transmitter. Nikon users need to purchase dedicated BYBRT616N Transmitter and also 2 DYBRR616N dedicated receivers to replace those that come with the Baja. The Nikon transmitter and receivers are available in kit # DYBRT616KTN. - Baja B4 Battery-Powered Monolight Extremely portable and featuring a 2.4 GHz power control wireless receiver, the Baja B4 Battery-Powered Monolight from Dynalite is a 400 Ws strobe that can be taken on-location without the need for any cables. The Baja B4 uses a rechargeable Li-ion battery which can provide up to 550 full-power flashes on a single charge. Also, users can adjust the power in 1/10-stop increments through a 6-stop power range and it has a recycle time of about 2.9 seconds to full power.
The Baja B4 features a flash duration ranging from 1/12800 to 1/500 second and an LED modeling light. High Speed Sync is available for most Canon DSLR's when used with the optional DYBRT616C transmitter for Canon cameras. Nikon users need to purchase a dedicated BYBRT616N Transmitter and also a DYBRR616N dedicated receiver. A built-in optical slave contributes to the wireless convenience by triggering upon the firing of other strobes. A stroboscopic C-mode is also available for 5, 10, or 15 flashes per second. Additionally, it has audible flash indicators, a glass dome, metal light stand swivel mount, and a standard Bowens accessory mount. Included with the light are a receiver, umbrella reflector, clear protective cover, and a clear protective cap. - Universal 100-240 VAC power option
- 16 channels of wireless control
- T-mode flash duration setting
- Color temperature of 5500K ±200
- Lightweight Carry Bag (Black) Carry your light stands and longer softboxes in this black Lightweight Carry Bag from Dynalite. This padded carrying case includes two padded dividers for added protection. An interior zippered pouch provides the perfect storage and opportunity to organize small accessories. Two straps allow you to comfortably carry your gear.
- Wireless Transmitter for Baja B4 Monolight The Wireless Transmitter for Baja B4 Monolight from Dynalite allows wireless triggering of the Baja, as well as power level control at distances up to 590'. Operating on the 2.4 GHz frequency, the hot shoe style transmitter offers 6 separate groups with 16 channels and flash syncs as short as 1/250 sec. This transmitter will not give you High Speed Sync. To take advantage of HSS Canon users need to purchase a dedicated DYBRT616C Transmitter. Nikon users need to purchase a dedicated BYBRT616N Transmitter and also a DYBRR616N dedicated receiver to replace the one that comes with the Baja.
In the Box Bundle Items 2 x Baja B4 Battery-Powered Monolight wfsvductfbtcvyzes - RST-165 Standard Umbrella Reflector
- PD-101 Clear Protective Cover
Lightweight Carry Bag (Black) Wireless Transmitter for Baja B4 Monolight User Manual PDF 1.3mbwfsvductfbtcvyzes Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynalite Baja B4 Battery Powered 2-Monolight Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Baja B4 Battery-Powered Monolight
| | | Maximum Power | 400 Ws | | Power Control | 6 Stops in 1/10-Stop Increments | | Flash Duration | 1/12,800 to 1/500 Sec | | Recycle Time | 2.9 Sec (Full Power) | | Color Temperature | 5500K ± 200K | | Flash Ready Indicator | Audio | | Accessory Fitting Type | Bowens S Type | | | | Sync Type | Optical, Radio | | Sync Speed | 1/1/250 Sec | | Wireless Frequency Bands | 2.4 GHz | | | | AC Input Voltage | 100to240 VAC, 50 / 60 Hz | | | | Battery Chemistry | Lithium-Ion | | Maximum Output Voltage | 11.1 VDC | | Flashes Per Charge | 550 Flashes (Full Power) | | | | Display | None | | Dimensions | H: 8.6 x W: 4.8 x L: 13.5" / H: 21.9 x W: 12.1 x L: 34.3 cm | | Weight | 6.1 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 14.0 x 9.6 x 8.0" | - Lightweight Carry Bag (Black)
| | | Interior Dimensions | 46 x 9 x 9" / 116.8 x 22.9 x 22.9 cm | | | | Closure Type | Zipper | | Carry and Transport Options | 2 x Hand Strap | | Exterior Dimensions (W x H x D) | 48 x 10 x 9.5" / 121.9 x 25.4 x 24.1 cm | | Weight | 4.3 lb / 1.9 kg | | | | Box Dimensions (LxWxH) | 21.9 x 19.7 x 11.0" | - Wireless Transmitter for Baja B4 Monolight
| | | Channels | 16 | | Groups | 6 | | Wireless Range | 590' / 180 m | | Radio Frequency | 2.4 GHz | | | | Box Dimensions (LxWxH) | 16.75 x 7.45 x 2.35" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Dynalite Baja B4 Battery Powered 2-Monolight Kit with Case
| Subject: Modeling light and flash tube parts number | | Date: 04.03.2022 23:12:52 | Name: Oscar Betancourt | | Please give me parts number for the flash tube and modeling light | | Post reply |
