User manual

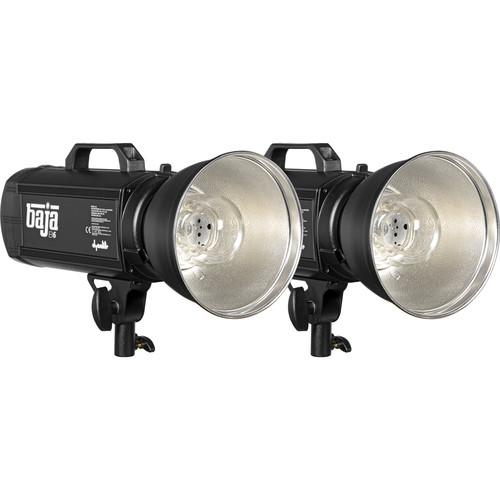

Dynalite Baja B6 Battery-Powered 2-Light Kit

User Manual for Dynalite Baja B6 Battery-Powered 2-Light Kit with Case

• Product category: Monolights Dynalite
• Brand: Dynalite
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dynalite Monolights

Product description

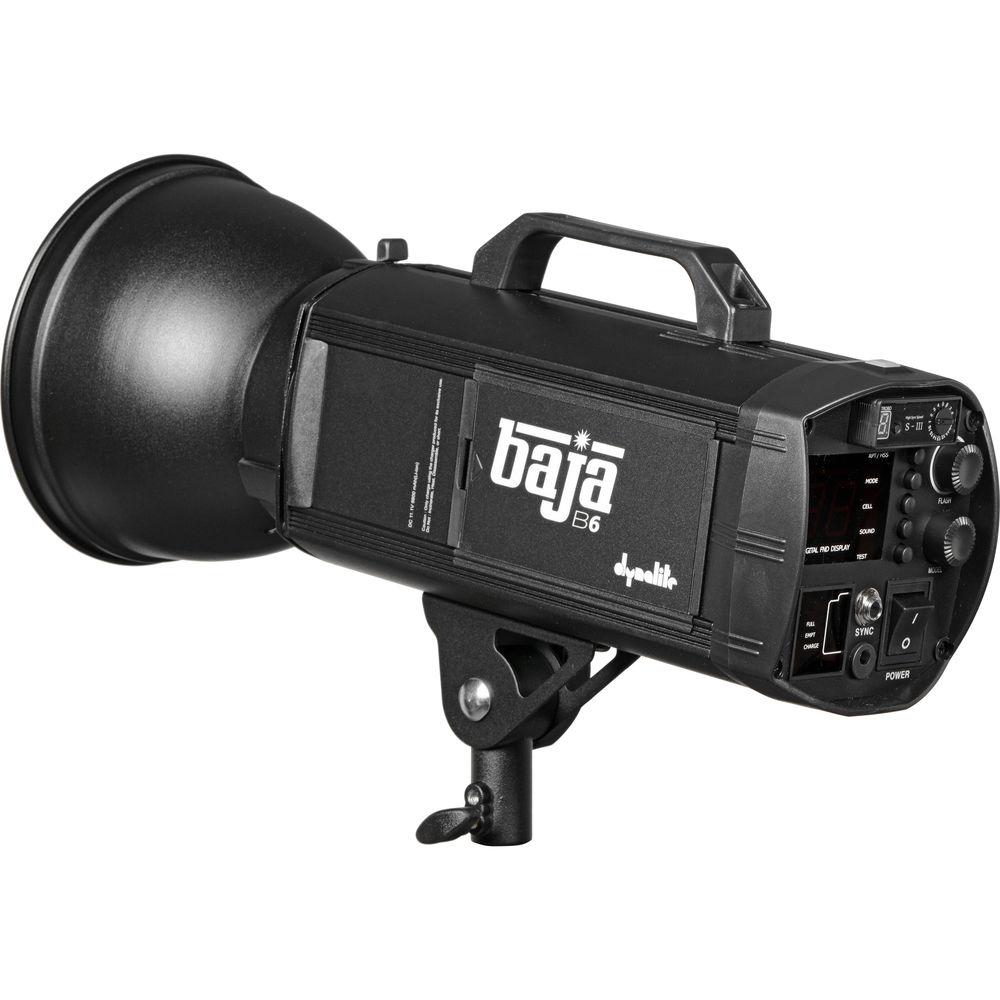

• Baja B6 Battery-Powered Monolight Extremely portable and featuring a 2.4 GHz power control wireless receiver, the Baja B6 Battery-Powered Monolight from Dynalite is a 600 Ws strobe that can be taken on-location without the need for AC cables thanks to its removable, rechargeable Li-ion battery that provides 400 full-power flashes and thousands of minimum power flashes on a single charge. Boasting recycling times 0.05 - 4.3 sec., power can be adjusted in 1/10 stop increments over a 7-stop range for maximum flexibility. An LED modeling light is used to conserve battery power.

  Among the Baja B6's other attributes are fast flash durations ranging from an action-freezing 1/12,800 to 1/500 second and High Speed Sync up to 1/8,000 sec. is available for most Canon and Nikon DSLRs. To take advantage of HSS Canon users need to purchase dedicated DYBRT616C Transmitter. Nikon users need to purchase a dedicated BYBRT616N Transmitter and also a DYBRR616N dedicated receiver to replace the one that comes with the Baja. A traditional built-in optical slave is included too, for triggering the Baja with another flash. A stroboscopic C-mode is also available for 5, 10, or 15 flashes per second. The Baja B6 includes a glass dome, metal light stand mount, standard Bowens accessory mount, wireless receiver, umbrella reflector and a protective cap.
  • Universal 100-240 VAC power option
  • 16 Channels of wireless control with optional transmitter from up to 590' away
  • T-mode fast flash duration setting

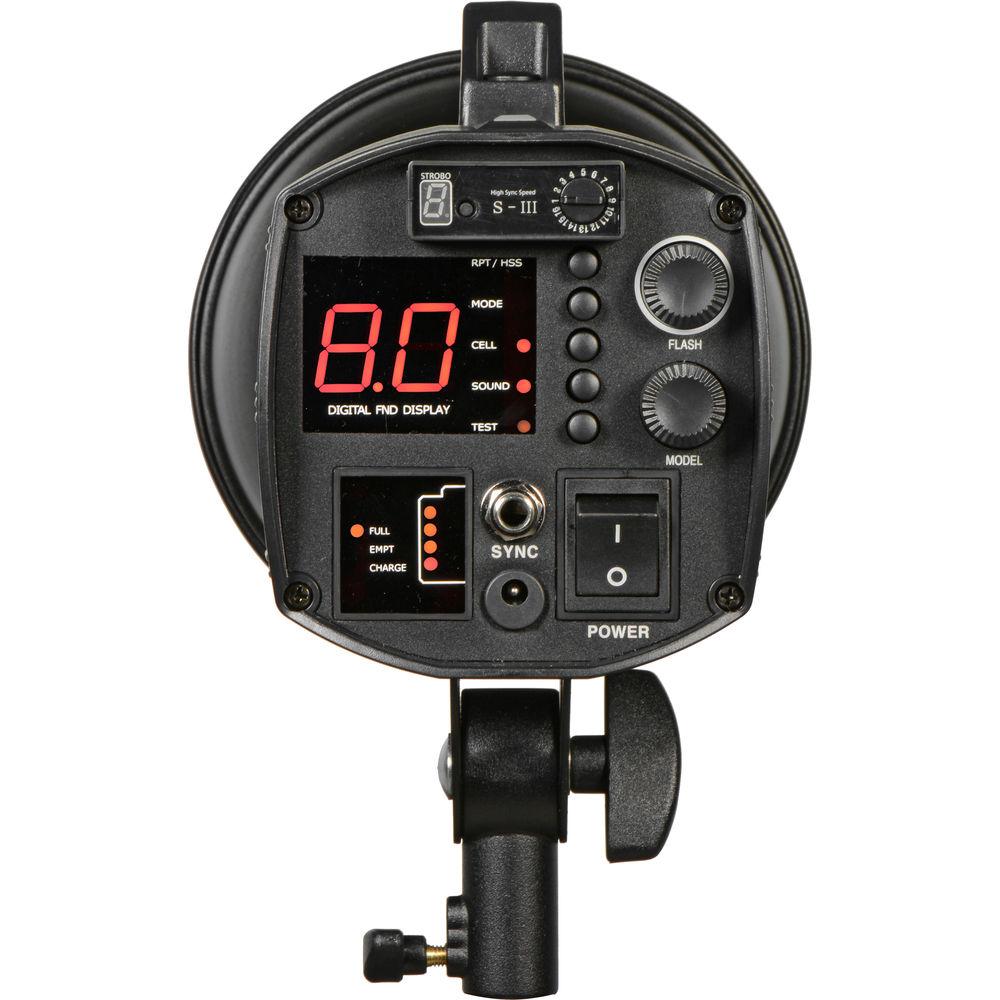

  • Digital display screen
  • Color temperature of 5500K +/- 200 K

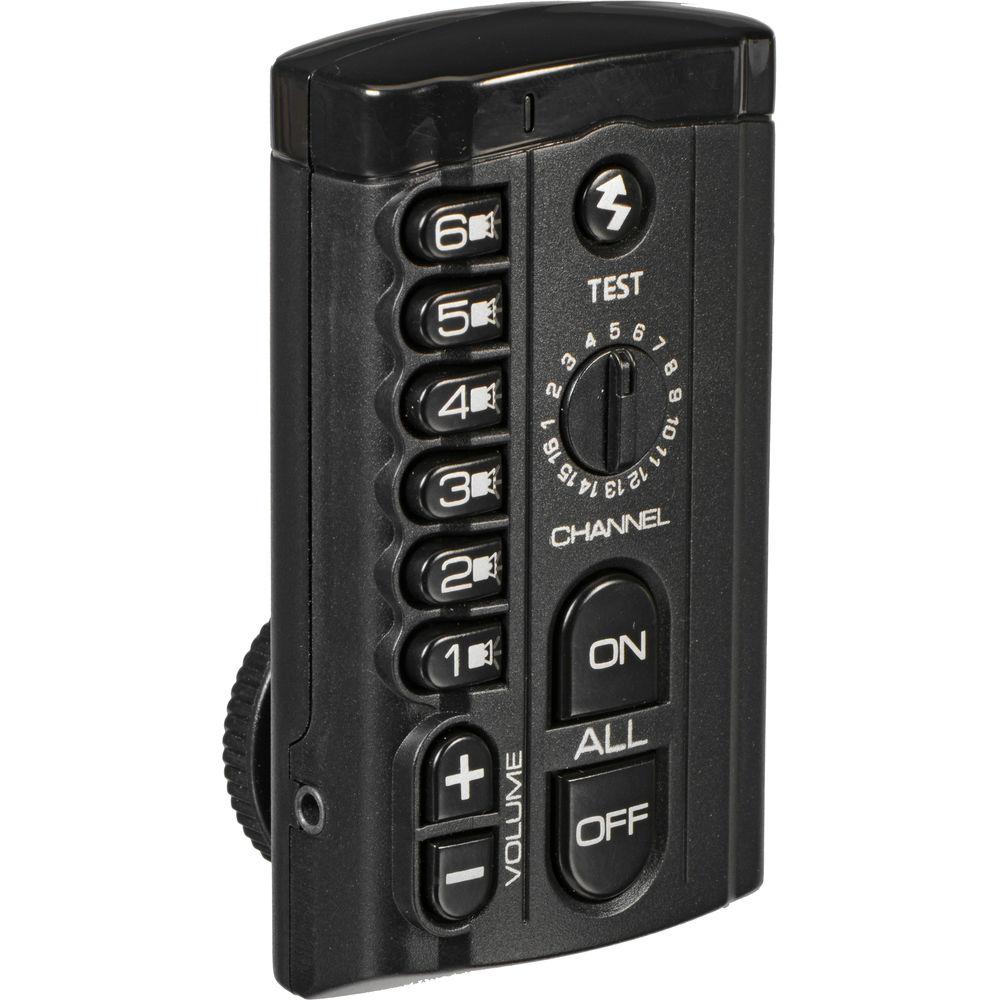

• Wireless Transmitter for Baja B4 Monolight The Wireless Transmitter for Baja B4 Monolight from Dynalite allows wireless triggering of the Baja, as well as power level control at distances up to 590'. Operating on the 2.4 GHz frequency, the hot shoe style transmitter offers 6 separate groups with 16 channels and flash syncs as short as 1/250 sec. This transmitter will not give you High Speed Sync. To take advantage of HSS Canon users need to purchase a dedicated DYBRT616C Transmitter. Nikon users need to purchase a dedicated BYBRT616N Transmitter and also a DYBRR616N dedicated receiver to replace the one that comes with the Baja.

• Battery Charger for Baja B4 Monolight

• Wireless Receiver for Baja B4 Monolight

• RST-165 Standard 7" Umbrella Reflector

• Interchangeable Lithium-ion Battery for Baja B4 and B6 Monolights

• Pyrex Protective Cover (Clear)

• Protective Cap for FAME and XB Prime Monolights

• Limited 1-Year Warranty

• AA Battery

• Limited 1-Year Warranty

Also Includes

• Padded Carrying Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Baja B6 Battery-Powered Monolight

  Maximum Power	600 Ws
  Power Control	7 Stops in 1/10-Stop Increments
  Guide Number	147.6' / 45 m at ISO100
  Flash Duration	t.5: 1/12,800 to 1/350 Sec
  Recycle Time	0.05 to 4.3 Sec ()
  Color Temperature	5500K ± 200K
  Flash Ready Indicator	Audio
  Accessory Fitting Type	Bowens S Type

  Type	LED
  Wattage	5 W

  Sync Type	Optical, Radio
  Sync Speed	1/1/250 Sec 1/1/8000 Sec (High-Speed)
  Wireless Frequency Bands	2.4 GHz

  AC Input Voltage	110to230 VAC, 50 / 60 Hz

  Battery Chemistry	Lithium-Ion
  Maximum Output Voltage	11.1 VDC
  Capacity (mAh)	8800 mAh
  Flashes Per Charge	400 Flashes (Full Power) 2000 Flashes (Minimum Power)

  Display	None
  Dimensions	H: 10.0 x W: 4.7 x L: 13.7" / H: 255.0 x W: 120.0 x L: 347.0 cm
  Weight	7.2 lb / 3.3 kg

  Box Dimensions (LxWxH)	16.5 x 9.7 x 8.0"

• Wireless Transmitter for Baja B4 Monolight

  Channels	16
  Groups	6
  Wireless Range	590' / 180 m
  Radio Frequency	2.4 GHz

  Sync Speed	1/250 Sec

  Battery Type	1 x AA

  Box Dimensions (LxWxH)	16.75 x 7.45 x 2.35"
