User Manual for Dynalite Baja B6 Battery-Powered Monolight Click to enlarge the picture
Contents of the user manual for the Dynalite Baja B6 Battery-Powered Monolight
- Product category: Monolights Dynalite
- Brand: Dynalite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynalite Monolights
User manual for the Dynalite Baja B6 Battery-Powered Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynalite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynalite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynalite product will considerably shorten its lifespan!

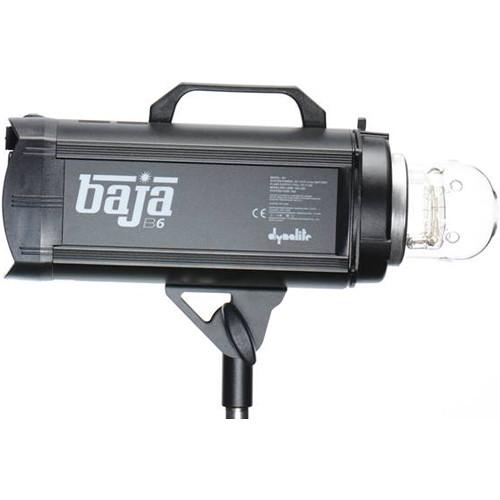

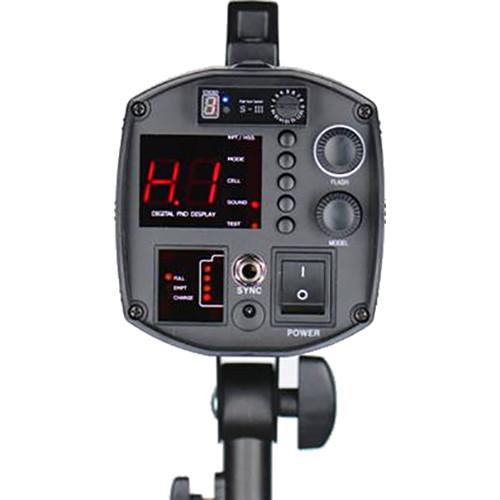

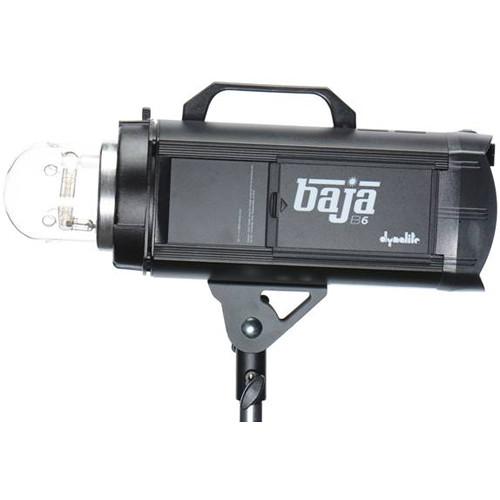

Product description Extremely portable and featuring a 2.4 GHz power control wireless receiver, the Baja B6 Battery-Powered Monolight from Dynalite is a 600 Ws strobe that can be taken on-location without the need for AC cables thanks to its removable, rechargeable Li-ion battery that provides 400 full-power flashes and thousands of minimum power flashes on a single charge. Boasting recycling times 0.05 - 4.3 sec., power can be adjusted in 1/10 stop increments over a 7-stop range for maximum flexibility. An LED modeling light is used to conserve battery power.
Among the Baja B6's other attributes are fast flash durations ranging from an action-freezing 1/12,800 to 1/500 second and High Speed Sync up to 1/8,000 sec. is available for most Canon and Nikon DSLRs. To take advantage of HSS Canon users need to purchase dedicated DYBRT616C Transmitter. Nikon users need to purchase a dedicated BYBRT616N Transmitter and also a DYBRR616N dedicated receiver to replace the one that comes with the Baja. A traditional built-in optical slave is included too, for triggering the Baja with another flash. A stroboscopic C-mode is also available for 5, 10, or 15 flashes per second. The Baja B6 includes a glass dome, metal light stand mount, standard Bowens accessory mount, wireless receiver, umbrella reflector and a protective cap.
- Universal 100-240 VAC power option
- 16 Channels of wireless control with optional transmitter from up to 590' away
- T-mode fast flash duration setting
In the Box Dynalite Baja B6 Battery-Powered Monolight Battery Charger for Baja B4 Monolight wuqsavyfbsuduuftuxty Wireless Receiver for Baja B4 Monolight RST-165 Standard 7" Umbrella Reflector Interchangeable Lithium-ion Battery for Baja B4 and B6 Monolights Pyrex Protective Cover (Clear) Protective Cap for FAME and XB Prime Monolights Limited 1-Year Warranty Table of Contents
- Color temperature of 5500K +/- 200 K
Upload User Manual
Have you got an user manual for the Dynalite Baja B6 Battery-Powered Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Dynalite B6 Specs
| Maximum Power || 600 Ws |
| Power Control || 7 Stops in 1/10-Stop Increments |
| Guide Number || 147.6' / 45 m at ISO100 |
| Flash Duration || t.5: 1/12,800 to 1/350 Sec |
| Recycle Time || 0.05 to 4.3 Sec () |
| Color Temperature || 5500K ± 200K |
| Flash Ready Indicator || Audio |
| Accessory Fitting Type || Bowens S Type |
| Sync Type || Optical, Radio |
| Sync Speed || 1/1/250 Sec |
1/1/8000 Sec (High-Speed)
| Wireless Frequency Bands || 2.4 GHz |
| AC Input Voltage || 110to230 VAC, 50 / 60 Hz |
| Battery Chemistry || Lithium-Ion |
| Maximum Output Voltage || 11.1 VDC |
| Capacity (mAh) || 8800 mAh |
| Flashes Per Charge || 400 Flashes (Full Power) |
2000 Flashes (Minimum Power)
| Display || None |
| Dimensions || H: 10.0 x W: 4.7 x L: 13.7" / H: 255.0 x W: 120.0 x L: 347.0 cm |
| Weight || 7.2 lb / 3.3 kg |
| Package Weight || 10.85 lb |
| Box Dimensions (LxWxH) || 16.5 x 9.7 x 8.0" |
