User Manual for Dynalite MP800 800W s RoadMax Power Pack Click to enlarge the picture
Contents of the user manual for the Dynalite MP800 800W s RoadMax Power
- Product category: Power Packs Dynalite
- Brand: Dynalite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynalite Power Packs
|
User manual for the Dynalite MP800 800W s RoadMax Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynalite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynalite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynalite product will considerably shorten its lifespan!
|

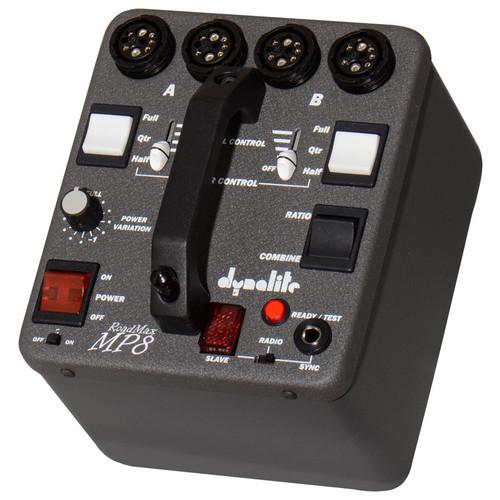

Product description This Dynalite MP800 800W/s RoadMax Power Pack is powerful and versatile enough to handle a wide variety of on-the-run assignments like fashion, corporate work, portraiture, weddings and interiors. The pack has 4 head outlets and breaks down its output symmetrically or asymmetrically over a 6 stop range with short flash durations at a super fast 1.2 seconds recycling time at full power. A variator knob allows fine tuned exposure adjustments over 2 stops in 2/10 stop increments. Triggering options include sync cord (provided), IR or optical slave as well as a built in PocketWizard 32 Channel Transceiver.Although you may be tired at the end of a long shooting day, it won't be because of your equipment. The MP800 pack weighs 5.3 lb (2.4 kg) and measures 5.87 x 6.87 x 6.12" (14.9 x 17.4 x 15.5 cm). That's a lot of power in a small package. - Built In PocketWizard 32 Channel Transceiver
- Digital radio circuitry allows you to eliminate sync cords and wirelessly synchronize any number of power packs with high consistency, sensitivity and broad range - even on bright outdoor sets. You can trigger from any PocketWizard transmitter or Sekonic meter with transmitter.
- Power Control Switch
- Two full / half / quarter power switches to provide seven basic power settings. Arc proof.
- Combined / Ratio Output Switch
- One switch lets you toggle between Symmetrical and Asymmetrical routing of the "A" and "B" flash head outlet banks. LED indicates combined mode.
- All Channel Dimmer
- Two f/stop variator fine-tunes power settings on all heads simultaneously, in 2/10 stop increments. Used in conjunction with the Power Control Switches the pack has a full 6 f/stop range.
- Modeling Light Control
- Dual proportional dimmer slide switch control includes FULL OFF so that the cooling fan may continue to run.
- Flash Head Outlets
- Four arc-protected outlets allow you to plug and unplug flash head cables without shutting down the power pack.
- Ready Light Test Switch
- This low profile button serves as a flash test switch and signals 100% flash readiness.
- Audible Ready Indicator
- 100% recycle indicator with its own ON / OFF switch for applications that demand it.
- Sync Input Socket
- Choose standard mono plug sync cord, Wein Slave Eye (responds consistently to other flashes or infrared triggering) or Pocket Wizard Receiver. ISO approved low voltage sync circuit.
In the Box Dynalite MP800 800W/s RoadMax Power Pack Power Cable Sync Cord, 1/4" Diamater Phono to PC - 16' (5m) 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynalite MP800 800W s RoadMax Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynalite MP800 Specs | Maximum Watt/Seconds | 800W/s | | Recycle Time | 1.2 sec @ max power
Min power: Not specified by manufacturer | | Flash Duration | Not specified by manufacturer | | Flash Variability | 6 Stops | | Voltage Stabilization | Yes | | Distribution | Symmetrical / Asymmetrical | | Head Outlets | 4 | | Flash Ready Indicator | LED, audible | | Operating Voltage | 120V AC | | Sync Voltage | 10V | | Built-in Slave Cell | PocketWizard radio receiver, Wein IR, optical | | Circuit Protection | Yes | | Fan Cooled | No | | Auto Dump | Yes | | Dimensions | Power pack w/ handle: 5.87 x 6.87 x 6.12" (14.9 x 17.4 x 15.5 cm) | | Weight | 5.3 lb (2.4 kg) | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 10.5 x 10.4 x 9.7" |
