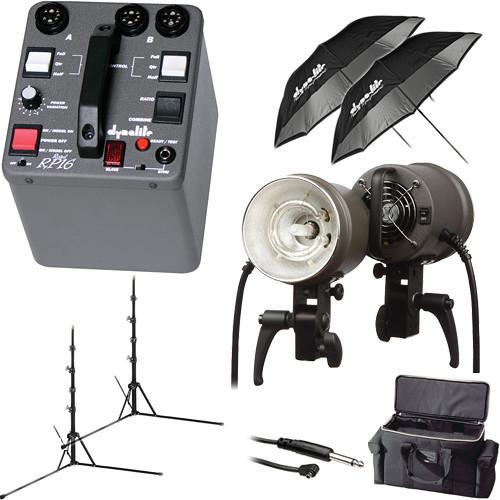

User Manual for Dynalite RK16-1222 Road 1600 W s 2 Head Kit Click to enlarge the picture
Contents of the user manual for the Dynalite RK16-1222 Road 1600 W s
- Product category: Power Packs Dynalite
- Brand: Dynalite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynalite Power Packs
|
User manual for the Dynalite RK16-1222 Road 1600 W s contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynalite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynalite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynalite product will considerably shorten its lifespan!
|
Product description This Dynalite MK16-1222 Road 1600 W/s 2 Head Kit is powerful and versatile enough to handle a wide variety of on-the-run assignments like fashion, corporate work, portraiture, weddings and interiors. The powerful RP1600 pack has 3 head outlets and breaks down its output symmetrically or asymmetrically over a 6 stop range with short flash durations at a super fast 2.2 seconds recycling time at full power. A variator knob allows fine tuned exposure adjustments in 2/10 stop increments over 2 stops. Triggering options include sync cord (provided), Wein IR or an optical slave.The included MH2015 flash heads have a 250W modeling light, user replaceable 2000W/s capacity flash tube and an ideal color temperature of 5400K. Fan-cooling means that you'll get extended life out of both the flash tube and modeling lamp. The 18' power cable insures maximum placement options regarding the power pack and can be augmented by optional head extension cables. The kit's light stands and umbrellas (2 each) both employ a unique design that lets them fold in upon themselves to fit in the soft-sided Cordura case.Although you may be tired at the end of a long shooting day, it won't be because of your equipment. The RP1600 pack weighs only 7.2 lb, the MH2015 head less than 2 lb and the entire kit approximately 25 lb. - RP1600 Road Power Pack
-
- Fires from the included sync cord, the built-in optical slave or the Wein IR slave.
- Varies only ~0.1 stop from shot to shot
- Color temperature varies ±80°K over the exposure range - not visible to the human eye
- Compact and lightweight
- Very precise power controls provide 6 stop power range
- Fast - Recycles in 2.2 seconds @ full power
- When used with the power control switches, up to 18 different settings with a single flash head are possible.
- Switchable acoustic signal "beeps" when unit is fully recycled
- MH2015 Roadmax Flash Heads
-
- Fan cooling of the lamp head allows for increased protection under the most demanding of circumstances
- Bright 250W quartz halogen for easy positioning and focusing
- Continuous tilting for stand or suspended mounting
- No tools are required to replace the "plug & play" flashtube assemblies
- The 140° reflectors are built-in - each head can be outfitted with optional parabolic reflectors, barn doors, and grid spot holders for greater light control
- Umbrellas
- 40" white umbrellas have black backing to prevent stray light and fold down to only 20"
- Light Stands
- Compact light stands provide support to almost 7', and pack away easily
- Sync Cord
- Monoplug to PC 16' (5 m) is included
- Kit Case
- Soft padded case, with movable dividers
In the Box Dynalite RK16-1222 Road 1600 W/s 2 Head Kit RP1600 1600W/s Road Power Pack 2 x MH2050 Roadmax Flash Head - 2000 Watt/Seconds 2 x Umbrella - Compact - 40" 2 x Compact Lightweight Light Stand (Black, 6.5') Sync Cord, 1/4" Diamater Phono to PC - 16' (5m) Soft Kit Case Two Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynalite RK16-1222 Road 1600 W s 2 Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynalite RP1600 Specs | Maximum Watt/Seconds | Power pack: 1600
Each flash head: 2000 | | Guide Number | 169: f/16.9 @ 10' @ 100 ISO, with MH2015 head | | Recycle Time | 2.2 sec @ max power
Min power: Not specified by manufacturer | | f/Stop Range | 6 stops, Symmetrical / Asymmetrical | | Flash Duration | Not specified by manufacturer | | Head Outlets | 3 | | Flash Ready Indicator | LED, audible | | Built-in Slave Cell | Switchable IR, optical | | Circuit Protection | Yes | | Sync Voltage | Circuit voltage: 10 V | | Fan Cooled | Power pack: No, flash heads: Yes | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes, add on RR-80, RR-50 | | Cable Length | Head: 18' (5.45 m)
Sync: 16' (5 m) Mono to PC | | Modeling Light Wattage | 250W (GBESS), switchable | | Protective Glass Dome | No | | Dimensions | Power pack w/ handle: 5.9 x 6.9 x 8" (14.9 x 17.5 x 20.3 cm)
Each flash head: 5.5 x 5 x 7.5" (13.9 x 12.7 x 19 cm) folded
Kit in case: 21 x 11 x 10" (53 x 28 x 25 cm) (interior) | | Weight | Power pack: 7.2 lb (3.26 kg)
Each flash head: 1.93 lb (0.87 kg) | | Kit Weight | Approximately: 25.4 lb (11.52 kg) including case | | | | Package Weight | 28.3 lb | | Box Dimensions (LxWxH) | 21.8 x 19.3 x 11.3" |
