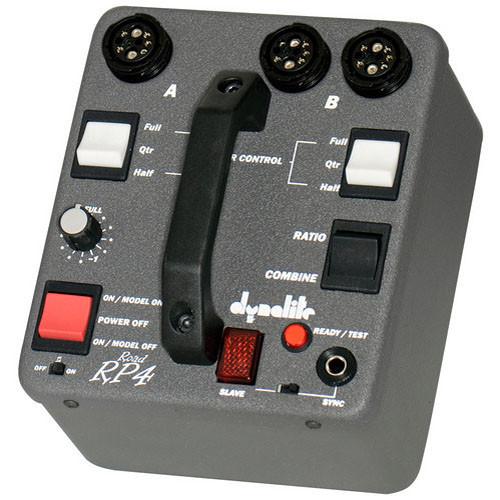

Product description This Dynalite RK4-1222 Road 400W/s 2 Head Kit is powerful and versatile enough to handle a wide variety of on-the-run assignments like fashion, corporate work, portraiture, weddings and interiors. The RP400 pack has 3 head outlets and breaks down its output symmetrically or asymmetrically over a 6 stop range with short flash durations at a super fast 1.0 seconds recycling time at full power. A variator knob allows fine tuned exposure adjustments over 2 stops in 2/10 stop increments. Triggering options include sync cord (provided), IR or optical slave. The included MH2015 flash heads have a 250W modeling light, 16' power cable, user replaceable 2000W/s capacity flash tube and an ideal color temperature of 5400K. Fan-cooling means that you'll get extended life out of both the flash tube and modeling lamp. The kit's stands and umbrellas employ a unique design that lets them fold in upon themselves to fit in the sturdy Cordura case.Although you may be tired at the end of a long shooting day, it won't be because of your equipment. The RP400 pack weighs a mere 4.1 lb and the MH2015 flash heads about 2 lb each. - RP400 Road Power Pack
-
- Fires the included sync cord or built-in IR receiver or optical slave (from other flashes).
- Varies only ~0.1 stop from shot to shot
- Color temperature varies ±80°K over the exposure range - not visible to the human eye
- Compact and lightweight
- Very precise power controls provide 6 stop power range
- Fast - Recycles in 1.0 seconds @ full power
- When used with the power control switches, up to 18 different settings with a single flash head are possible.
- Switchable acoustic signal "beeps" when unit is fully recycled
- MH2015 Flash Heads
-
- Fan cooling of the lamp head allows for increased protection under the most demanding of circumstances
- Bright 250W quartz halogen for easy positioning and focusing.
- Continuous tilting for stand or suspension mounting
- No tools are required to replace the "plug & play" flashtube assemblies
- The reflectors are built-in - each head can be outfitted with optional parabolic reflectors, barn doors, and grid spot holders for greater light control.

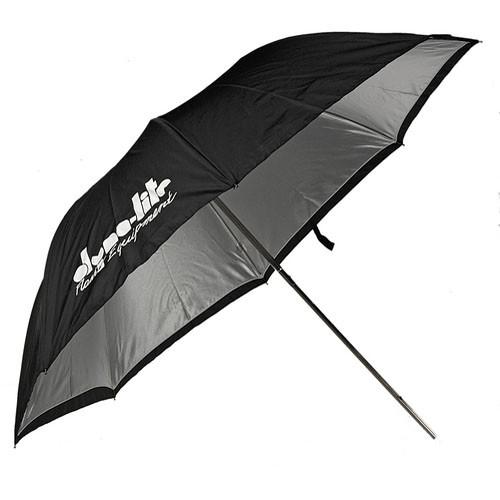

- Umbrellas
- 40" white umbrellas have black backing to prevent stray light and fold down to only 20"

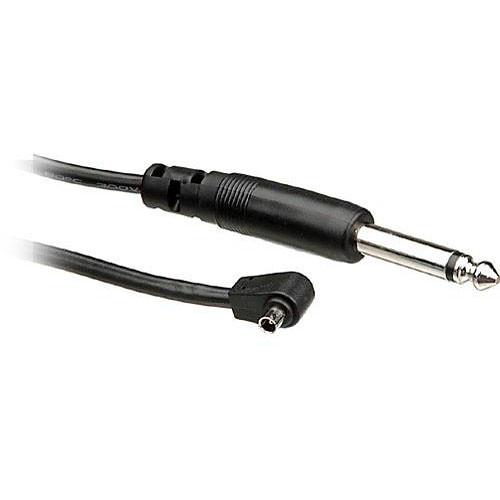

- Sync Cord
- Monoplug to PC 16' (5 m) is included
- Kit Case
- Padded case, with movable dividers

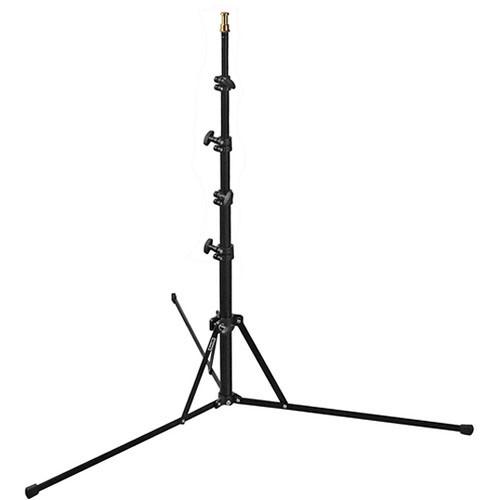

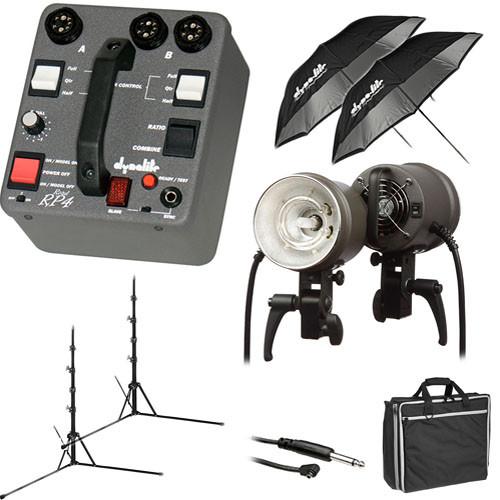

In the Box Dynalite RK4-1222 Road 400 W/s 2 Head Kit RP400 400W/s Road Power Pack 2 x MH2015 Road Flash Head 2 x Umbrella - Compact - 40" 2 x Compact Lightweight Light Stand (Black, 6.5') Dynalite Kit Case Sync Cord, 1/4" Diamater Phono to PC - 16' (5m) Two Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynalite RK4-1222 Road 400 W s 2 Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynalite RP400 Specs | Maximum Watt/Seconds | Power pack: 400
Each flash head: 2000 | | Power Requirements | 120V AC | | Recycle Time | 1.0 sec @ max power
Min power: Not specified by manufacturer | | f/Stop Range | 6 stops, Symmetrical / Asymmetrical | | Flash Duration | Not specified by manufacturer | | Head Outlets | 3 | | Flash Ready Indicator | LED, audible | | Built-in Slave Cell | Phono plug sync, Wein IR, optical | | Circuit Protection | Yes | | Sync Voltage | Circuit voltage: 10V | | Fan Cooled | Power pack: No, Flash heads: Yes | | User Replaceable Flashtube | Yes | | Changeable Reflector | RR-50 or RR-80 | | Cable Length | Attached: 16' (5 m)
Sync: Mono to PC: 16' (5 m) | | Modeling Light Wattage | 250W (GBESS), switchable | | Protective Glass Dome | No | | Dimensions | Power pack w/ handle: 5.87 x 6.87 x 5.25" (14.9 x 17.4 x 13.3 cm)
Each flash head: 5.5 x 5 x 7.5" (13.9 x 12.7 x 19 cm) folded
Kit in case: Not specified by manufacturer | | Weight | Power pack: 4.1 lb (1.8 kg)
Each flash head w/o cable: 1.93 lb (0.87 kg) | | | | Package Weight | 23.5 lb | | Box Dimensions (LxWxH) | 22.0 x 19.4 x 10.8" |
