User Manual for Dynalite SH2000 Studio 2000 Watt Second Flash Head Click to enlarge the picture
Contents of the user manual for the Dynalite SH2000 Studio 2000 Watt Second
- Product category: Power Pack Heads Dynalite
- Brand: Dynalite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynalite Power Pack Heads
 |
User manual for the Dynalite SH2000 Studio 2000 Watt Second contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynalite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynalite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynalite product will considerably shorten its lifespan!
|

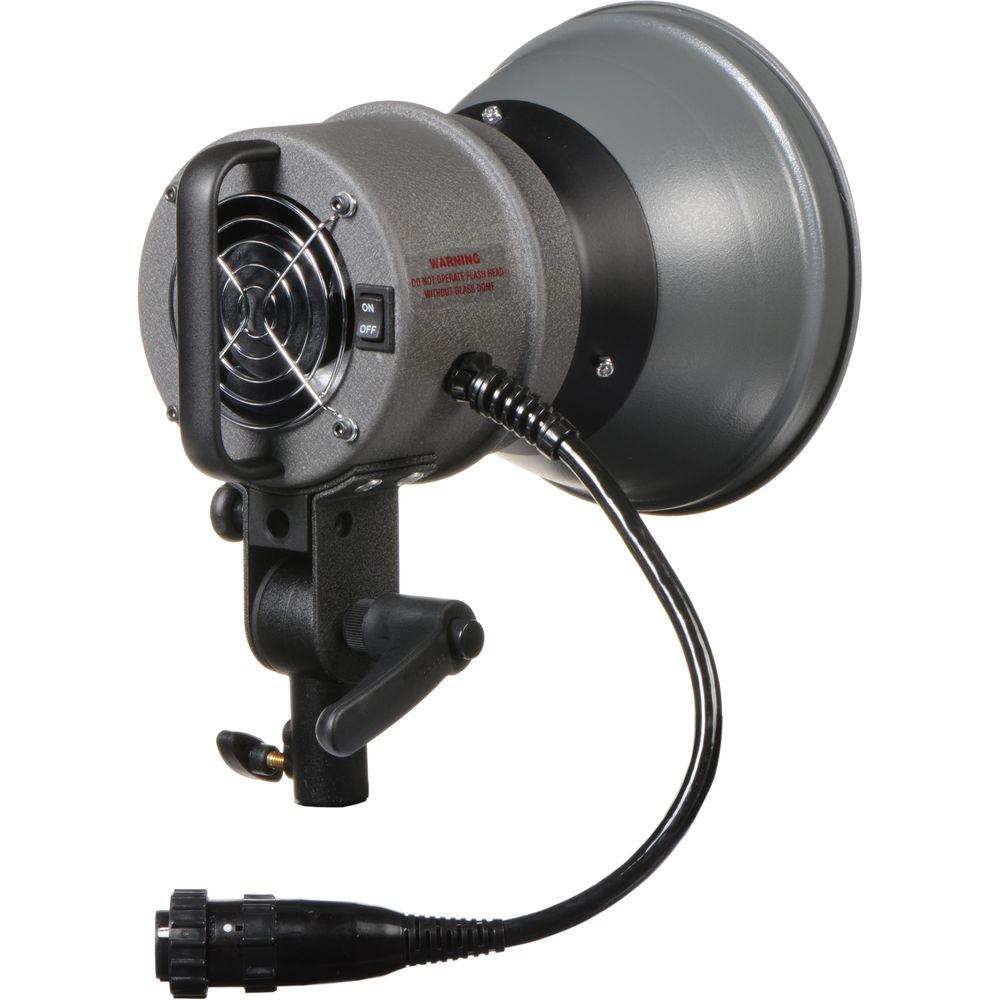

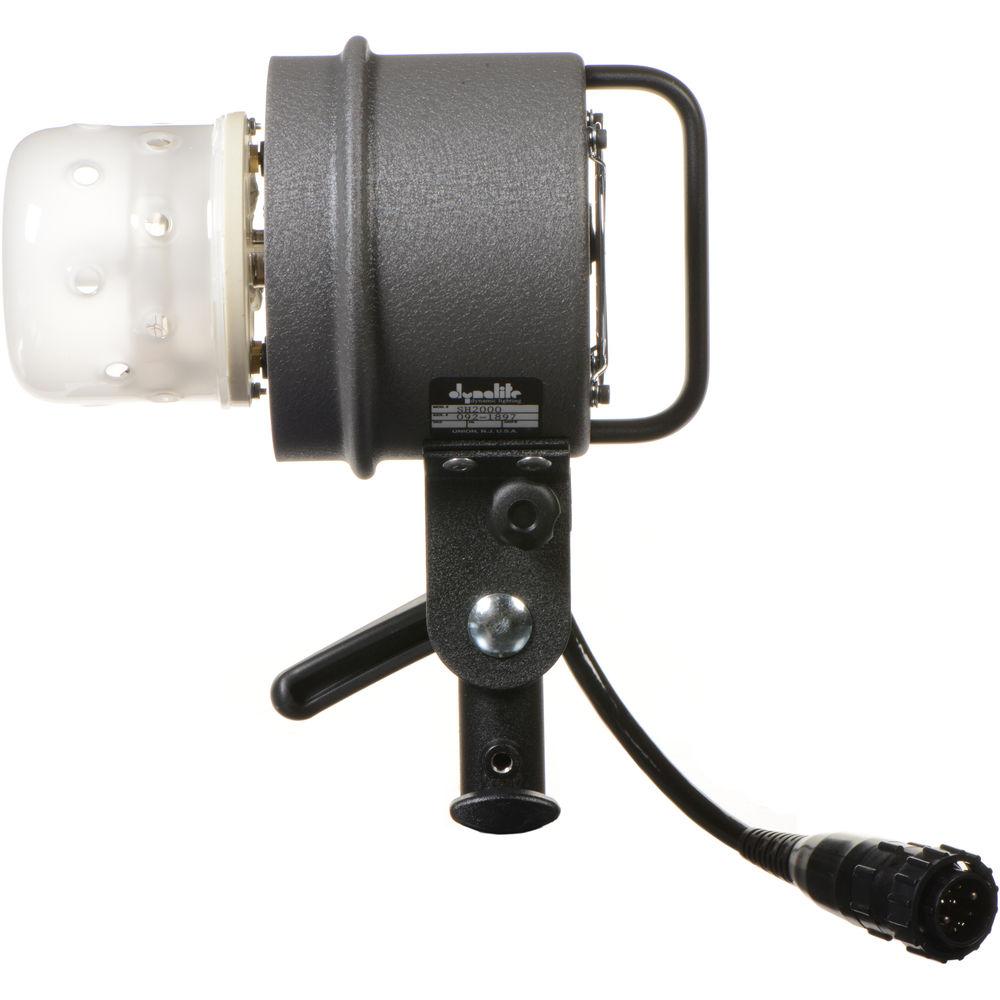

Product description The Dynalite SH2000 Studio Flash Head gives photographers the control they require in the studio and the ability of bringing their same lights on location, because every component was designed to minimal size and weight specifications. The SH2000 head is a fan cooled 2000 watt/second studio flash head with a frosted glass dome for even light dispersion and more accurate previewing from the 250 Watt quartz modeling lamp. The SH2000 head is designed for use with a variety of studio type reflectors for total control of lighting effects (See "Accessories"). A power supply for this flash head is required. - Compact Design
- The SH2000 is one of the most portable lamp heads available
- Easy to Control
- Integral tilt mechanism for continuous tilting for stand or suspension mounting.
- Easily Replaceable Flashtube
-
- 2000w/s UV coated flashtube 4003 with a frosted glass dome protector
- A clear glass domed flashtube is also available
- No tools are required to replace this "plug & play" assembly.
- Flash tube is hand mounted and tested for flash consistency, power output and color temperature accuracy.
- Frosted Dome
-
- Slightly softens light output
- Modeling light and flash light position match closely, for a very accurate preview of what will actually happen with your light when the flash goes off

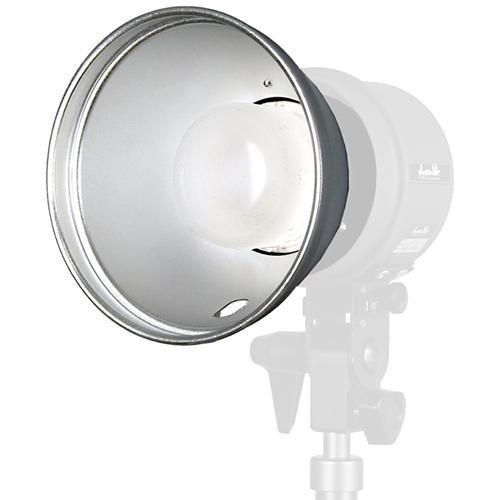

- Removable Reflector
- The SH2000 head can be outfitted with parabolic reflectors, barndoors, and grid spot holders for greater light control
- Long-Reaching Cable
-
- An 18' detachable cable is included
- Head extension cables are available for heads used at longer distances from the power pack
- Fan Cooled
- Fan cooling of the lamp head allows for increased protection under the most demanding of circumstances.
In the Box Dynalite SH2000 Studio 2000 Watt/Second Flash Head 2000 W/S UV Flashtube with Frosted Dome rurtaasbvterq ESS Lamp - 250W/120V Extension Cable for Dynalite Flash Heads - 18' (5.4m) Grid Reflector, 65 Degrees - 7" Flashtube Protective Cover Two Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynalite SH2000 Studio 2000 Watt Second Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynalite SH2000 Specs | Maximum Watt/Seconds | 2000 | | User Replaceable Flashtube | Yes (4003) | | Changeable Reflector | Yes, any of nine different 40 series reflectors can be used | | Circuit Protection | No | | Cable Length | 18' (5.4 m) | | Modeling Light Wattage | 250W, 120V | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Yes, Frosted | | Fan Cooled | Yes | | Dimensions | 9 x 7" (22.8 x 17.8cm) with handle and reflector | | Weight | 3.25 lbs (1.48kg) | | | | Package Weight | 6.82 lb | | Box Dimensions (LxWxH) | 16.8 x 12.5 x 9.95" |
