User Manual for Dynalite SP1600 1600W s Studio Power Pack Click to enlarge the picture
Contents of the user manual for the Dynalite SP1600 1600W s Studio Power
- Product category: Power Packs Dynalite
- Brand: Dynalite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynalite Power Packs
|
User manual for the Dynalite SP1600 1600W s Studio Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynalite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynalite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynalite product will considerably shorten its lifespan!
|

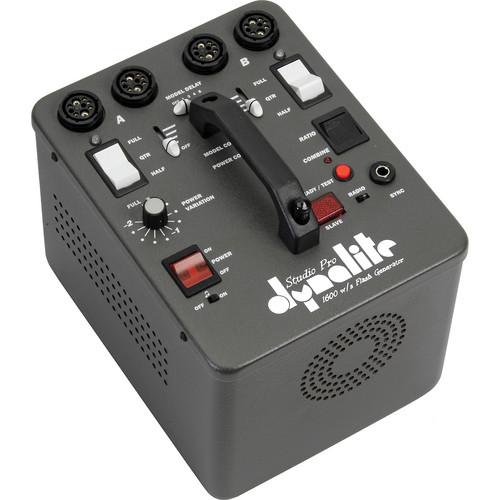

Product description This Dynalite SP1600 1600W/s Studio Power Pack is powerful and versatile enough to handle a wide variety of on-the-run assignments like fashion, corporate work, portraiture, weddings and interiors, but the rigors of the studio is where it really shines. If you need the speed and consistency necessary to shoot at full power all day long then this pack is for you.The SP1600 has 4 head outlets and breaks down its output symmetrically or asymmetrically over a 6 stop range with short flash durations. Dynalite has beefed up the SP1600's capacitors and profile and added a bit of weight to give you a super-fast recycle time of 1.2 seconds at full power. A variator knob allows fine tuned exposure adjustments over 2 stops in 2/10 stop increments. Triggering options include sync cord (provided), IR or optical slave as well as a built in PocketWizard radio receiver. Although you may be tired at the end of a long shooting day, it won't be because of your equipment. Even with all of that power the SP1600 pack weighs in at 12.1 lb (5.5 kg) and measures 7.12 x 9.25 x 7.8" (18 x 23.5 x 19.8 cm). - Built In PocketWizard Receiver
- Digital radio circuitry allows you to eliminate sync cords and wirelessly synchronize any number of power packs with high consistency, sensitivity and broad range - even on bright outdoor sets. You can trigger from any PocketWizard transmitter or Sekonic meter with transmitter.
- Power Control Switch
- Two full / half / quarter power switches to provide seven basic power settings. Arc proof
- Combined / Ratio Output Switch
- One switch lets you toggle between Symmetrical and Asymmetrical routing of the "A" and "B" flash head outlet banks. LED indicates combined mode. Arc proof.
- All Channel Dimmer
- Two f/stop variator fine-tunes power settings on all heads simultaneously, in 2/10 stop increments. Used in conjunction with the Power Control Switches the pack has a full 6 f/stop range.
- Modeling Light Control
- Dual proportional dimmer slide switch control includes FULL OFF so that the cooling fan may continue to run.
- Flash Head Outlets
- Four arc-protected outlets allow you to plug and unplug flash head cables without shutting down the power pack.
- Ready Light Test Switch
- This low profile button serves as a flash test switch and signals 100% flash readiness
- Audible Ready Indicator
- 100% recycle indicator with its own ON / OFF switch for applications that demand it.
- Sync Input Socket
- Choose standard mono plug sync cord, Wein Slave Eye (responds consistently to other flashes or infrared triggering) or Pocket Wizard Receiver. ISO approved low voltage sync circuit.
In the Box Dynalite SP1600 1600W/s Studio Power Pack Power Cable DY0316X 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynalite SP1600 1600W s Studio Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynalite SP1600 Specs | Maximum Watt/Seconds | 1600W/s | | Recycle Time | 1.2 sec @ max power | | Flash Duration | Not specified by manufacturer | | Flash Variability | 6 Stops | | Voltage Stabilization | Yes | | Distribution | Symmetrical / Asymmetrical | | Head Outlets | 4 | | Flash Ready Indicator | LED, audible | | Operating Voltage | 120V AC | | Sync Voltage | 10V | | Built-in Slave Cell | PocketWizard radio receiver, Wein IR, optical | | Circuit Protection | Yes | | Fan Cooled | No | | Auto Dump | Yes | | Dimensions | 7.12 x 9.25 x 7.8" (18 x 23.5 x 19.8 cm) | | Weight | 12.1 lb (5.5 kg) | | | | Package Weight | 15.325 lb | | Box Dimensions (LxWxH) | 16.35 x 13.9 x 10.7" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
