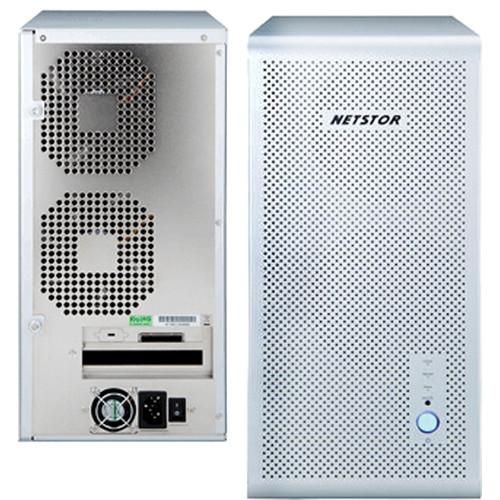

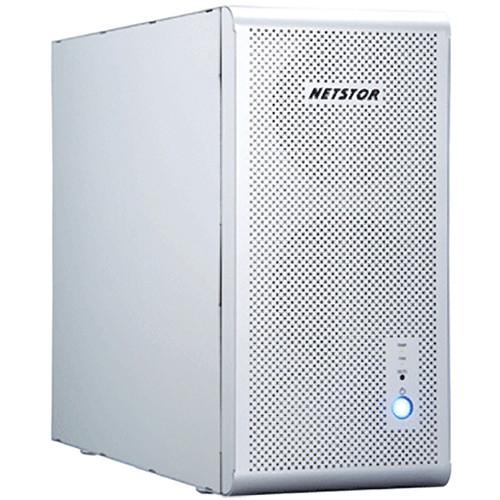

Product description The 16 Bay Netstor PCIe SAS/SATA Desktop JBOD from Dynapower USA is compatible with SAS/SATA 6/3 Gbps HDDs. It features easy installation and up to a 40 Gbps fast data transfer experience with PCIe 2.0 x8 interface and flexible SAS/SATA backplane. The host RAID HBA incorporated inside the NS780S enables this storage unit to provide RAID protection with the highest performance. The 16 bay Netstor's real-time monitoring with the front fan, TEMP, global HDD LEDs and the built-in buzzer alarm always allows users to know the status of the environment. - Fully Applies to Video Editing Environments
- The 16 bay desktop storage can achieve 1648 MBps read and 1578 MBps write speeds* through fast data transfer rates and RAID level data protection. It meets the modern demands of high-definition video editing in uncompressed 4K (4096×2160), 2K (2048×1556), HD (1920×1080) and 3D animation. As NS780S is populated with the 3 TB HDDs, the storage can be up to 48 TB in total raw capacity that saves up to 11 hours of uncompressed 10-bit 4K video. It can easily handle uncompressed 4K, 2K, 10-bit 1080 4:4:4 HD, ProRes 422, uncompressed 8-bit 1080 HD, DV, HDV and DVCPRO video with high-speed data transfer rates. 1
Please Note: *The performance data is tested with AJA System Test 6.0.1 under the following conditions: Areca ARC-1882-ix-16 dual-core RAID card and sixteen SATA 6 Gbps HDDs with RAID 5. The result of the performance varies according to the different RAID cards and hard drives employed. close - Stylish desktop 16 bay storage enclosure with host interface up to 40 Gbps bandwidth.

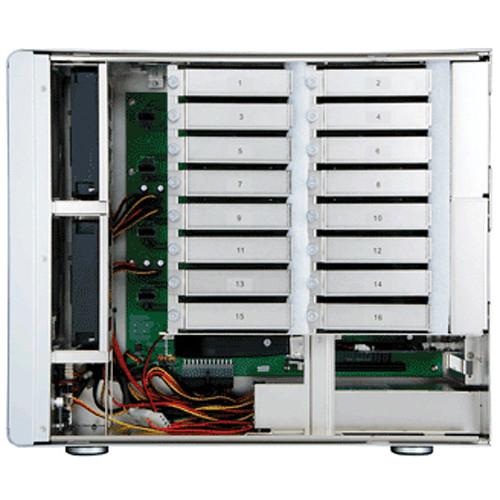

- The 16 bay backplane is designed for up to sixteen 2.5" (6.35 cm) or 3.5" (8.89 cm) SAS/SATA 6/3 Gbps drives.
- It consists of environmental monitoring for FAN failure and overheating.
- The 16 bay comes with LED indicators for HDD power, activity and failure.
- It has enclosure ventilation with ultra-quiet design for noise-sensitive environments.
UPC: 696726780113 In the Box Dynapower USA 16 Bay Netstor PCIe SAS/SATA Desktop JBOD HDD Tray x16 PCIe 2.0 x8 Host Adapter with Standard and Low-profile Host Bracket 4.92' (1.5 m) PCIe x8 Cable Internal mini-SAS (SFF8087) to mini-SAS (SFF8087) x4 Power Cord Hard Disk Drive Mounting Screw x64 Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA 16 Bay Netstor PCIe SAS SATA Desktop JBOD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA NS780S Specs Number of Bays | 16 x 2.5"/3.5" | Compatible Drive Interface | SAS, SATA III | | Power Source | Internal Power Supply | PSU Wattage | 1 x 400 W | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | Operating Temperature | 32 to 104°F / 0 to 40°C | Operating Humidity | 20 to 80% | Storage Temperature | 14 to 122°F / -10 to 50°C | | Material of Construction | Aluminum | Cooling | 4 x 120 mm Fans | Status Monitoring | LED Indicator | Dimensions (W x H x D) | 17.7 x 6.9 x 14.7" / 45.0 x 17.5 x 37.3 cm | | Package Weight | 35.0 lb | Box Dimensions (LxWxH) | 23.0 x 20.0 x 11.0" |
