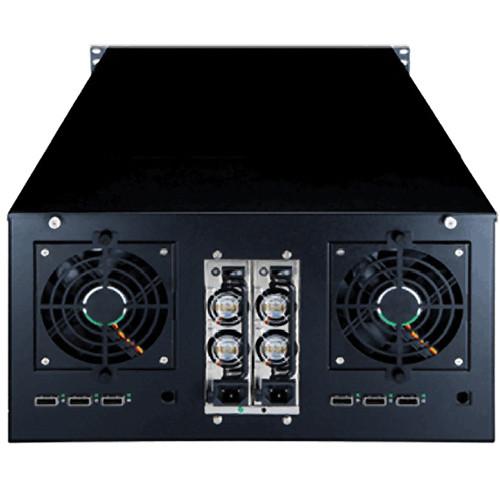

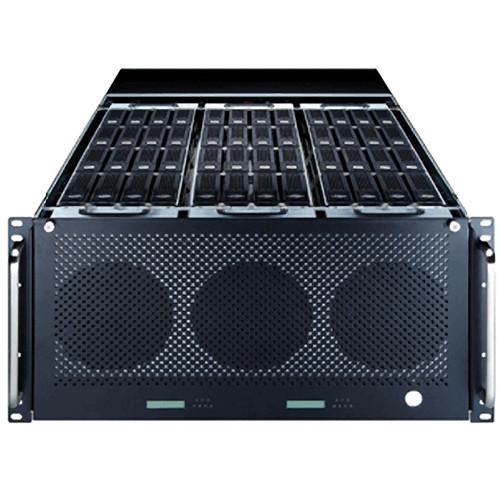

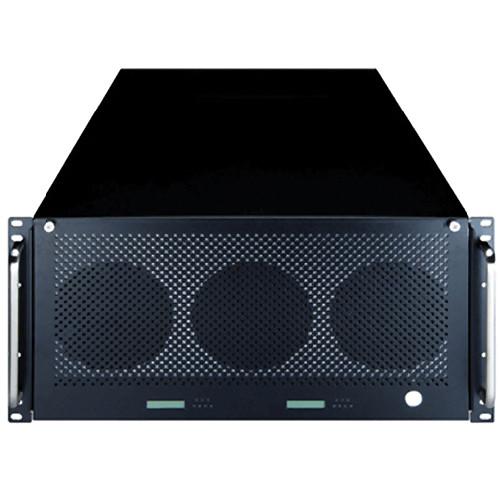

User Manual for Dynapower USA 48-Bay 5U Netstor SAS to SAS SATA JBOD Storage Enclosure Click to enlarge the picture
Contents of the user manual for the Dynapower USA 48-Bay 5U Netstor SAS
- Product category: Hard Drive Enclosures & Docks Dynapower USA
- Brand: Dynapower USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynapower USA Hard Drive Enclosures & Docks
 |
User manual for the Dynapower USA 48-Bay 5U Netstor SAS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynapower USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynapower USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynapower USA product will considerably shorten its lifespan!
|
Product description The 48-Bay 5U Netstor SAS to SAS/SATA JBOD Storage Enclosure from Dynapower USA is a high-density storage enclosure designed for HPC (High-Performance Computing) application of mass capacity storage. It significantly and effectively saves the cost for spaces needed within the 19" (48.3) rack and the cabinet room. It adopts 80 plus redundant power supply, which efficiently supplies power to the enclosure and ensures a lower budget for the maintenance of the arrays of mass capacity storage. The Storage Enclosure is built with the latest 6 Gb/s SAS expansion technology that makes 6 Gb/s SAS/SATA 3.5" hard disk drives available to the enclosure. Therefore, both high-density and high-performance features are presented through the 48-bay rack mount storage. The innovative SAS expansion technology makes each SAS host RAID card capable to support up to 128 hard drives. In addition, the technology allows the enclosure to support SES-2 protocols for host management of cascaded external enclosures. It is provided with 48 hot-swappable hard disk drive trays, each built with an HDD failure LED indicator to let you avoid pulling out the wrong drives that lead to loss of data stored on the RAID volumes. The high-density 48-bay rack mount storage provides excellent enclosure management covering and monitoring all components and audible/visual alerts for fan, power supply failures and over-temperature. The LCD displays are placed in front of the enclosure to immediately provide you the status of all units. The built-in 8 large 4.7 x 4.7 x 1.0" (120 x 120 x 25mm) cooling fans provide best airflow ventilation for drives while maintaining low sound volume, thus eliminating the noise resulting from the cabinet room. - High-density 5U 48-bay rack mount chassis
- Backplane design for up to 48 3.5" SAS/SATA 6G/3 Gb/s drives
- Built- in latest 6 Gb/s SAS expander for single MiniSAS (sff8088) cable connectivity
- Provides MiniSAS ports for next storage expansion
- SAS daisy chain for up to 128 hard disk drives
- LCD control panel for setup, alarm mute and configuration
- 8 big 5.0 x 4.7 x 1.0" (120 x 120 x 25mm) cooling fans for superior enclosure ventilation
- Individual key lock of each hard disk drive tray for physical security
- 48 hot-swappable hard drive trays with LED indicators for HDD power, activity and failure
In the Box Dynapower USA 48-Bay 5U Netstor SAS to SAS/SATA JBOD Storage Enclosure 2 x Power Cord Manual CD-ROM 192 x Hard Disk Drive Mounting Screw 2 x Key for HDD Tray Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA 48-Bay 5U Netstor SAS to SAS SATA JBOD Storage Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA NS390S-8026 Specs | Number of Bays | 48 x 3.5" | | Connections | 2 x Mini SAS (SFF-8088) (SAS-2 (6 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA II | | | | Power Source | Internal Power Supply | | PSU Wattage | 2 x 800 W (Supports Redundancy) | | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | | | Operating Temperature | -14 to 122°F / -10 to 50°C | | Operating Humidity | 20 to 80% | | Storage Temperature | 32 to 104°F / 0 to 40°C | | | | Material of Construction | Steel | | Cooling | 8 x 120 mm Fans | | Status Monitoring | LCD Screen, LED Indicator | | Dimensions (W x H x D) | 17.3 x 9.0 x 31.1" / 440.0 x 229.0 x 790.0 mm |
