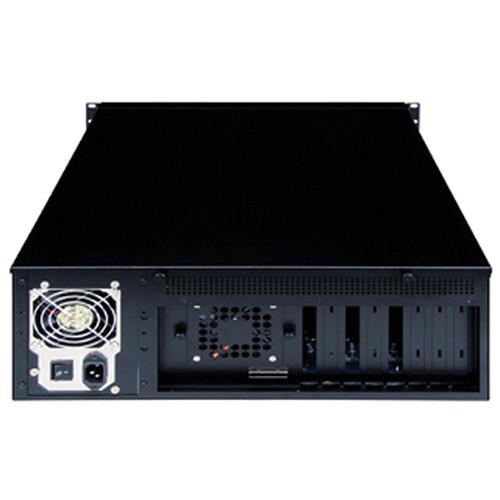

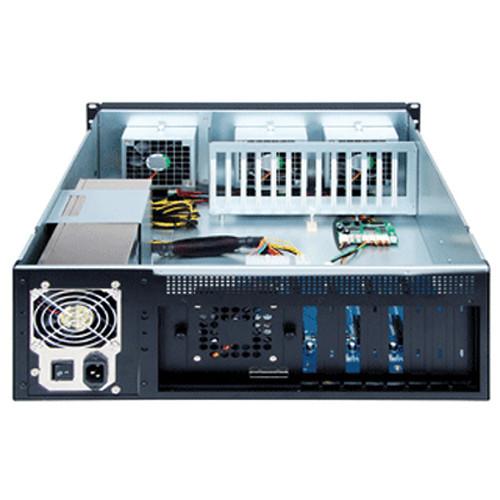

User Manual for Dynapower USA Netstor 4U Rack Mount Expansion Chassis with 1350W Redundant Power Supply Click to enlarge the picture
Contents of the user manual for the Dynapower USA Netstor 4U Rack Mount
- Product category: Expansion Chassis Dynapower USA
- Brand: Dynapower USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynapower USA Expansion Chassis
 |
User manual for the Dynapower USA Netstor 4U Rack Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynapower USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynapower USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynapower USA product will considerably shorten its lifespan!
|
Product description The Netstor 4U Rack Mount Expansion Chassis with 1350W Redundant Power Supply from Dynapower USA is a professional 19" rack mount PCIe Gen3 GPU enclosure that features ultra-high flexibility to expand the I/O capabilities of a host PC, server or workstation. It provides four PCIe 3.0 ×16 slots and two PCIe 3.0 ×4 slots (optional) on backplane for accommodating all combinations of PCIe Gen3 ×1, ×4, ×8 and ×16 cards or multiple high-performance GPU cards, while maintaining backwards compatibility with PCIe Gen2 applications in the HPC field. The enclosure turns a server or workstation into a supercomputer for running GPU-accelerated programs, dramatically enhancing performance up to ten times beyond the capabilities of the present-day multi-core CPU technology. The professional enclosure features PCIe 3.0 × 16 host cards and a PCIe 3.0 data cable, providing up to 128 Gbps extremely high-speed data transfer rates between the host and GPU enclosure for high-performance applications in supercomputing, simulation and video post-production. It allows multiple PCIe Gen3 GPU cards, RAID controller cards, FPGA cards and audio/video accelerator cards to work with the server or workstation. The enclosure is designed to work with mission-critical tasks in the fields of high-performance computing, telecommunication, data analysis, surveillance, storage and so on. This enclosure provides dedicated sufficient power supply with additional eight 6+2 pin PCIe power connectors particularly for up to 4 double-width GPU cards for HPC. The patented, dedicated ventilation design and big cooling fans offer excellent ventilation for GPUs, totally relieving the heat loading of server or workstation. With this PCIe GPU expansion rack mountable enclosure, even the space-limited 1U or 2U server can be transformed into a high-performance computer for applications including digital content creation, medical research, financial simulation, 3D seismic interpretation, gene sequencing and more. Work is performed faster and more efficiently, meaning quick results as well as increased energy savings compared to running on CPUs alone. - Extremely fast 128 Gbps PCIe 3.0 x16 host connectivity
- Solid heavy-duty cold-rolled steel housing
- Dedicated server-grade power supply for GPU usage
- Three adjustable cooling fans for self-contained ventilation
- Connect up to four dual-slot GPU cards
- Environmental monitoring with power/fan/temp LEDs and a mutable buzzer alarm
UPC: 696726265016 In the Box Dynapower USA Netstor 4U Rack Mount Expansion Chassis with 1350W Redundant Power Supply PCIe 3.0 x16 Host Adapter (Full Height and Half Length) 2 x PCIe 3.0 x8 Cables (1.5m) Power Cord CD-ROM User Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA Netstor 4U Rack Mount Expansion Chassis with 1350W Redundant Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA NA265A Specs | | | Expansion Slots | 4 x PCIe 3.0 x16 (x8 mode)
2 x PCIe 3.0 x4 (x4 mode) | | Host Connection | PCIe 3.0 x16 Slot | | | | Power Source Type | 1350 W Internal PSU (Redundant) | | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | | | Form Factor | Rackmount (4 RU) | | Construction Material | Steel | | Audible Alarm | Yes | | Status Monitoring | LED Indicator | | Dimensions | 19.0 x 7.0 x 17.6" / 482.0 x 177.0 x 448.0 mm | | | | Package Weight | 48.65 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 13.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
