User Manual for Dynapower USA Netstor NA250A-PRO 4-Slot PCIe 3.0 Expansion Box Click to enlarge the picture
Contents of the user manual for the Dynapower USA Netstor NA250A-PRO 4-Slot PCIe
- Product category: Expansion Chassis Dynapower USA
- Brand: Dynapower USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynapower USA Expansion Chassis
 |
User manual for the Dynapower USA Netstor NA250A-PRO 4-Slot PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynapower USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynapower USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynapower USA product will considerably shorten its lifespan!
|

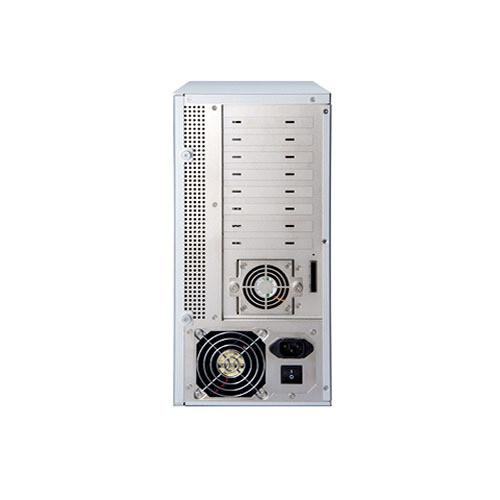

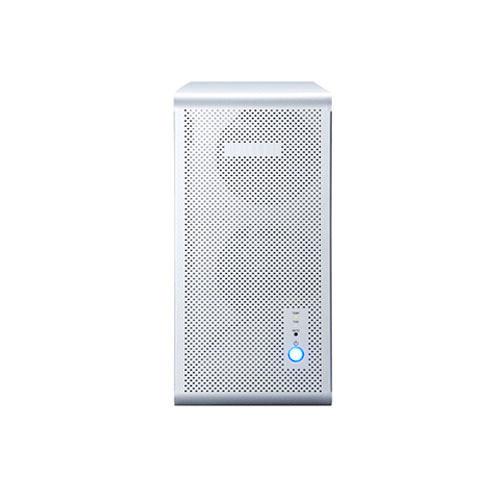

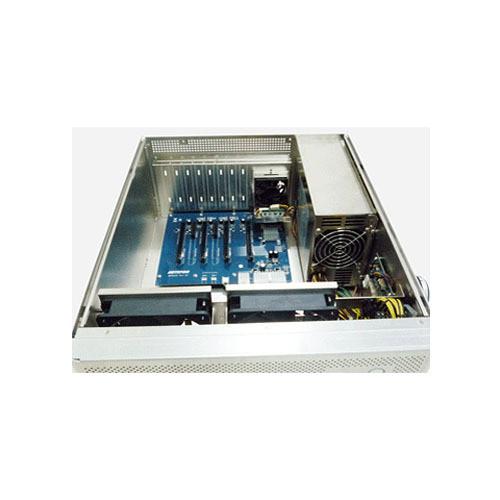

Product description The Netstor NA250A-PRO 4-Slot PCIe 3.0 Expansion Box from Dynapower USA comes with simple plug-and-play capabilities to deliver four PCIe 3.0 slots for your system. It includes a PCIe 3.0 x8 host card and a data cable to create a 64 Gbps connection between the workstation and NA250A-PRO expansion box. Once the host card is installed inside the computer and connected, the NA250A-PRO is automatically configured by the BIOS of the workstation or server, making all the PCIe slots accessible to the system. The PCIe 3.0 slots in the expansion box are compatible with x1, x4, x8, and x16 half-length or full-length PCIe cards.
The NA250A-PRO expansion box renders flexibility to expand the I/O capabilities of a workstation or server. It features four PCIe 3.0 x8 (x16 connector) slots and comes with eight L-shape metal brackets and four slots on the back panel to support up to four double-width expansion cards. This combination of features lets you add GPU cards to a system with limited PCIe card support. In addition, the workstation or servers' configuration is maintained with increased capacity and scalability for PCIe I/O capabilities.
The NA250A-PRO is suitable for video-editing professionals and developers for improving the performance of intensive GPU functions. It provides a low-cost PCIe expansion system for upgrading a system's GPU performance. The benefits of GPU computing can be applied in various areas including digital content creation, medical research, MotionDSP, financial simulation, 3D seismic interpretation, molecular modeling, 3D Ultrasound TechniScan, gene sequencing, weather modeling, and astrophysics. This is very cost effective when adding PCIe cards to a workstation or server, especially PCIe GPU cards that make most graphics applications run faster. - The Expansion Box has a high speed of 64 Gbps with a PCIe 3.0 x8 host connectivity.
- Its solid metal structure with stylish aluminum makes the Expansion Box a secure system.
- The TurboBox has a server grade dedicated single 400 W power supply.
- The Expansion Box includes two silent front fans and one rear hot-swappable fan.
- The NA250A PCIe-to-PCIe expansion system features easy plug-and-play installation.
- You can connect up to four dual-slot GPU cards.
- The Expansion Box features Environmental Monitoring with power/fan/temperature LEDs and a mutable buzzer alarm.
- It is suitable for video editing professionals and developers for improving the performance of GPU intensive applications.
UPC: 696726250012 In the Box Dynapower USA Netstor NA250A-PRO 4-Slot PCIe 3.0 Expansion Box PCIe 3.0 x8 Host Adapter with Standard and Low-Profile Bracket PCIe 3.0 x8 Cable - 4.92' (1.5 m) Long Power Cord CD User Manual 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA Netstor NA250A-PRO 4-Slot PCIe 3.0 Expansion Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA NA250A Specs | | | Expansion Slots | 4 x PCIe 3.0 x16 (x8 mode) | | Host Connection | PCIe 3.0 x8 Slot | | | | Power Source Type | 400 W Internal PSU | | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | | | Form Factor | Desktop | | Construction Material | Aluminum | | Audible Alarm | Yes | | Status Monitoring | LED Indicator | | Dimensions | 17.7 x 14.7 x 6.9" / 449.6 x 373.4 x 175.3 mm | | | | Package Weight | 25.95 lb | | Box Dimensions (LxWxH) | 23.3 x 19.1 x 10.1" |
