User Manual for Dynapower USA Netstor NA250A TurboBox PCI Express Expansion Box with Extra Power Connector Click to enlarge the picture
Contents of the user manual for the Dynapower USA Netstor NA250A TurboBox PCI
- Product category: Expansion Chassis Dynapower USA
- Brand: Dynapower USA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dynapower USA Expansion Chassis
 |
User manual for the Dynapower USA Netstor NA250A TurboBox PCI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dynapower USA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dynapower USA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dynapower USA product will considerably shorten its lifespan!
|

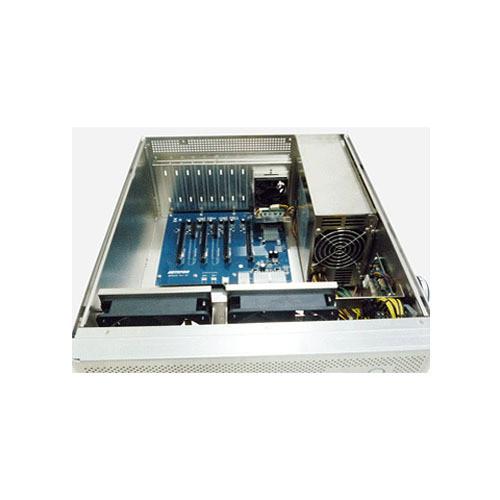

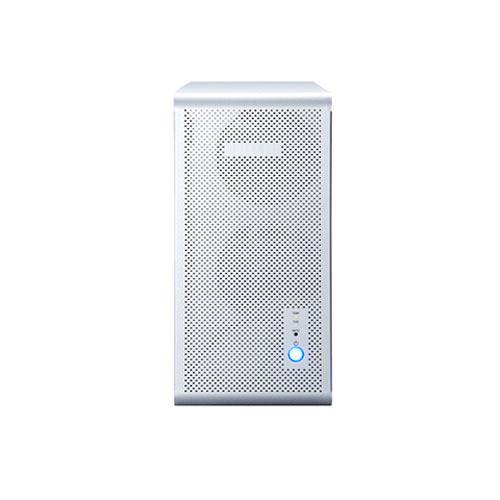

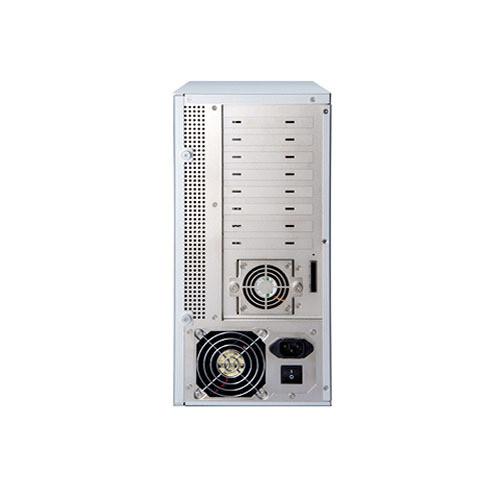

Product description The Netstor NA250A TurboBox PCI Express Expansion Box with Extra Power Connector from Dynapower USA is a PCIe to PCIe expansion system with simple plug and play installation. It contains PCIe 2.0 x8 host card and a data cable for up to 40 Gbps high speed transfer. The NA250A is automatically configured by the BIOS of the workstation or server, making all the PCIe slots accessible to the workstation or server. The PCIe slots on the NA250A supports any combination of ×1, ×4, ×8 and ×16 half length or full length PCIe cards.The NA250A Expansion Box renders flexibility to expand the I/O capabilities of a workstation or server. It come with six PCIe slots on the circuit boards. There are four slots that allow double width PCIe cards to be installed and a total of eight L-Shape metal brackets on the rear panel of the enclosure. You can add GPU cards to workstation or server with limited PCIe card space resulting in large savings. In addition, the workstation or servers' configuration is maintained with increased capacity and scalability for PCIe I/O capabilities.It is ideal for video editing professionals and developers for improving the performance of GPU intensive functions. The NA250A provides a low-cost PCIe expansion system for upgrading the GPU performance. The benefits of GPU computing can be applied in various areas including digital content creation, medical research, MotionDSP, financial simulation, 3D seismic interpretation, molecular modeling, 3D Ultrasound TechniScan, gene sequencing, weather modeling and astrophysics. This is very cost effective when adding PCIe cards to a workstation or server, especially PCIe GPU cards that make most graphics applications faster without the addition of an expensive GPU workstation. - The Expansion Box has a high speed of 40 Gbps with a PCIe 2.0 x8 host connectivity.
- Its solid metal structure with stylish aluminum that makes the Expansion Box a secure system.
- The TurboBox has a server grade dedicated single 1000 W power supply.
- The Expansion Box includes two silent front fans and one rear hot-swappable fan.
- The NA250A PCIe to PCIe expansion system features easy plug and play installation.
- You can connect up to four dual slot GPU cards.
- The Expansion Box features Environmental Monitoring with power/fan/temperature LEDs and a mutable buzzer alarm.
- It is ideal for video editing professionals and developers for improving the performance of GPU intensive applications.
UPC: 696726250036 In the Box Dynapower USA Netstor NA250A TurboBox PCI Express Expansion Box with Extra Power Connector PCIe 2.0 x8 Host Adapter with Standard and Low Profile Bracket PCIe 2.0 x8 Cable - 4.92' (1.5 m) Long Power Cord CD User Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dynapower USA Netstor NA250A TurboBox PCI Express Expansion Box with Extra Power Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDynapower USA NA250A Specs | | | Expansion Slots | 4 x PCIe 2.0 x16 (x8 mode)
2 x PCIe 2.0 x4 (x4 mode) | | Host Connection | PCIe 2.0 x8 Slot | | | | Power Source Type | 1000 W Internal PSU | | PCIe Connectors | 8 x 6+2-Pin | | AC Input Power | 90 to 230 VAC, 50 / 60 Hz | | | | Form Factor | Desktop | | Construction Material | Aluminum | | Audible Alarm | Yes | | Status Monitoring | LED Indicator | | Dimensions | 17.7 x 14.7 x 6.9" / 449.6 x 373.4 x 175.3 mm | | | | Package Weight | 28.55 lb | | Box Dimensions (LxWxH) | 23.4 x 20.0 x 10.3" |
